emec Viton suction lance with 122cm immersion length (LASP4) - M12 plug for connection to Prisma pump
Product number: 896306
€125.00*
Please log in to receive your conditions.
Available in 21 days, delivery time 1-2 days
Product number:
896306
GTIN:
4260682387868
Our comment:
We would be pleased to offer you further variants of the suction lances. You will find the operating instructions in the download area and the data sheet at the end of the product description as a download link.
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.

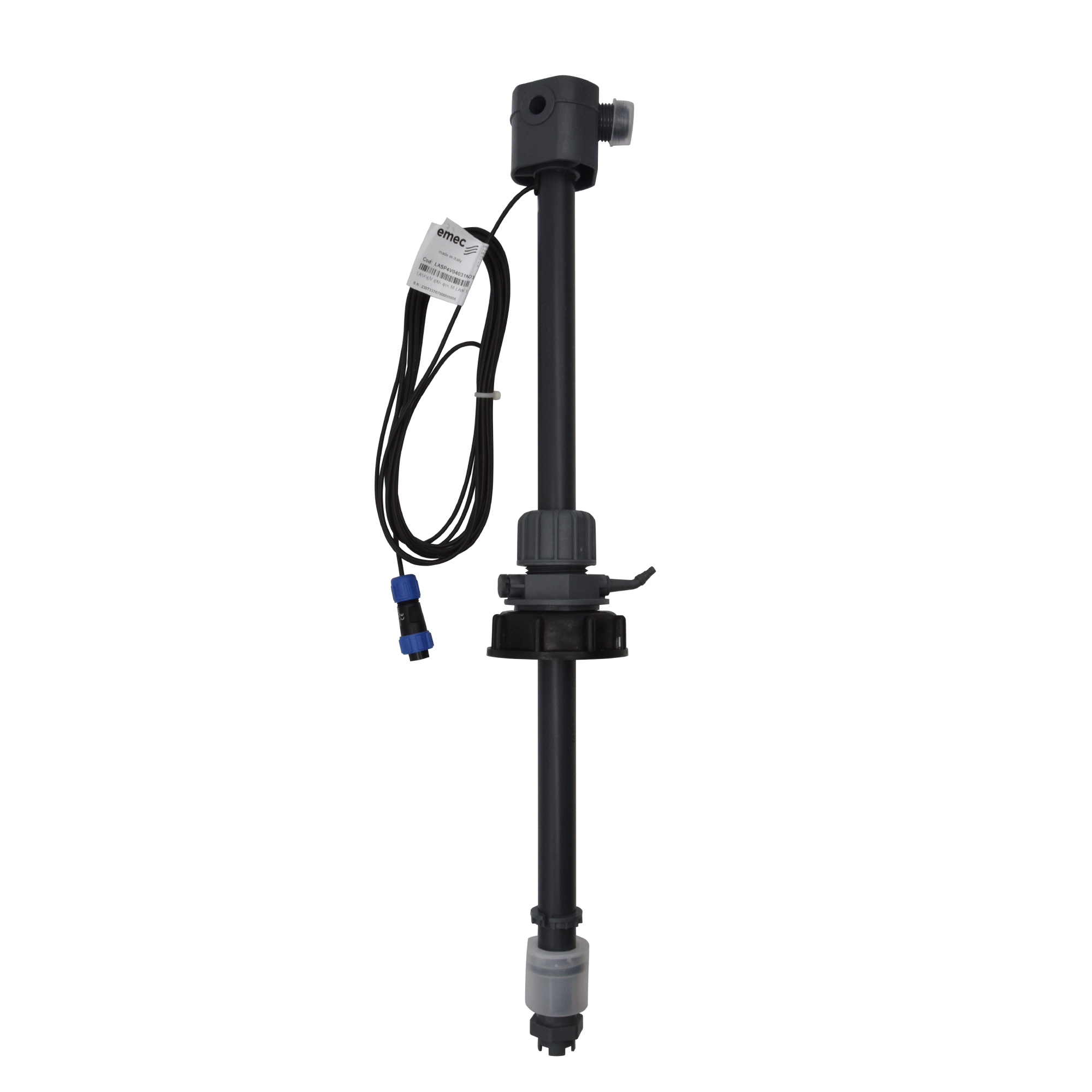

Product information "emec Viton suction lance with 122cm immersion length (LASP4) - M12 plug for connection to Prisma pump"
Suction lance for extracting a medium directly from a supply container (canister/IBC/CNT tank/barrel)
Foot valve with pre-filter and non-return valve. The level switch generates a digital empty signal. Venting nipple 4mm for return of venting hose from dosing pump or overpressure/multifunction valve.
Our suction lances can be adjusted in height, this means that, for example, instead of pumping from a 50 litre container, you can also pump from a 10, 20 or 30 litre container with the 40cm suction lance.
Series: LASP4
- Material O-ring: EPDM (neutral) or FP (Viton)
- Immersion length: 40cm, 75cm or 122cm
- Connection on the unit side: M12 or BNC
- Thread/hose connection (mm): 1/2 4x6 (suction capacity max 10l/h)
- Number of suction connections: 1-suction connection
- Mounting connection: C61 canister connection (for 40cm suction lance) or mounting connection 1 1/2" CNT/IBC (for 122cm suction lance)
- Number of floats/switching direction/electrical connection: 1st level/N.O/M12(PRIUS/PRISMA)
- Length of connection cable: 3.5m
- Intake filter: LASP4
- Special feature: Valve ball ceramic
Dimensions
| Height | 10,5 cm |
|---|---|
| Length | 74 cm |
| Width | 11,5 cm |
Weight
| Weight | 710 g |
|---|
Other attributes
| Country of origin | IT |
|---|---|
| Customs tariff number | 84139100 |
