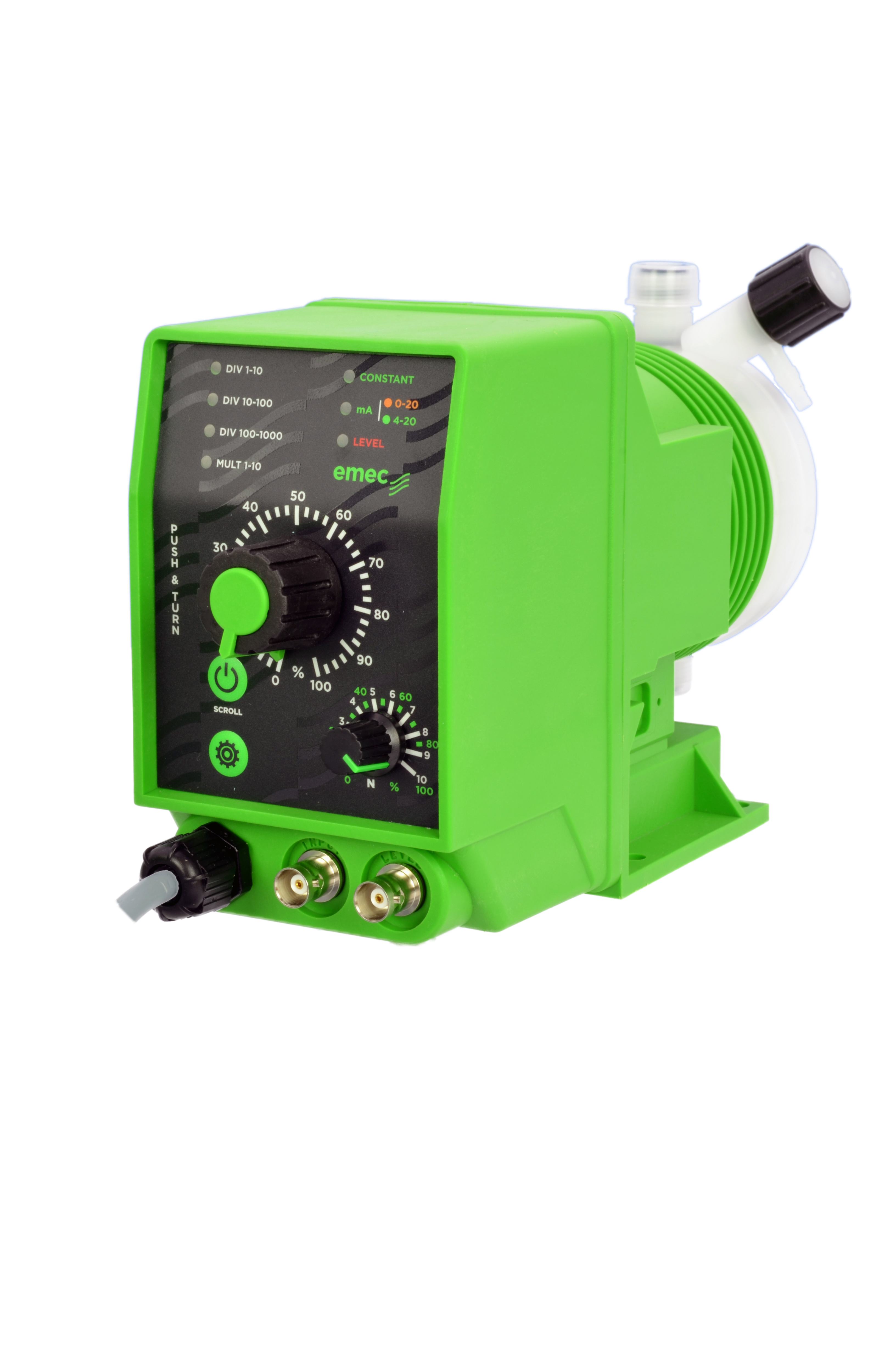

emec K-Plus dosing pump
Product number: 896829
€443.00*
Please log in to receive your conditions.
Available in 42 days, delivery time 1-2 days
Product number:
896829
GTIN:
4068823018660
Our comment:
A detailed explanation of the operating modes can be found in the operating instructions in the download area, where you will also find the product data sheet. You can easily access both documents via the link below the product text.
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.

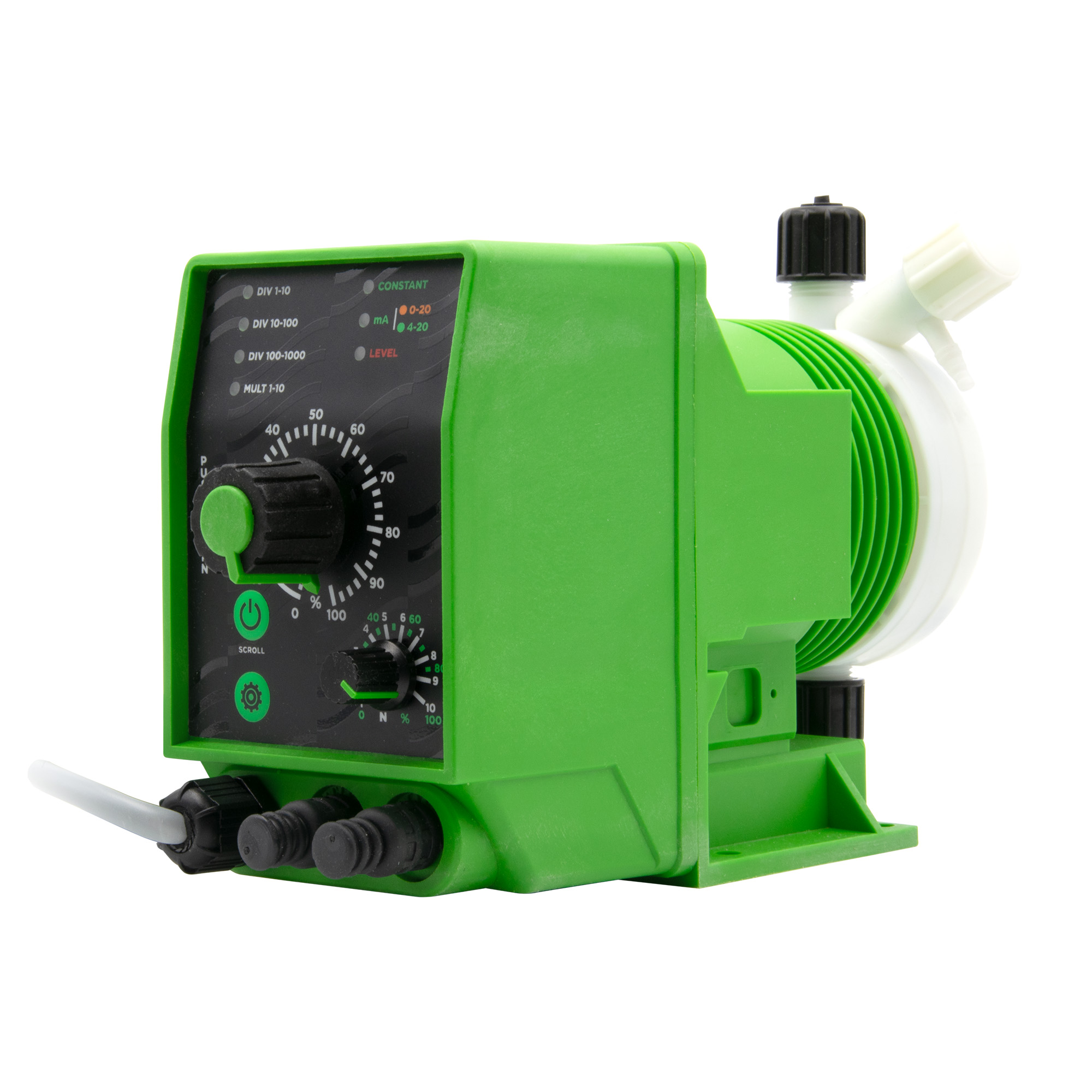

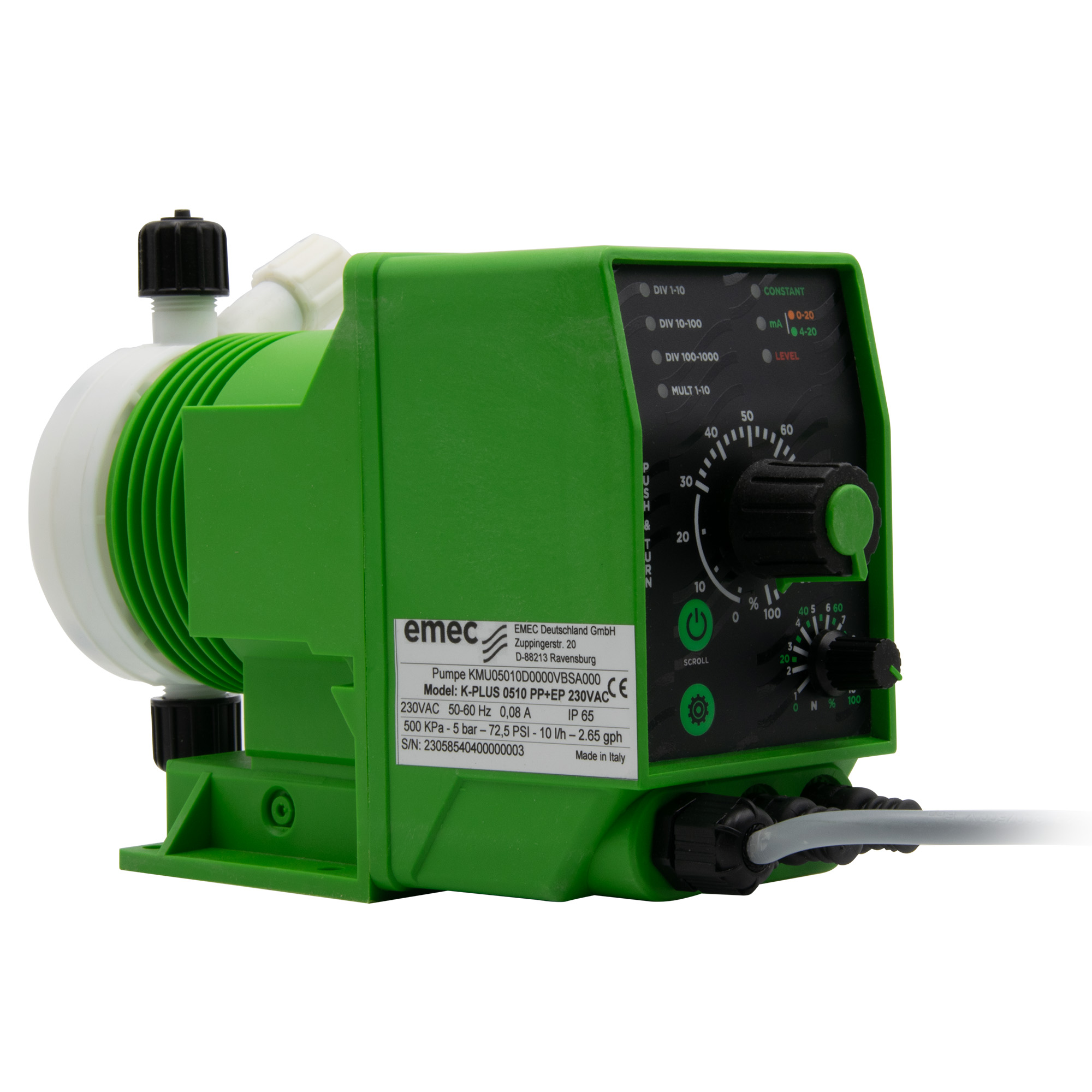

Product information "emec K-Plus dosing pump"
Solenoid-operated dosing pumps with horizontal mounting, cost-effective and particularly reliable. K pumps are designed for universal use and various industries.
The K series includes an MF version with multifunction software and an LPV version for viscous liquids. Also available with self-venting.
Features at a glance
- With universal input for contact pulse or 0/4+20 mA
- Stroke frequency proportional to input signal (0+180 imp/min)
- Universal input programmable as:
- Pulse divider 1/10, 10/100, 100/1000
- pulse multiplier 1*10
and then by means of rotary knob, infinitely adjustable
- Stroke length adjustment by means of rotary knob, stepless from 0...100%
- "LEVEL" connection for empty level switch
- "ALARM" relay output for empty signal (option)
Operating mode:
- Constant
- Proportional via pulse divider
Inputs:
- Level control (with pre-alarm)
- Digital signal
- Voltage signal
Output:
- Level alarm output

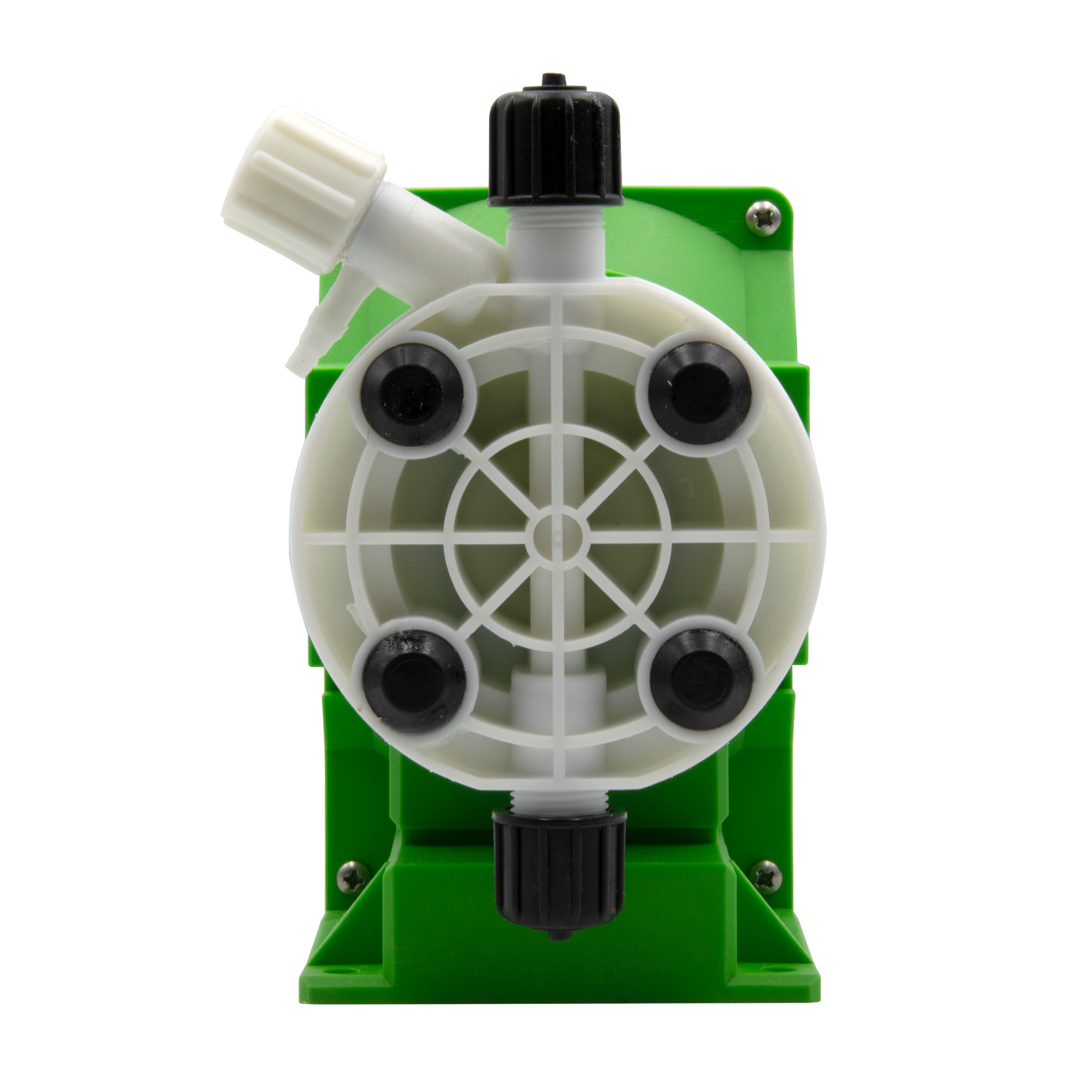

Hydraulic parts:
- PVDF
- PP
- stainless steel (AISI 316)
- Acrylic glass (PMMA)
- Check valves with double ball
- O-rings made of FKM B, EPDM, nitrile, PTFE
Diaphragm:
PTFE diaphragm
Accessories (selectable via the configurator)
Suction lances:
- emec Viton suction lance with 40cm immersion length (with BNC connection)
- emec Viton suction lance with 122cm immersion length (with BNC connection)
- emec EPDM suction lance with 40cm immersion length (with BNC connection)
- emec EPDM suction lance with 122cm immersion length (with BNC connection)
Included in delivery:

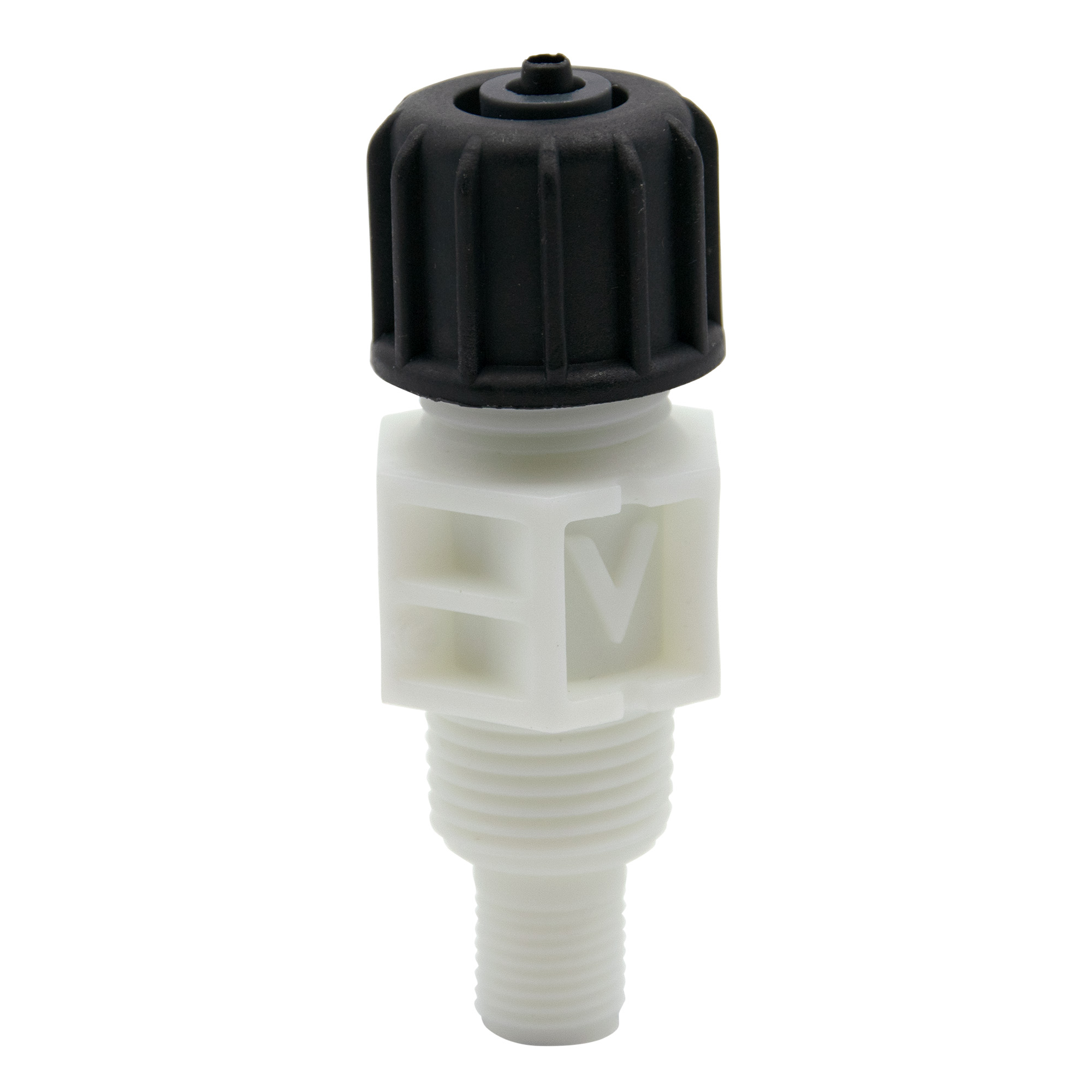

- Injection valve 1/2" - 4x6mm made of PVDF or PP, depending on the selected version
- Axial foot valve with empty level switch and 2.5m connection cable with BNC plug

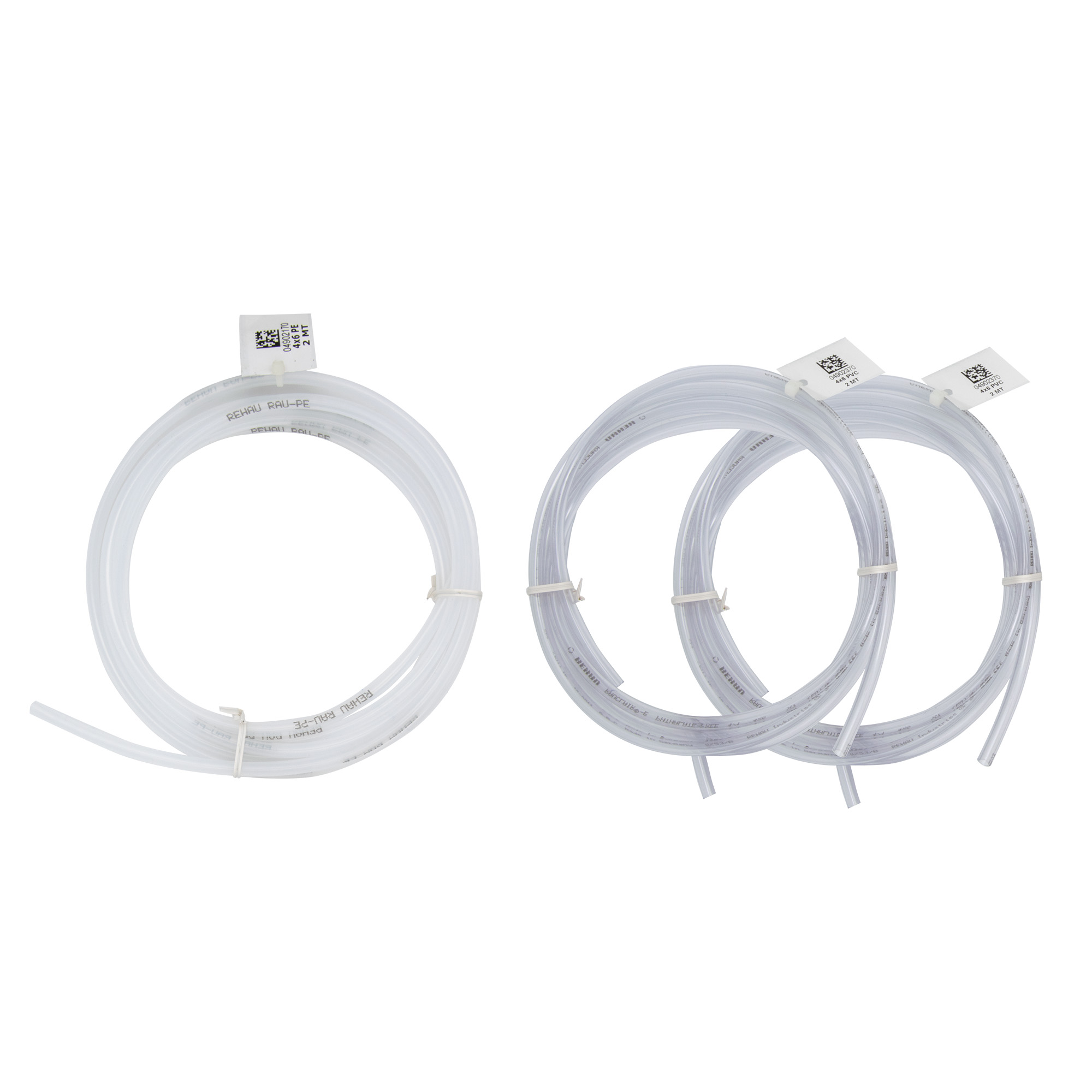

- 2m pressure hose made of PVDF (for PVDF head) or PE (for PP head), 4x6mm or 6x8mm* (depending on version, see technical data)
- 2m suction hose PVC transparent, 4x6mm, 6x8mm*, 8x10mm (depending on version, see technical data)
- 2m vent hose PVC transparent, 4x6mm
- 2.5m control cable RG174 with BNC plug
- Operating instructions
- 6 plugs with screws
- Fine-wire fuse 4x20mm

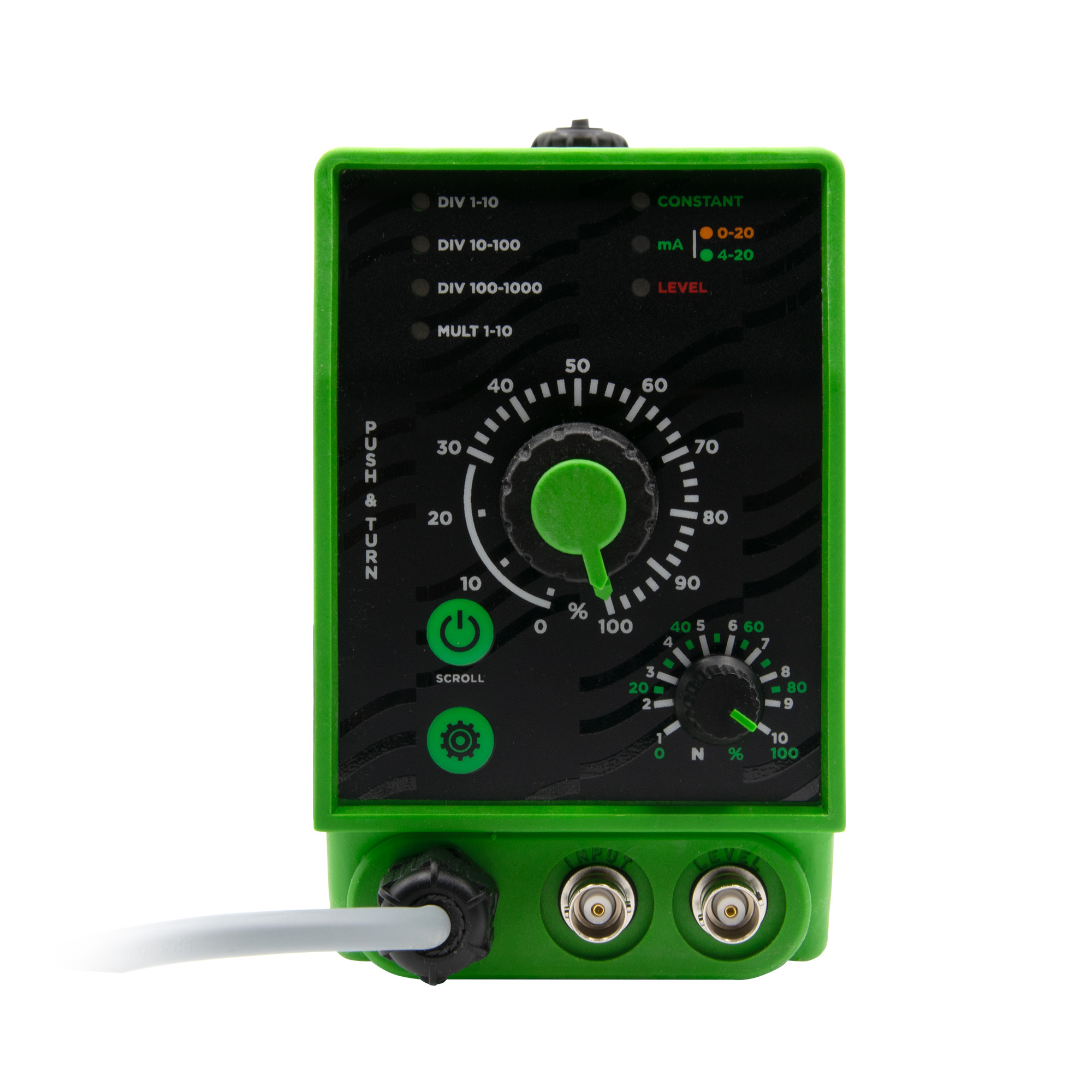

Mode/LED - each function
- CONSTANT - continuous operation with 1÷180 metering strokes per minute
- CONSTANT/DIV 1:10 - continuous operation with 1÷18 metering strokes per minute
- DIV 1:10 - Pulses coming from the "INPUT" connector are divided by the factor N = 1÷10 (adjustable with DK 2, grey scale)
- DIV 10:100 - Pulses coming from the "INPUT" connection are divided by a factor of 10÷100. With DK 2 (grey scale N = 1÷10) the factor can be set proportionally: N1 = /10 to N10 = /100
- DIV 100:1000 - Pulses coming from the "INPUT" connector are divided by a factor of 100÷1000. With DK 2 (grey scale N = 1÷10) the factor can be set proportionally: N1 = /100 to N10 = /1000
- MULT 1:10 - Pulses coming through the "INPUT" connector are multiplied by the factor N = 1÷10 (adjustable with DK 2, grey scale).
- mA - An analogue signal (0/4÷20 mA) coming from the "INPUT" connection generates dosing strokes according to the factor N = 1÷10 (adjustable with DK 2, grey scale).
Dimensions
| Height | 21,5 cm |
|---|---|
| Length | 32 cm |
| Width | 17,5 cm |
Weight
| Weight | 3,4 kg |
|---|
Other attributes
| Country of origin | IT |
|---|---|
| Customs tariff number | 84135040 |
Downloads:
Technical specifications
| DOSING PUMP TYPE | ||||||||
| MODEL | DOSING RATE | HUBVOLUME | DOSING HEAD | HOSE | VALVE | |||
| 1801 | 1 l/h - 18 bar | 0.1 | LA | 4 x 6 | 3/8" | |||
| 1503 | 3 l/h - 15 bar | 0.28 | LA | 4 x 6 | 3/8" | |||
| 103,5 | 3,5 l/h - 10 bar | 0.32 | LA | 4 x 6 | 3/8" | |||
| 100,5 | 0,5 l/h - 10 bar | 0.05 | IA | 4 x 6 | 3/8" | |||
| 085,5 | 5,5 l/h - 8 bar | 0.51 | LA | 4 x 6 | 3/8" | |||
| 057,5 | 7,5 l/h - 5 bar | 0.69 | LA | 4 x 6 | 3/8" | |||
| 0213 | 13 l/h - 2 bar | 1.2 | MA | 4 x 6 | 3/8" | |||
| HYDRAULIC COMPONENTS | ||||||||
| DOSING HEAD | O-RINGS | VALVES | MEMBRANE | HOSES | VISCOSITY | |||
| CORPUS | BULLETS | pressure side | suction side | max. CPS | ||||
| K | PVDF | Viton | PVDF | Ceramic | PTFE | PVDF | PVC | 100 |
| P | PVDF | EPDM | PVDF | Ceramic | PTFE | PVDF | PVC | 100 |
| Y | PVDF | Nitrile | PVDF | Ceramic | PTFE | PVDF | PVC | 100 |
| V | PP | Viton | PP | Ceramic | PTFE | PE | PVC | 100 |
| D | PP | EPDM | PP | Ceramic | PTFE | PE | PVC | 100 |
| W | PP | Nitrile | PP | Ceramic | PTFE | PE | PVC | 100 |
| J | PVDF | Viton+PTFE | PVDF | Ceramic | PTFE | PVDF | PVC | 100 |
| S | PVDF | Silicone | PVDF | Ceramic | PTFE | PVDF | PVC | 100 |
| A | PMMA | Viton | Polypropylene | Ceramic | PTFE | PE | PVC | 100 |
| $ | PMMA | Viton | Polypropylene | SS | PTFE | N/A | N/A | 8000 |
| Z | SS 316* | Viton | SS | SS | PTFE | N/A | N/A | 100 |
| * SS 316 corresponds to stainless steel Mat. 1.4436 | ||||||||
| POWER SUPPLY | ||||||||
| 00 | 230 VAC safety plug | |||||||
| 0S | 230 VAC plug Australia | |||||||
| 01 | 230 VAC without plug | |||||||
| 03 | 115 VAC plug US | |||||||
| 04 | 24 VAC without plug | |||||||
| 05 | 12 VDC** | |||||||
| 07 | 24 VDC | |||||||
| ** not suitable for all models | ||||||||
Recommended accessories
emec EPDM suction lance with 40cm immersion length (LASP4) - BNC plug for connection to K and VMS pumps
Product number:
896356
Connection cable version (unit side):
BNC connector (for K- pumps and VMS pumps)
|
Sealing material:
EPDM
|
Version:
40 cm immersion length

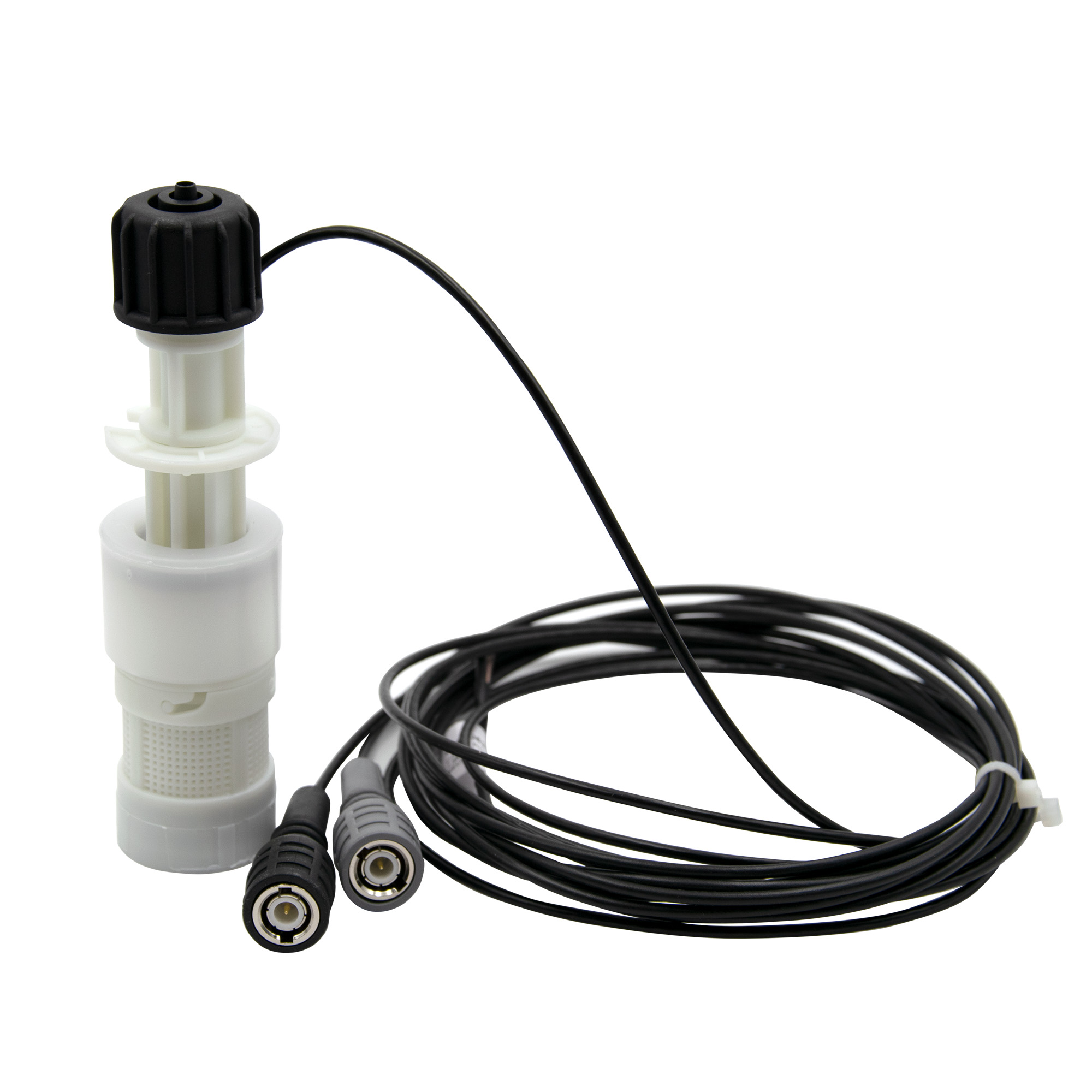

Suction lance for extracting a medium directly from a supply container (canister/IBC/CNT tank/barrel)Foot valve with pre-filter and non-return valve. The level switch generates a digital empty signal. Venting nipple 4mm for return of venting hose from dosing pump or overpressure/multifunction valve.Our suction lances can be adjusted in height, this means that, for example, instead of pumping from a 50 litre container, you can also pump from a 10, 20 or 30 litre container with the 40cm suction lance.Series: LASP4Material O-ring: EPDM (neutral) or FP (Viton)Immersion length: 40cm, 75cm or 122cmConnection on the unit side: M12 or BNCThread/hose connection (mm): 1/2 4x6 (suction capacity max 10l/h)Number of suction connections: 1-suction connectionMounting connection: C61 canister connection (for 40cm suction lance) or mounting connection 1 1/2" CNT/IBC (for 122cm suction lance)Number of floats/switching direction/electrical connection: 1st level/N.O/M12(PRIUS/PRISMA)Length of connection cable: 3.5mIntake filter: LASP4Special feature: Valve ball ceramic
