UVprofessional Pool medium pressure unit 247 m³/h
Price on request
Product information "UVprofessional Pool medium pressure unit 247 m³/h"
UV medium-pressure systems for water disinfection and the decomposition of organically bound chlorine (chloramines) in swimming pool water.
The cost-effective UV-C disinfection is excellently suited for swimming pool water, swimming pool attractions, fountains and pond systems. UV treatment does not introduce any unwanted by-products into the water that could lead to possible side effects such as skin or eye irritation. UV treatment provides supplementary protection against chlorine-resistant organisms and reduction of algae formation in swimming and garden ponds without endangering the animal and plant population of the pond facilities. UV disinfection in swimming pool attractions and fountains prevents bacteria from aerosols from being inhaled.

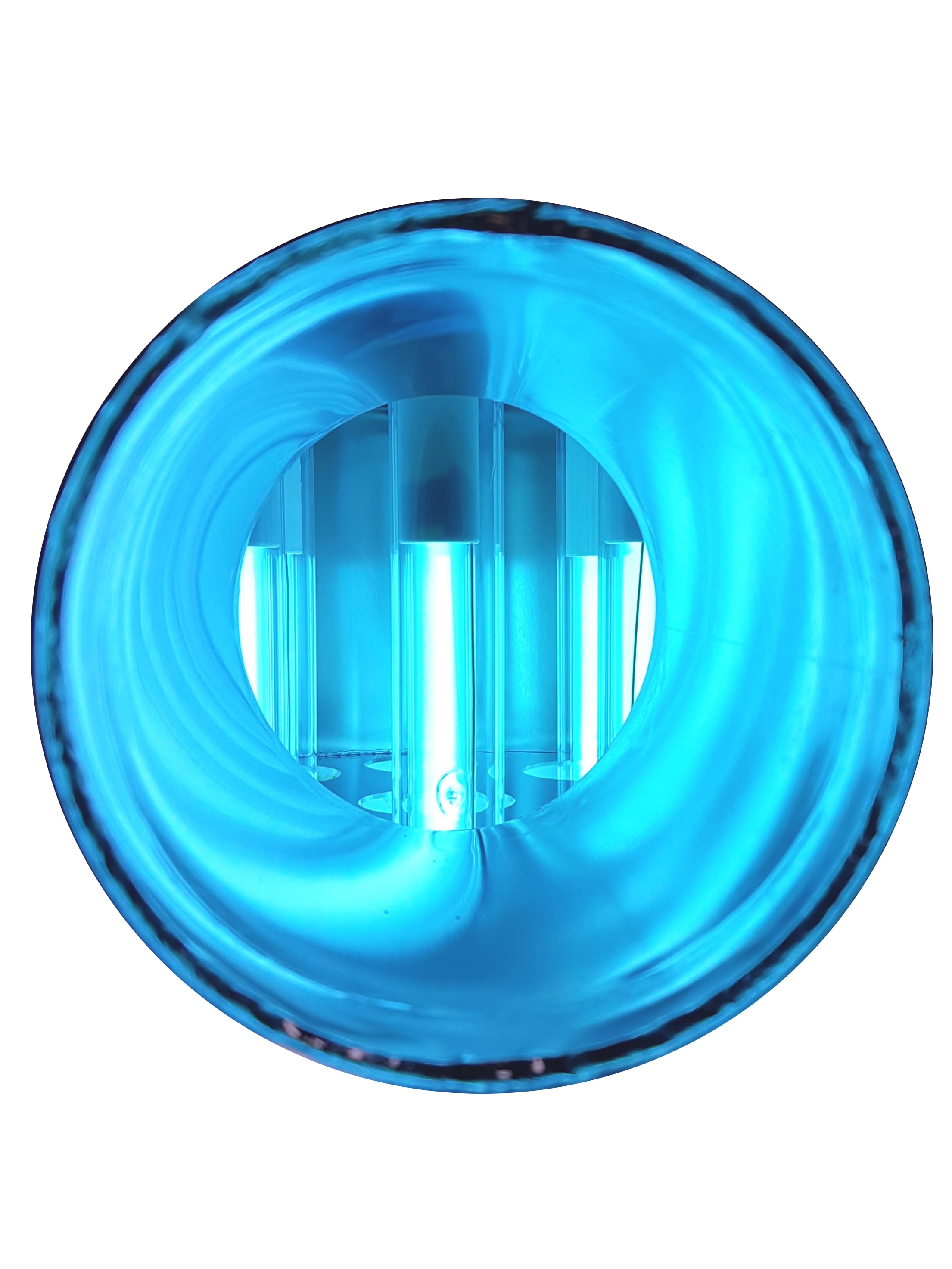

Stainless steel reactor (1.4571 DIN EN 10217-7, external electropolished) with flange connections according to DIN 2642, quartz immersion tube and UV medium pressure lamp, electronic ballast in sheet steel housing with multifunctional UV monitor with coloured background lighting, operating hours counter, manual/auto switch, power supply (3L, N, PE, 380/400V ±10%, 50/60 Hz) incl. UV monitoring system (ÖVGW / DVGW sensor), remote control input, temperature monitoring and signal outputs.
Other attributes
| Anwendungen | Swimming pool |
|---|---|
| Brand | Neomeris |
| Country of origin | EU |
| Customs tariff number | 84212100 |
| Pool MS 14 | Pool MS 24 | Pool MS 42 | Pool MS 131 | Pool MS 247 | |
| Flow rate m³/h at 600 J/m²: (Qmax at T1cm 98%) |
14 | 24 | 42 | 131 | 247 |
| Connection: | DN 65, PN10 | DN 65, PN10 | DN 65, PN10 | DN 150, PN10 | DN 200, PN10 |
| Reactor dimensions in mm LxW | 560 x 245 | 600 x 300 | 600 x 300 | 750 x 380 | 850 x 400 |
| UV lamp: | 1x 650 Watt | 1x 1000 Watt | 1x 2000 Watt | 1x 3000 Watt | 1x 5000 Watt |
| Power rating: | 650 Watt | 1100 Watt | 2000 Watt | 3000 Watt | 5000 Watt |
| Control cabinet material: | Steel sheet | ||||
| Dimensions in mm: | 500 x 500 x 300 | 600 x 380 x 350 | 600 x 380 x 350 | 600 x 380 x 350 | 600 x 380 x 350 |
