Ozonia Membrel MkV-S-3 - Electrolytic ozone generator, ozone output 3x 3-4 g/h, system unit
Product number: 850943
Price on request
Product number:
850943
GTIN:
4068823010930
Product information "Ozonia Membrel MkV-S-3 - Electrolytic ozone generator, ozone output 3x 3-4 g/h, system unit"
Ozonia* Membrel MkV ozone generation plant based on the catalytic water electrolysis process; suitable for sterilization and sanitization of ultrapure water in ring piping systems in the pharmaceutical and semiconductor industries
The plant consists of 1, 2 or 3 current-regulated electrolysis cells including electrode set (anode, cathode and solid electrolyte membrane) and an electric feeder.
- Ozone production per cell: 3-4 g/h
- Feed water flow per cell: nom. 100 l/h
- Feed water conductance: < 20 μS/cm
- Operating pressure: max. 6 bar
- Electrical power per cell: 460 W/ 230 VAC, 50-60 Hz
- Ozone power setting: 8-100%
- Control functions (floating): System ON/OFF; control and set point LOCAL/REMOTE supply ON/OFF /collective alarm
- Control function (4-20 mA): electrolysis current for ozone production

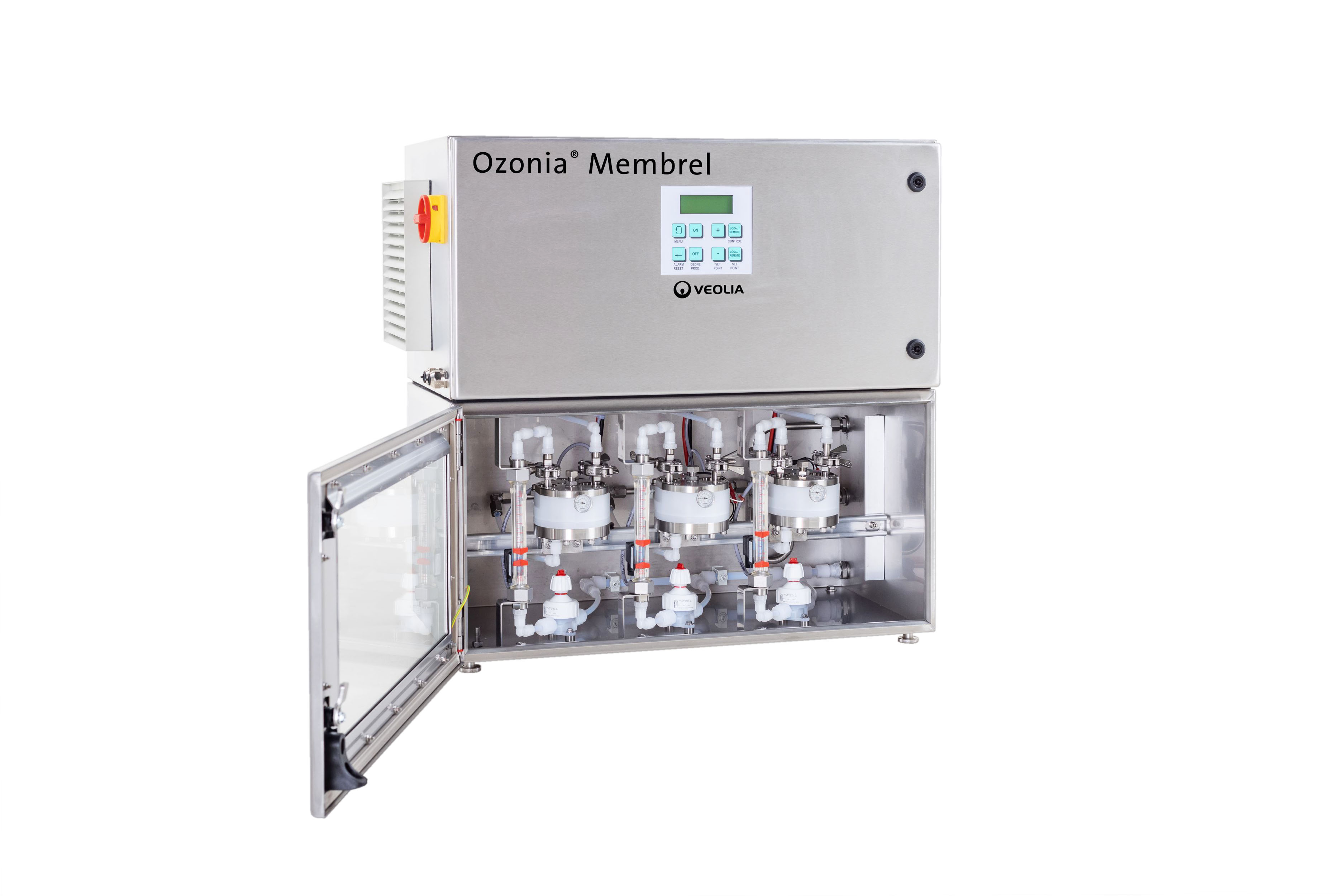

System plants MkV-S ready for operation and connection; consisting of:

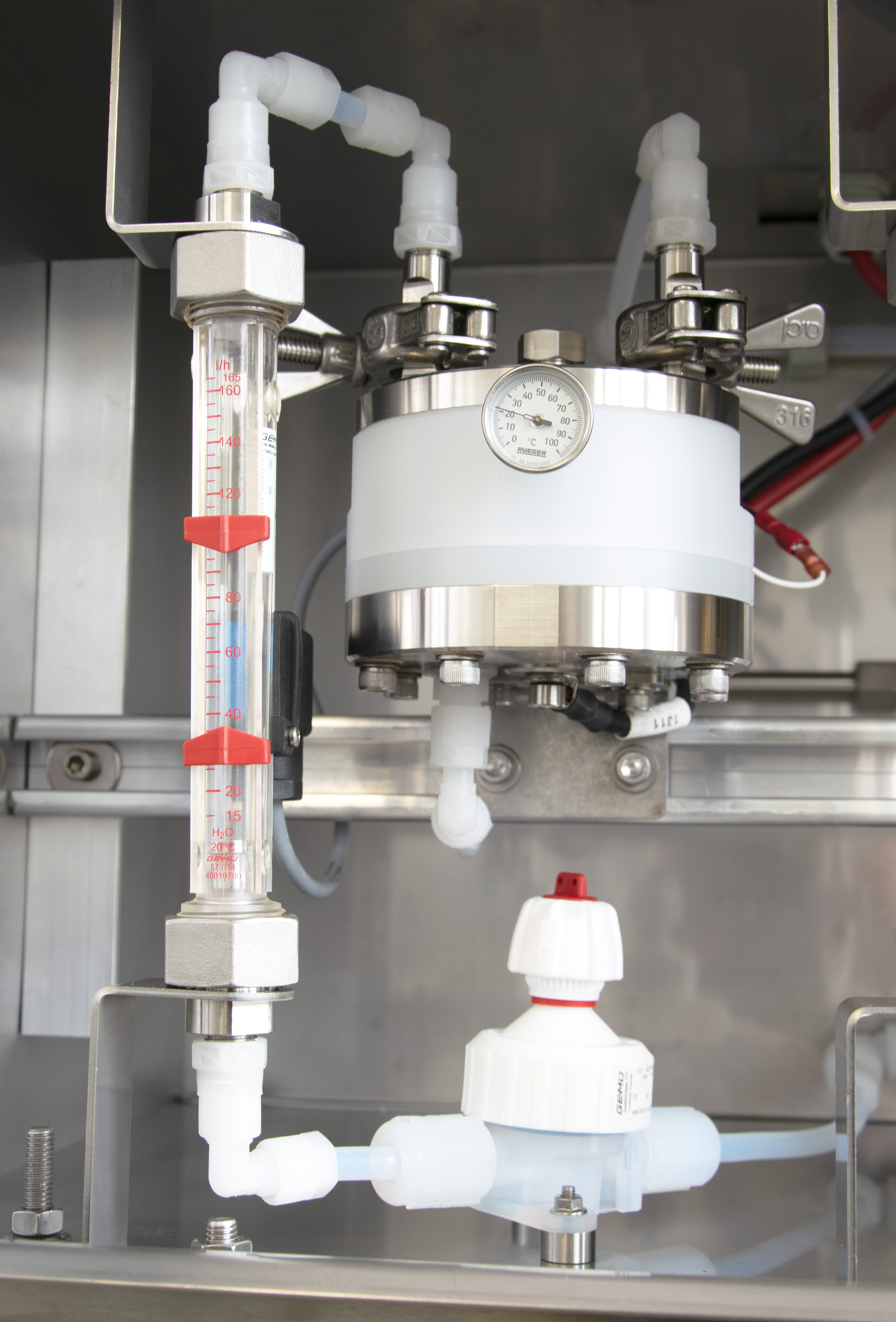

- Electrolysis cells made of PVDF / titanium / stainless steel (316L) internally piped incl. flow meter and control valve; with temperature and flow monitoring; installed in stainless steel housing IP54

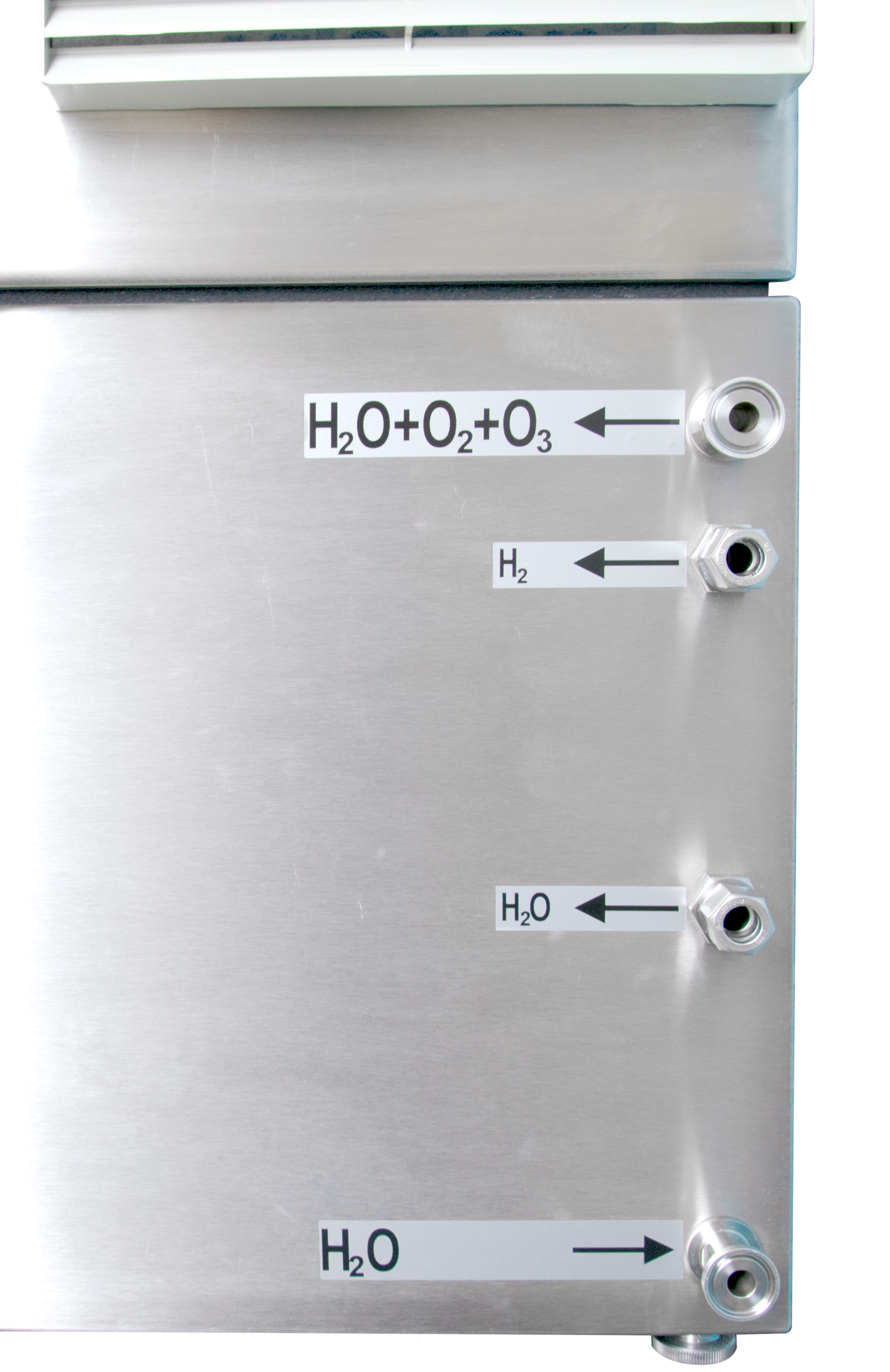

- Connections Feed water and ozone-strong water: TriClamp TC25 ID 10 mm n. DIN 32676-A
- Connections hydrogen and waste water: SERTO for pipe 10 x 1 mm
- Electrical supply unit with power supply, controller unit and emergency battery in IP 54 stainless steel housing, wired directly to electrolysis cell via connection cable
*Trademark of Veolia; may be registered in one or more countries.
Dimensions
| Height | 65 cm |
|---|---|
| Length | 87 cm |
| Width | 85 cm |
Weight
| Weight | 80 kg |
|---|
Other attributes
| Country of origin | CH |
|---|---|
| Customs tariff number | 85437090 |
