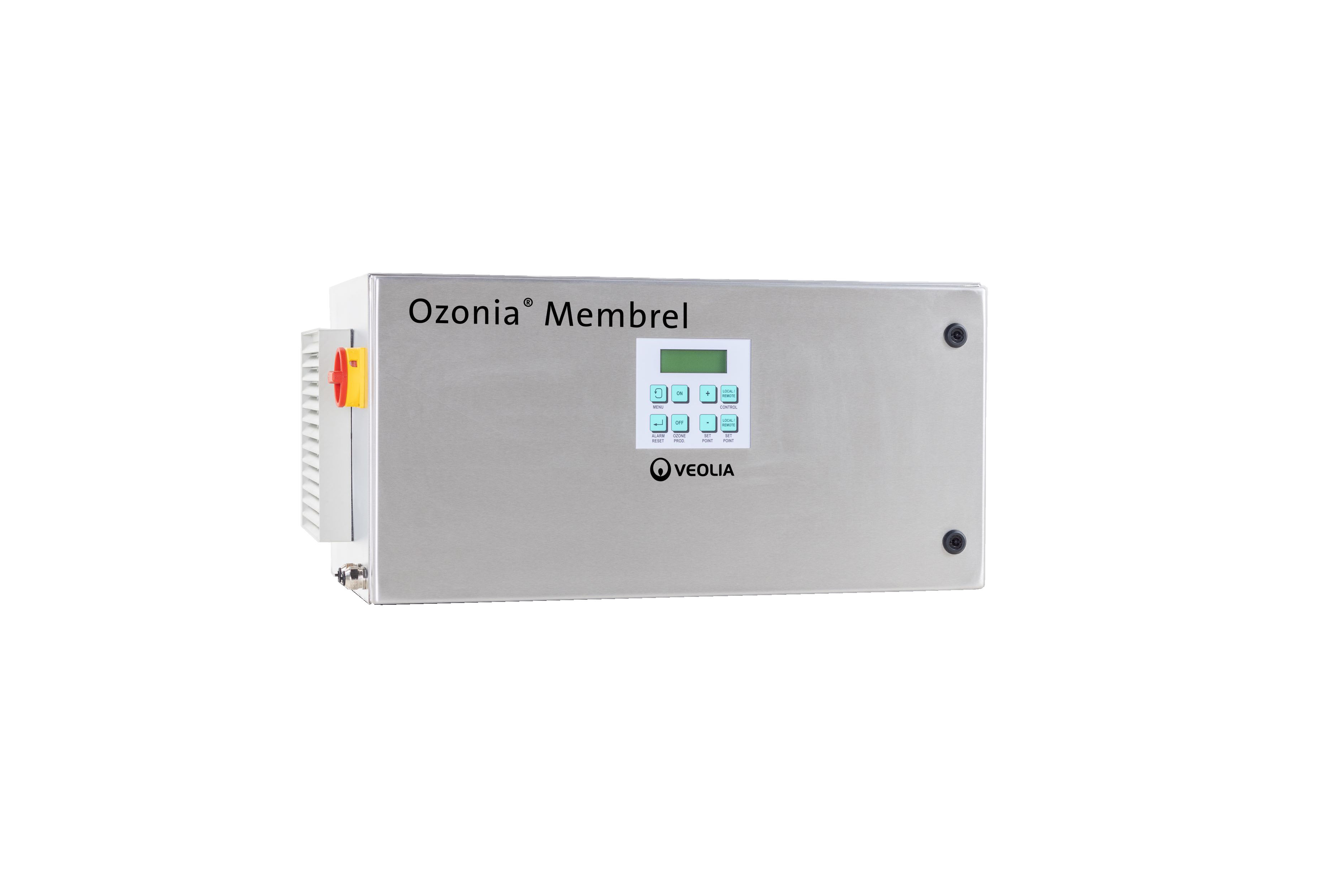

Ozonia* Membrel MkV ozone generation plant based on the catalytic water electrolysis process; suitable for sterilization and sanitization of ultrapure water in ring piping systems in the pharmaceutical and semiconductor industriesThe plant consists of 1, 2 or 3 current-regulated electrolysis cells including electrode set (anode, cathode and solid electrolyte membrane) and an electric feeder. Ozone production per cell: 3-4 g/h Feed water flow per cell: nom. 100 l/h Feed water conductance: < 20 μS/cm Operating pressure: max. 6 bar Electrical power per cell: 460 W/ 230 VAC, 50-60 Hz Ozone power setting: 8-100%Control functions (floating): System ON/OFF; control and set point LOCAL/REMOTE supply ON/OFF /collective alarm Control function (4-20 mA): electrolysis current for ozone production Component plant MkV-K consisting of: an electrolytic cell made of PVDF / titanium / stainless steel (316L) with temperature monitoring Connections feed water and ozone-strong water: TriClamp TC25 ID 6 mm n. DIN 32676-A Connections hydrogen and waste water: SERTO for pipe 10 x 1 mm for installation in the pipeline bypass (flow meter and control valve to be supplied by the customer) Electrical power supply unit with power supply, controller unit and emergency battery in IP 54 stainless steel housing, 0.50 m connection cable for electrolysis cells*Trademark of Veolia; may be registered in one or more countries.

Ozonia* Membrel MkV ozone generation plant based on the catalytic water electrolysis process; suitable for sterilization and sanitization of ultrapure water in ring piping systems in the pharmaceutical and semiconductor industriesThe plant consists of 1, 2 or 3 current-regulated electrolysis cells including electrode set (anode, cathode and solid electrolyte membrane) and an electric feeder. Ozone production per cell: 3-4 g/h Feed water flow per cell: nom. 100 l/h Feed water conductance: < 20 μS/cm Operating pressure: max. 6 bar Electrical power per cell: 460 W/ 230 VAC, 50-60 Hz Ozone power setting: 8-100%Control functions (floating): System ON/OFF; control and set point LOCAL/REMOTE supply ON/OFF /collective alarm Control function (4-20 mA): electrolysis current for ozone production Component plant MkV-K consisting of: two electrolytic cells made of PVDF / titanium / stainless steel (316L) with temperature monitoring Connections feed water and ozone-strong water: TriClamp TC25 ID 6 mm n. DIN 32676-A Connections hydrogen and waste water: SERTO for pipe 10 x 1 mm for installation in the pipeline bypass (flow meter and control valve to be supplied by the customer) Electrical power supply unit with power supply, controller unit and emergency battery in IP 54 stainless steel housing, 0.50 m connection cable for electrolysis cells*Trademark of Veolia; may be registered in one or more countries.

Ozonia* Membrel MkV ozone generation plant based on the catalytic water electrolysis process; suitable for sterilization and sanitization of ultrapure water in ring piping systems in the pharmaceutical and semiconductor industriesThe plant consists of 1, 2 or 3 current-regulated electrolysis cells including electrode set (anode, cathode and solid electrolyte membrane) and an electric feeder. Ozone production per cell: 3-4 g/h Feed water flow per cell: nom. 100 l/h Feed water conductance: < 20 μS/cm Operating pressure: max. 6 bar Electrical power per cell: 460 W/ 230 VAC, 50-60 Hz Ozone power setting: 8-100%Control functions (floating): System ON/OFF; control and set point LOCAL/REMOTE supply ON/OFF /collective alarm Control function (4-20 mA): electrolysis current for ozone production Component plant MkV-K consisting of: three electrolytic cells made of PVDF / titanium / stainless steel (316L) with temperature monitoring Connections feed water and ozone-strong water: TriClamp TC25 ID 6 mm n. DIN 32676-A Connections hydrogen and waste water: SERTO for pipe 10 x 1 mm for installation in the pipeline bypass (flow meter and control valve to be supplied by the customer) Electrical power supply unit with power supply, controller unit and emergency battery in IP 54 stainless steel housing, 0.50 m connection cable for electrolysis cells*Trademark of Veolia; may be registered in one or more countries.

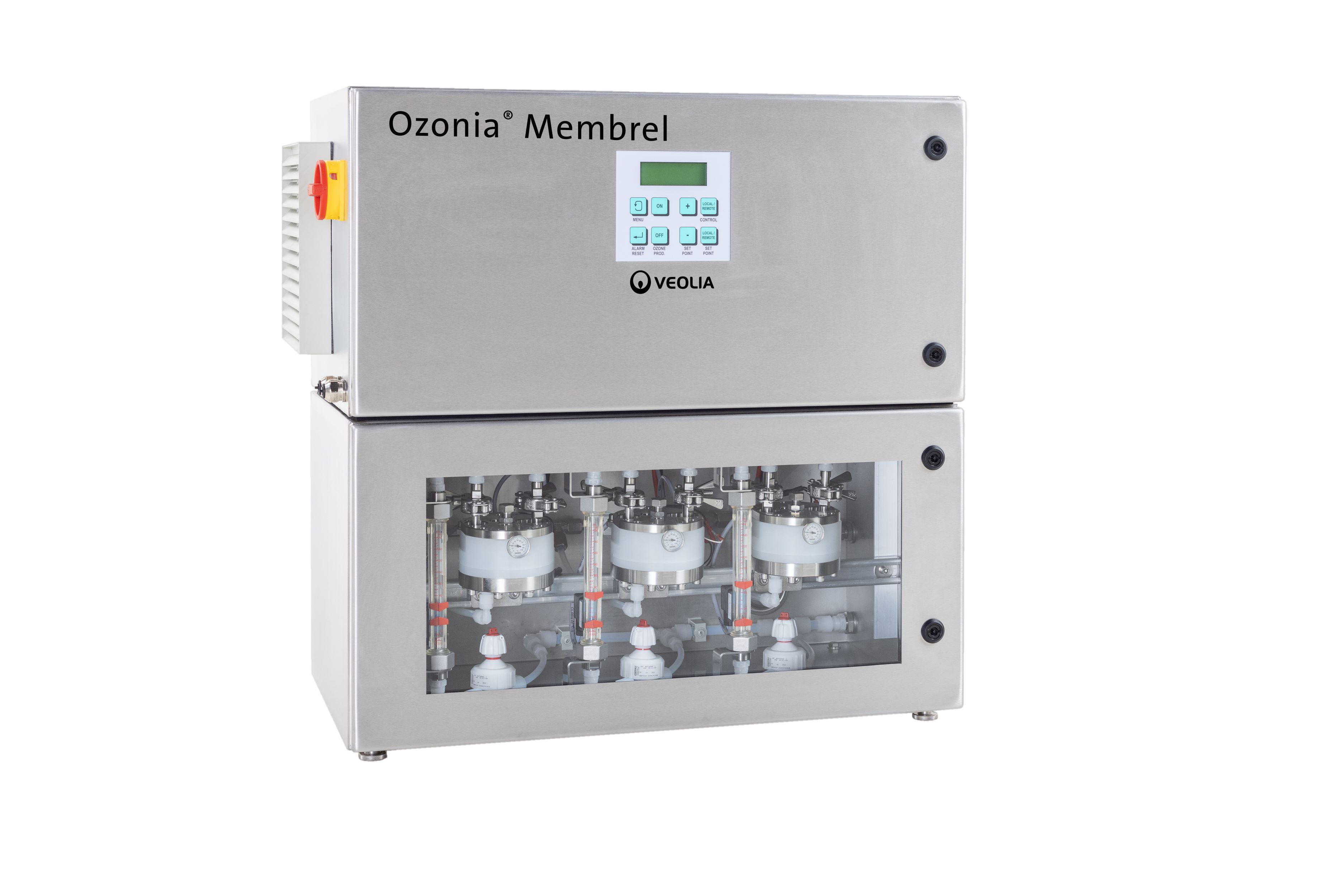

Ozonia* Membrel MkV ozone generation plant based on the catalytic water electrolysis process; suitable for sterilization and sanitization of ultrapure water in ring piping systems in the pharmaceutical and semiconductor industriesThe plant consists of 1, 2 or 3 current-regulated electrolysis cells including electrode set (anode, cathode and solid electrolyte membrane) and an electric feeder. Ozone production per cell: 3-4 g/h Feed water flow per cell: nom. 100 l/h Feed water conductance: < 20 μS/cm Operating pressure: max. 6 bar Electrical power per cell: 460 W/ 230 VAC, 50-60 Hz Ozone power setting: 8-100%Control functions (floating): System ON/OFF; control and set point LOCAL/REMOTE supply ON/OFF /collective alarm Control function (4-20 mA): electrolysis current for ozone production System plants MkV-S ready for operation and connection; consisting of: Electrolysis cells made of PVDF / titanium / stainless steel (316L) internally piped incl. flow meter and control valve; with temperature and flow monitoring; installed in stainless steel housing IP54 Connections Feed water and ozone-strong water: TriClamp TC25 ID 10 mm n. DIN 32676-A Connections hydrogen and waste water: SERTO for pipe 10 x 1 mm Electrical supply unit with power supply, controller unit and emergency battery in IP 54 stainless steel housing, wired directly to electrolysis cell via connection cable*Trademark of Veolia; may be registered in one or more countries.

Ozonia* Membrel MkV ozone generation plant based on the catalytic water electrolysis process; suitable for sterilization and sanitization of ultrapure water in ring piping systems in the pharmaceutical and semiconductor industriesThe plant consists of 1, 2 or 3 current-regulated electrolysis cells including electrode set (anode, cathode and solid electrolyte membrane) and an electric feeder. Ozone production per cell: 3-4 g/h Feed water flow per cell: nom. 100 l/h Feed water conductance: < 20 μS/cm Operating pressure: max. 6 bar Electrical power per cell: 460 W/ 230 VAC, 50-60 Hz Ozone power setting: 8-100%Control functions (floating): System ON/OFF; control and set point LOCAL/REMOTE supply ON/OFF /collective alarm Control function (4-20 mA): electrolysis current for ozone production System plants MkV-S ready for operation and connection; consisting of: Electrolysis cells made of PVDF / titanium / stainless steel (316L) internally piped incl. flow meter and control valve; with temperature and flow monitoring; installed in stainless steel housing IP54 Connections Feed water and ozone-strong water: TriClamp TC25 ID 10 mm n. DIN 32676-A Connections hydrogen and waste water: SERTO for pipe 10 x 1 mm Electrical supply unit with power supply, controller unit and emergency battery in IP 54 stainless steel housing, wired directly to electrolysis cell via connection cable*Trademark of Veolia; may be registered in one or more countries.

Ozonia* Membrel MkV ozone generation plant based on the catalytic water electrolysis process; suitable for sterilization and sanitization of ultrapure water in ring piping systems in the pharmaceutical and semiconductor industriesThe plant consists of 1, 2 or 3 current-regulated electrolysis cells including electrode set (anode, cathode and solid electrolyte membrane) and an electric feeder. Ozone production per cell: 3-4 g/h Feed water flow per cell: nom. 100 l/h Feed water conductance: < 20 μS/cm Operating pressure: max. 6 bar Electrical power per cell: 460 W/ 230 VAC, 50-60 Hz Ozone power setting: 8-100%Control functions (floating): System ON/OFF; control and set point LOCAL/REMOTE supply ON/OFF /collective alarm Control function (4-20 mA): electrolysis current for ozone production System plants MkV-S ready for operation and connection; consisting of: Electrolysis cells made of PVDF / titanium / stainless steel (316L) internally piped incl. flow meter and control valve; with temperature and flow monitoring; installed in stainless steel housing IP54 Connections Feed water and ozone-strong water: TriClamp TC25 ID 10 mm n. DIN 32676-A Connections hydrogen and waste water: SERTO for pipe 10 x 1 mm Electrical supply unit with power supply, controller unit and emergency battery in IP 54 stainless steel housing, wired directly to electrolysis cell via connection cable*Trademark of Veolia; may be registered in one or more countries.
