Tip

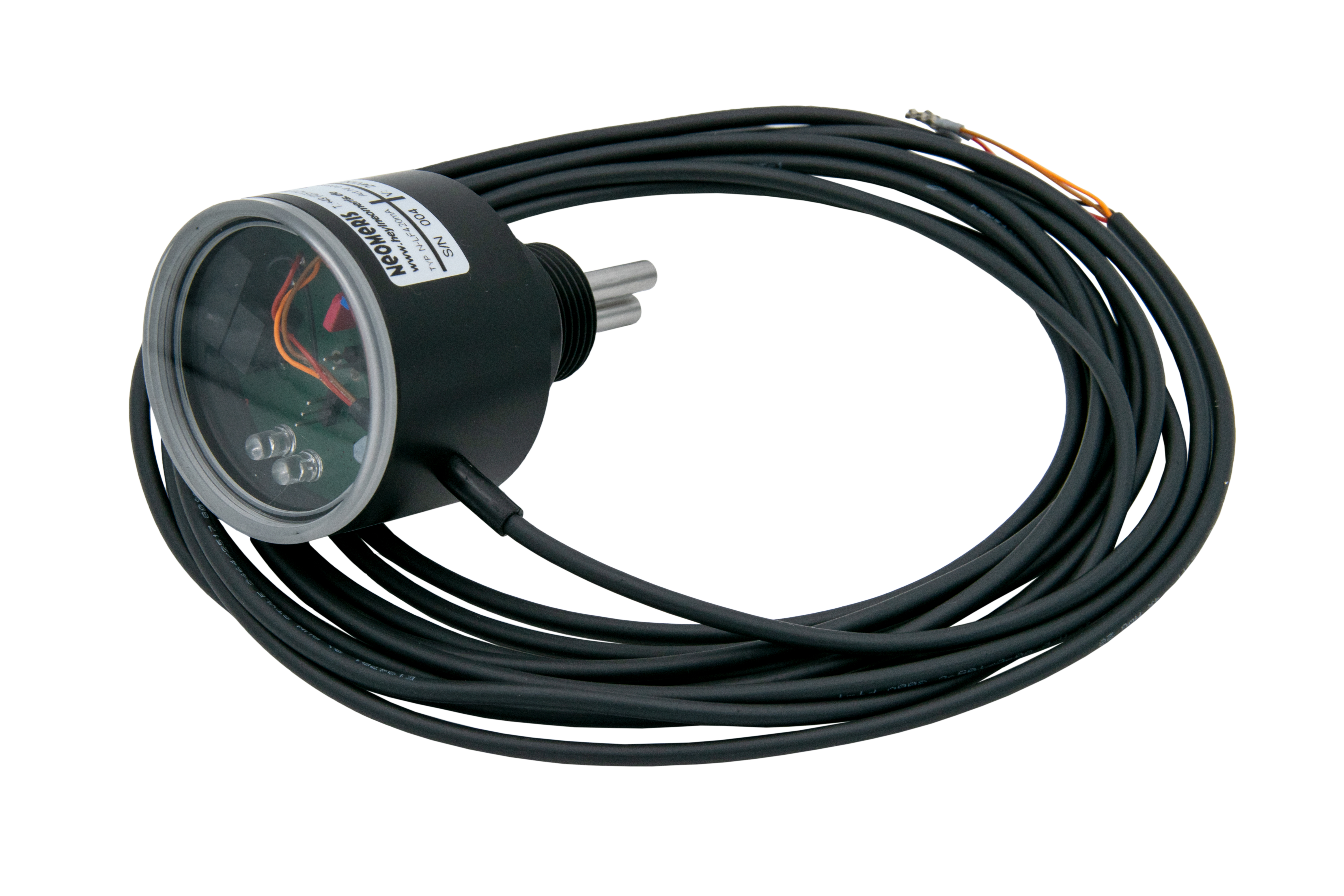

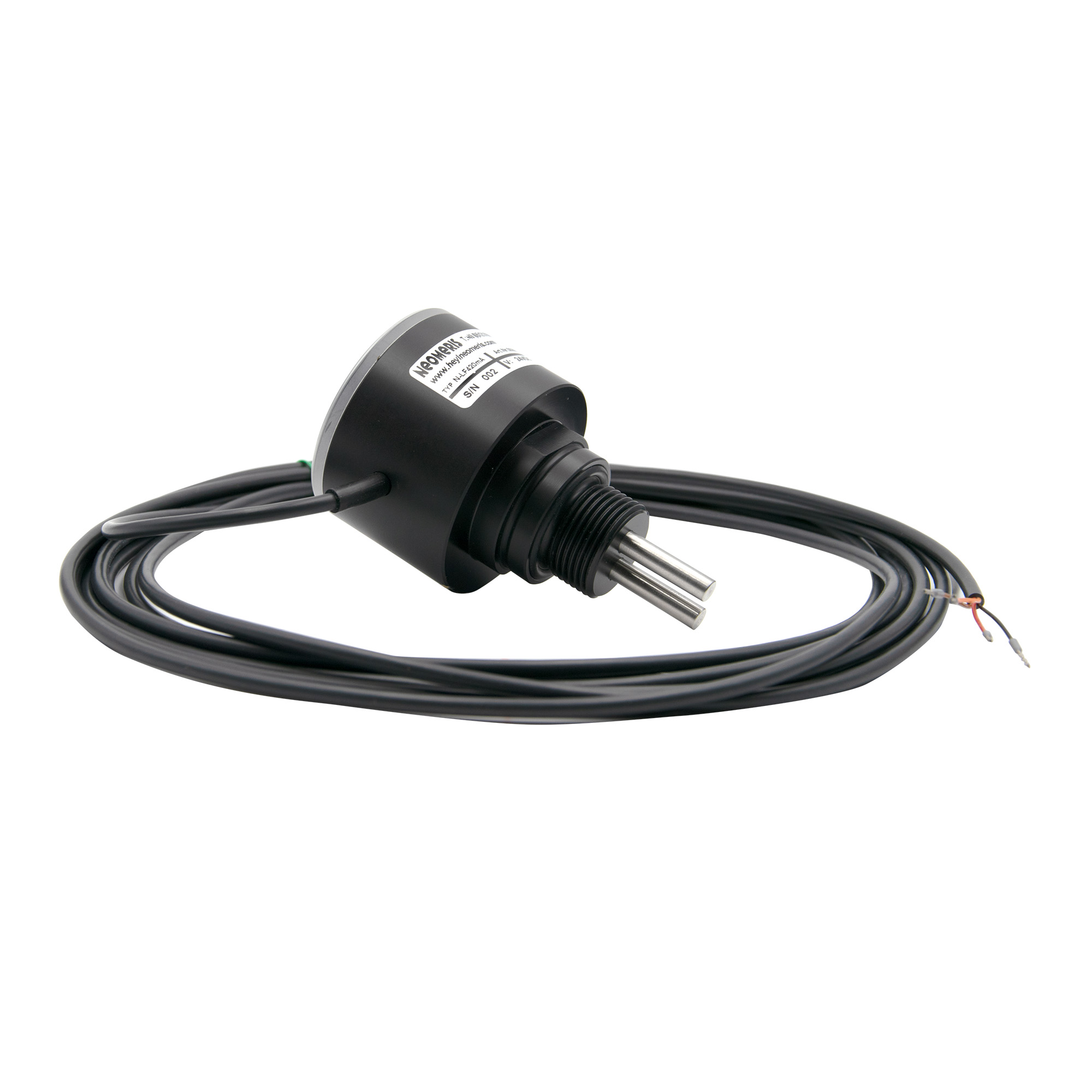

N-LF420 0-2000µS conductivity meter with 4-20mA output, LED display and 3/4 inch screw-in thread
Product number:
880677
LED Configuration:
Standard (see text)
|
measuring range:
0-2000 μS/cm
|
screw-in cel:
3/4"
High-quality conductivity meter with a 4-20mA signal output for forwarding the measured value to a higher-level control system, for example. The measurement is temperature compensated and therefore offers you an accurate measurement result. Also here we have the possibility to offer you an individual design regarding the connection, the LEDs including the measuring range up to a private label.
Due to the acrylic glass cover used, the light of the LEDs is widely scattered and the current LED status can be seen from a distance in darker rooms.
Quality Made in Germany.
Standard LED configuration (1 green LED, 1 red LED):
<1500 µS/cm = green
>1500 µS/cm to <1900µS/cm = green/red flashing
>1900 µS/cm = red
Technical data:
Measuring range: 0 - 2000 μS/cm
Temperature compensation: Linear 2.2 % / K, reference temperature 25°C
Accuracy conductivity: +/-10% of the maximum full scale value
Accuracy temperature: +-1.0 °C
Limit value display: Optical via LED
Analog output: 4-20 mA = 0-2000 μS/cm
Power supply: 24 VDC +-10%
Power consumption: < 2.5W
Screw-in thread: 3/4"
Housing: POM (polyoxymethylene)
Vision panel: PMMA (acrylic glass)
Electrodes: stainless steel 1.457
Dimensions: Diameter 60 mm x 60 mm (top) / 100 mm (total)
Gaskets electrodes: EPDM, 28 x 3 mm
Gasket housing: EPDM, 50 x 2 mm
Application limits: P max: 6 bar; T max: 50 °C
Protection class: IP 65*
€229.20*
Tip
N-LF420 0-2µS conductivity meter with 4-20mA output, LED display and 3/4 inch screw-in thread
Product number:
880683
High-quality conductivity meter for conductivity monitoring
Our innovative conductivity meter has been specially developed for monitoring conductivity in ultrapure water (demineralised water) and has a 4-20 mA signal output that enables easy integration into higher-level control systems.The measurements are temperature-compensated, which ensures greater accuracy. With a measuring range of 0 to 2 µS/cm, our device is particularly suitable for monitoring low conductivities, such as those typically found in mixed-bed ion exchanger cartridges. The limit value is displayed by means of 2 LEDs (green/red) on the top of the device. An acrylic glass cover ensures that the current status is immediately visible.
The device has a ¾ screw thread, which can be customised for easy and safe installation. There is also the option of customisation in terms of the LEDs, including the measuring range and a private label.
Our high-quality conductivity meter offers a reliable solution for conductivity monitoring in medical areas to fulfil the guidelines and recommendations of the DGSV.
Our measuring device is also particularly suitable for mixed bed cartridge monitoring in the clinical environment.
Standard LED configuration (1 green LED, 1 red LED):
<0.5 µS/cm = green
>0.5 µS/cm to <1.0 µS/cm = green/red flashing
>1 µS/cm = red
€229.20*
Tip
N-LF420 0-50µS conductivity meter with 4-20mA output, LED display and screw-in thread as required
Product number:
880630M.1
LED Configuration:
Standard (see text)
|
measuring range:
0-50 μS/cm
|
screw-in cel:
Your desired thread
High-quality conductivity meter with a 4-20mA signal output for forwarding the measured value to a higher-level control system, for example. The measurement is temperature compensated and therefore offers you an accurate measurement result. Also here we have the possibility to offer you an individual design regarding the connection, the LEDs including the measuring range up to a private label.
Due to the acrylic glass cover used, the light of the LEDs is widely scattered and the current LED status can be seen from a distance in darker rooms.
Quality Made in Germany.
Standard LED configuration (1 green LED, 1 red LED):
<20 µS/cm = green
>20 µS/cm to <40µS/cm = green/red flashing
>40 µS/cm = red
Technical data:
Measuring range: 0 - 50 μS/cm
Temperature compensation: Linear 2.2 % / K, reference temperature 25°C
Accuracy conductivity: +/-10% of the maximum full scale value
Accuracy temperature: +-1.0 °C
Limit value display: Optical via LED
Analog output: 4-20 mA = 0-50 μS/cm
Power supply: 24 VDC +-10%
Power consumption: < 2.5W
Screw-in thread: according to your requirements
Housing: POM (polyoxymethylene)
Vision panel: PMMA (acrylic glass)
Electrodes: stainless steel 1.457
Dimensions: Diameter 60 mm x 60 mm (top) / 100 mm (total)
Gaskets electrodes: EPDM, 28 x 3 mm
Gasket housing: EPDM, 50 x 2 mm
Application limits: P max: 6 bar; T max: 50 °C
Protection class: IP 65*
€249.00*
Tip
N-LF420 free measuring range - conductivity meter with 4-20mA output and measuring range according to your requirements, LED display, 3/4 inch screw-in thread
Product number:
880996
LED Configuration:
Standard (see text)
|
measuring range:
Your desired measuring range
|
screw-in cel:
3/4"
High-quality conductivity meter with a 4-20mA signal output for forwarding the measured value to a higher-level control system, for example. The measurement is temperature compensated and therefore offers you an accurate measurement result. Also here we have the possibility to offer you an individual design regarding the connection, the LEDs including the measuring range up to a private label.
Due to the acrylic glass cover used, the light of the LEDs is widely scattered and the current LED status can be seen from a distance in darker rooms.
Quality Made in Germany.
Standard LED configuration (1 green LED, 1 red LED):
<20 µS/cm = green
>20 µS/cm to <40µS/cm = green/red flashing
>40 µS/cm = red
Technical data:
Measuring range: according your requirements
Temperature compensation: Linear 2.2 % / K, reference temperature 25°C
Accuracy conductivity: +/-10% of the maximum full scale value
Accuracy temperature: +-1.0 °C
Limit value display: Optical via LED
Analog output: 4-20 mA = 0-... μS/cm (according your needed measuring range)
Power supply: 24 VDC +-10%
Power consumption: < 2.5W
Screw-in thread: 3/4"
Housing: POM (polyoxymethylene)
Vision panel: PMMA (acrylic glass)
Electrodes: stainless steel 1.457
Dimensions: Diameter 60 mm x 60 mm (top) / 100 mm (total)
Gaskets electrodes: EPDM, 28 x 3 mm
Gasket housing: EPDM, 50 x 2 mm
Application limits: P max: 6 bar; T max: 50 °C
Protection class: IP 65*
€249.00*
NeoTec CalBox
Product number:
890893
The calibration box is used for the calibration of Modbus sensors. The wires from the sensors are connected to the terminal block on the front of the box and the Box is connected to a computer via a USB interface.Advantages:Simple and safe calibration of the Modbus sensors
€244.50*
NeoTec Select Sensor Conductivity modular measuring package with 4-20mA head transmitter for low measuring range
Product number:
891016
Head transmitter:
4-20 mA
|
Tee:
1.5" flow cell with 1" inner thread NPT
|
measuring range:
0.1-1.000 μS/cm
The conductivity measuring package consists of a 3 meter connection cable, a 4-20mA head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced, when it should be worn out . All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece.
Advantages:
preconfigured for NeoTecMaster®
modular design
industry standard
resource friendly
€780.50*
NeoTec Select Sensor Conductivity modular measuring package with Modbus signal output for low measuring range
Product number:
891017
Head transmitter:
Modbus 12-24 VDC
|
Tee:
1.5" flow cell with 1" inner thread NPT
|
measuring range:
0.1-500 μS/cm
The conductivity sensor consists of a 3 meter connection cable, a Modbus head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced. All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece.
Advantages:Preconfigured for NeoTecMaster®
Modular design
Industry standard
conserves resources
€780.50*

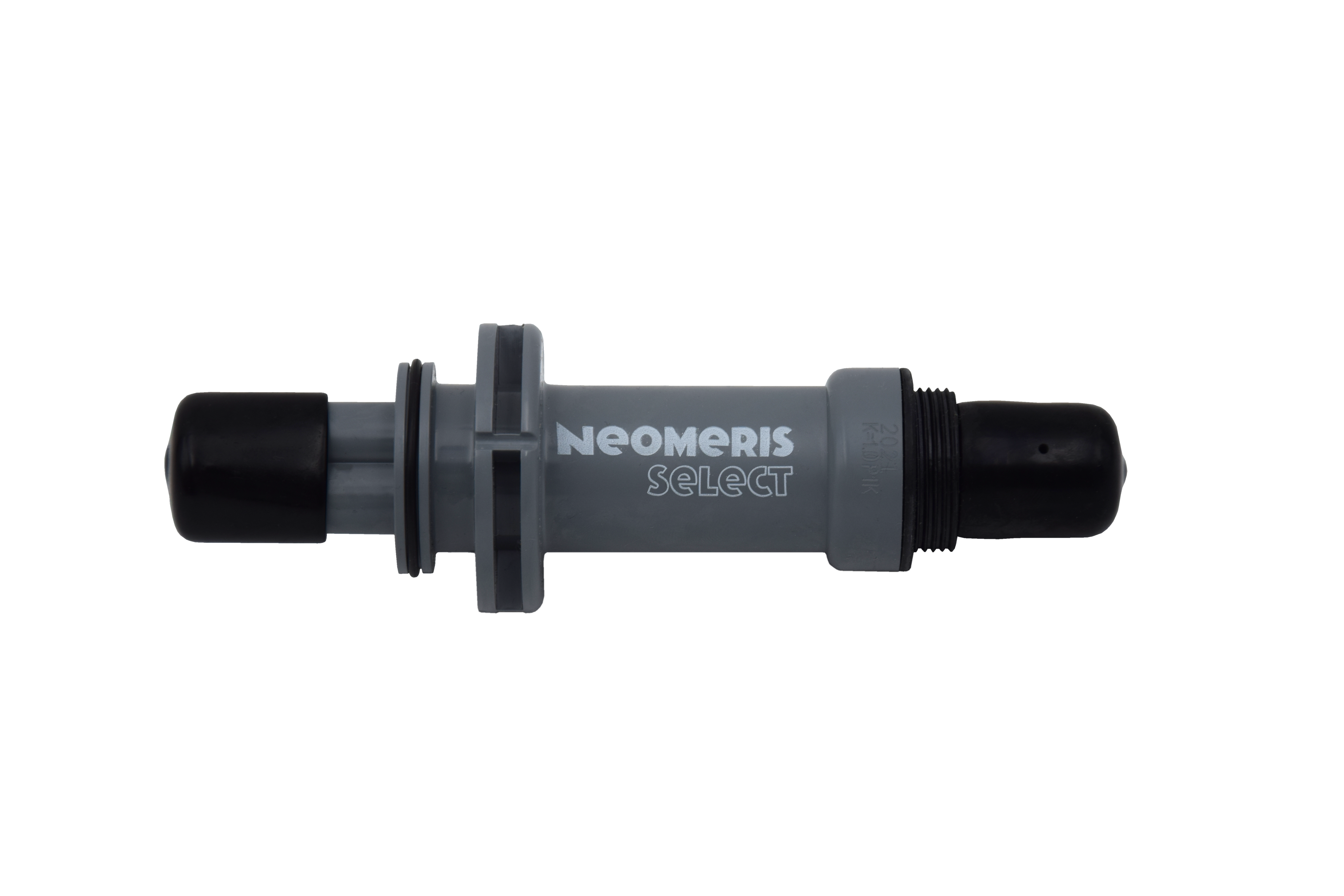

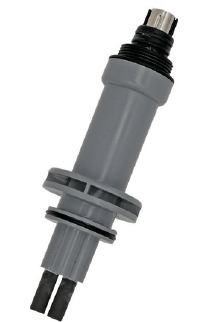

Select conductivity sensor with graphite electrode, cell constant 0.1 and Pt1000
Product number:
890825
Cell constant:
0.1
|
Measuring resistor (temperature sensor):
PT1000
€255.50*

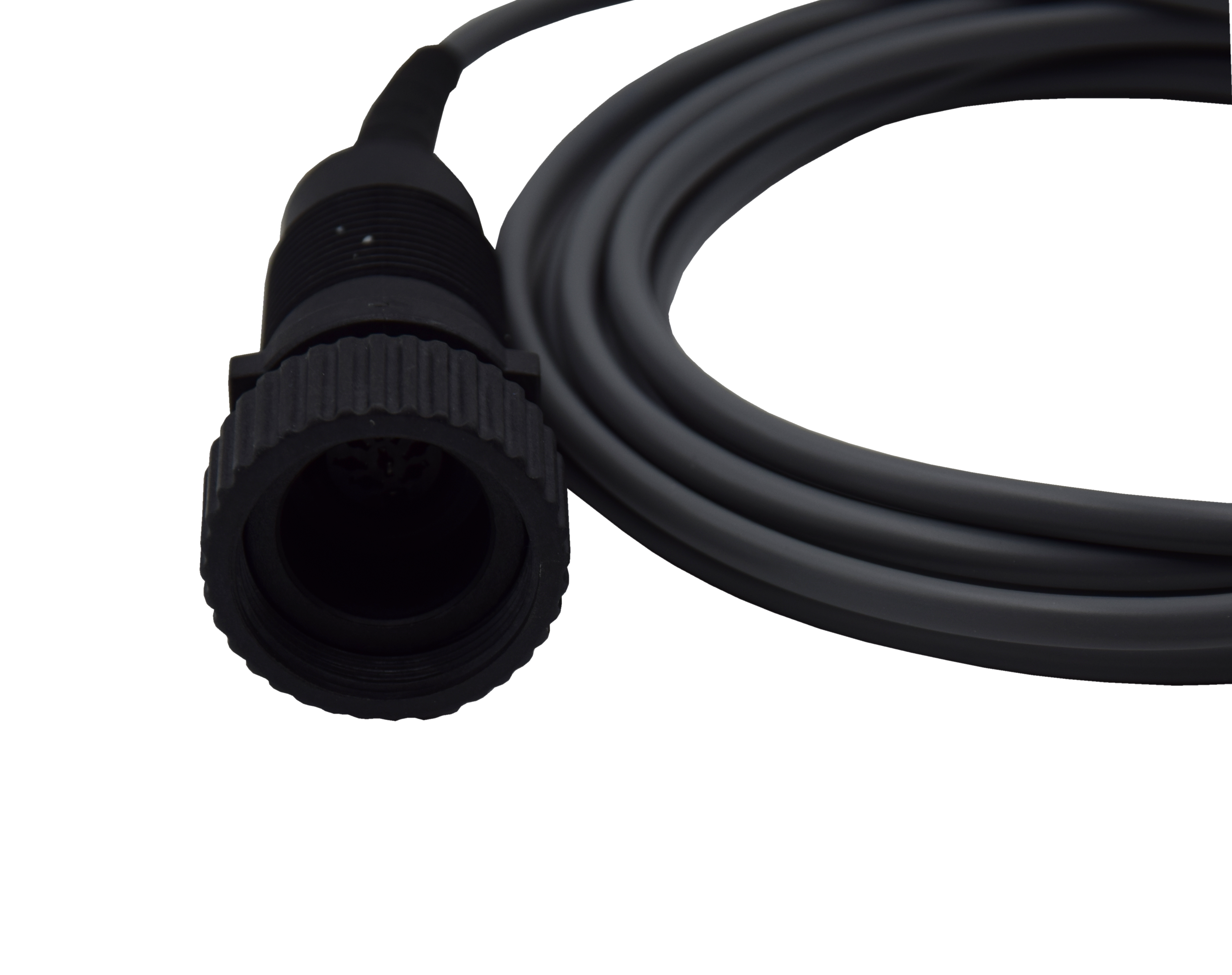

Select connection cable
Product number:
890810
Cable length:
3 meters
|
The cable is connected to Select :
pH- / ORP- / conductivity electronic module (head transmitter, Modbus / 4-20 mA)
€104.50*
Select Electronic-Module 4-20mA conductivity (0-1.000µS, head transmitter)
Product number:
890798
Head transmitter:
4-20 mA ( = 0- 1.000 µS/cm)
|
Measured parameter:
EC
€333.50*
Select Electronic-Module 4-20mA conductivity (0-10.000µS, head transmitter)
Product number:
890818
Head transmitter:
4-20 mA ( = 0- 10.000 µS/cm)
|
Measured parameter:
EC
€333.50*

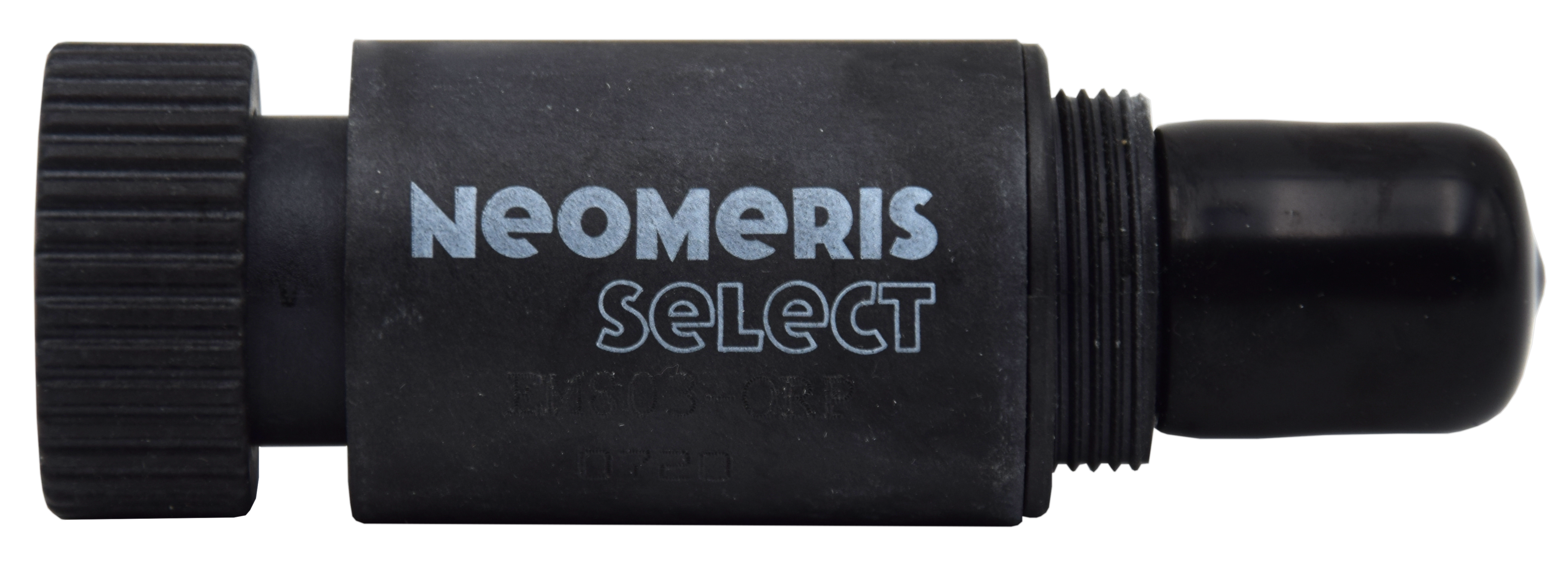

Select Electronic-Module Conductivity Modbus (head transmitter)
Product number:
890820
Head transmitter:
Modbus 12-24 VDC
|
Measured parameter:
EC
€333.50*
Select Flow Cell
Product number:
890861
Fits for:
Select pH / ORP or Conductivity Sensor C=0.1 / 1
|
Version:
1.5" flow cell with 1" inner thread NPT
€102.25*
Select Flow Cell
Product number:
890882
Fits for:
Select pH / ORP electrode adapter, conductivity sensor K=0.1 / 1 and toroidal sensor
|
Version:
2" slip tee (to glue in)
€80.00*
Select Flow Cell
Product number:
890821
Fits for:
Select pH / ORP or Conductivity Sensor C=1
|
Version:
1" flow cell with 3/4" inner thread NPT
€65.00*
Tip

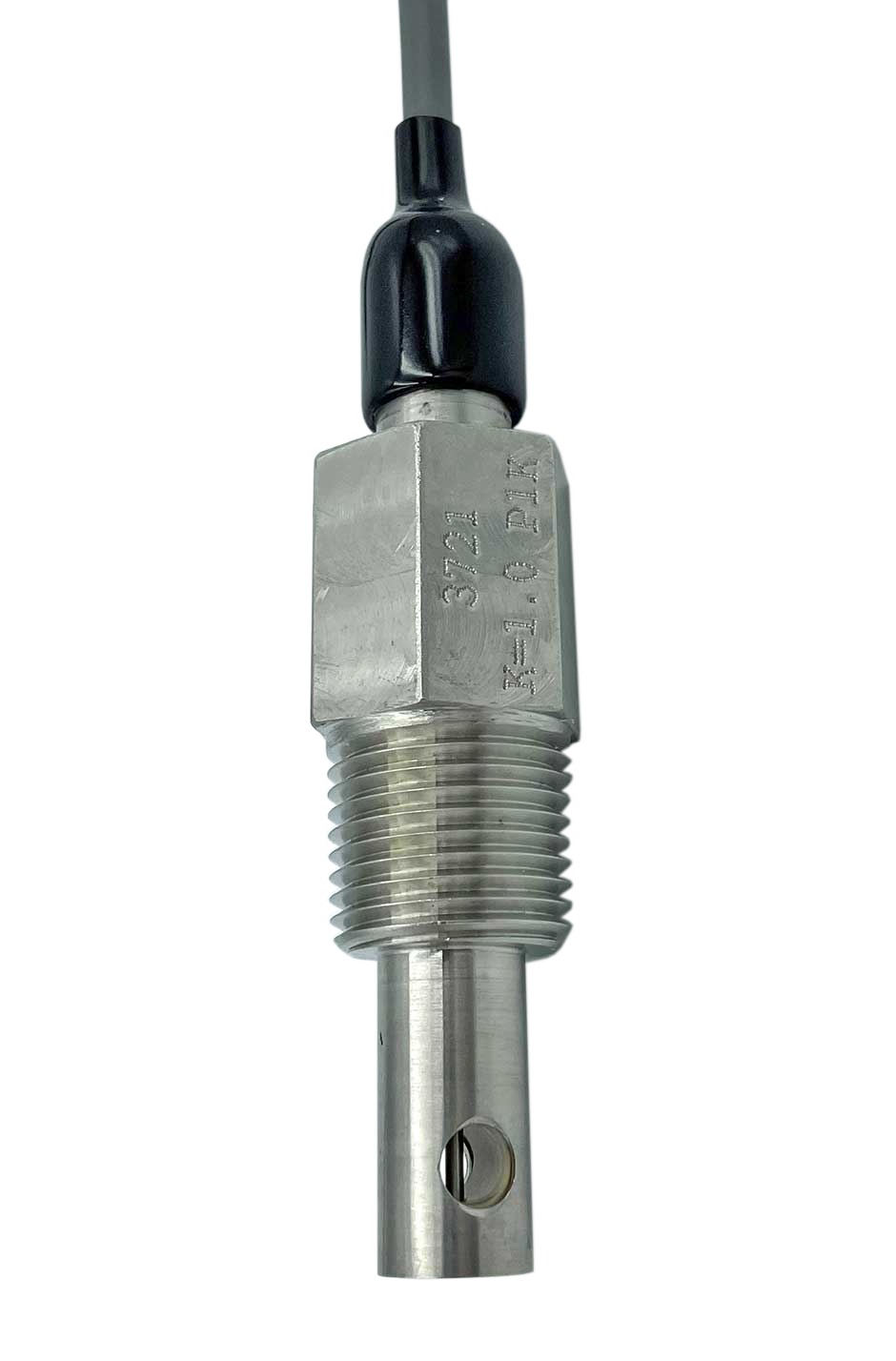

Select stainless steel conductivity sensor 100°C (max. 13 bar) for high temperatures and high pressure (LF)
Product number:
891221
Cell constant:
1
|
Maximum temperature and pressure:
max. 100 °C / max. 13 bar (200 psig)
|
Measuring resistor (temperature sensor):
PT1000
|
Version:
1/2“ NPT
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
€554.40*
Tip
Select stainless steel conductivity sensor 200°C (max. 17 bar) for high temperatures and high pressure (HTLF)
Product number:
890791
Cell constant:
0.1
|
Maximum temperature and pressure:
max. 200 °C / max. 17 bar (250 psig)
|
Measuring resistor (temperature sensor):
PT1000
|
Version:
3/4“ NPT for installation in 3/4“ T-piece
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
€418.75*
Tip

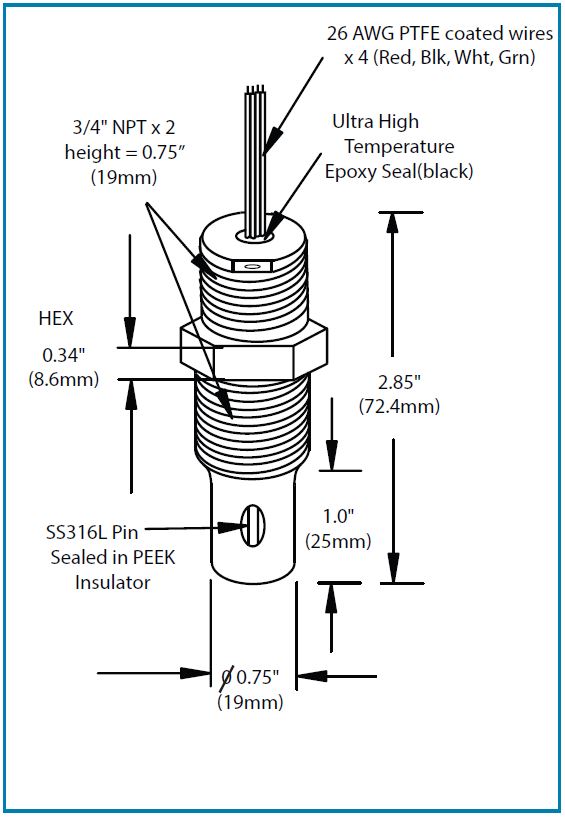

Select stainless steel conductivity sensor 252°C (max. 41 bar) for high temperatures and high pressure (HTLF ULTRA)
Product number:
891222
Cell constant:
1
|
Maximum temperature and pressure:
max. 252 °C / max. 41 bar (600 psi)
|
Measuring resistor (temperature sensor):
PT100
|
Version:
3/4“ NPT for installation in 3/4“ T-piece
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
€517.25*
Tip
Select Toroidal 4-20mA Conductivity Sensor 0- 2.000 mS (0 - 2.000.000 µS)
Product number:
890884
Measuring resistor (temperature sensor):
PT1000
|
Version:
4-20mA (0- 2.000 mS)
Analogue and digital communication for more process visibility• Modbus or 4-20 mA sensor output available• Configuration and calibration can be done using web based software
Corrosion, Coating and Fouling Resistant• Noryl body has a wide solvent tolerance and temperature stability to 105°C (used with flow cell 80°C, with integrated 4-20mA output or Modbus 70°C)
Mounting• Can be installed in line using the specific flow cell or submersed via the 3/4" MNPT thread
Wide Measurement Range• Can measure conductivity from 0 – 2.000.000 μS (0 - 2 S)
€1,046.75*
Tip
Select Toroidal 4-20mA Conductivity Sensor 0- 500 mS (0 - 500.000 µS)
Product number:
890883
Measuring resistor (temperature sensor):
PT1000
|
Version:
4-20mA (0- 500 mS)
Analogue and digital communication for more process visibility• Modbus or 4-20 mA sensor output available• Configuration and calibration can be done using web based software
Corrosion, Coating and Fouling Resistant• Noryl body has a wide solvent tolerance and temperature stability to 105°C (used with flow cell 80°C, with integrated 4-20mA output or Modbus 70°C)
Mounting• Can be installed in line using the specific flow cell or submersed via the 3/4" MNPT thread
Wide Measurement Range• Can measure conductivity from 0 – 500.000 μS (0 - 500 mS)
€936.75*
Tip
Select Toroidal Conductivity Sensor 0- 2 S (0 - 2.000.000 µS)
Product number:
890885
Measuring resistor (temperature sensor):
PT1000
|
Version:
Standard (9-wire connection cable)
Analogue and digital communication for more process visibility• Modbus or 4-20 mA sensor output available• Configuration and calibration can be done using web based software
Corrosion, Coating and Fouling Resistant• Noryl body has a wide solvent tolerance and temperature stability to 105°C (used with flow cell 80°C, with integrated 4-20mA output or Modbus 70°C)
Mounting• Can be installed in line using the specific flow cell or submersed via the 3/4" MNPT thread
Wide Measurement Range• Can measure conductivity from 0 – 2.000.000 μS (0 - 2 S)
€700.50*
Tip
Select Toroidal Modbus Conductivity Sensor 0- 2 S (0 - 2.000.000 µS)
Product number:
890881
Measuring resistor (temperature sensor):
PT1000
|
Version:
Modbus
Analogue and digital communication for more process visibility• Modbus or 4-20 mA sensor output available• Configuration and calibration can be done using web based software
Corrosion, Coating and Fouling Resistant• Noryl body has a wide solvent tolerance and temperature stability to 105°C (used with flow cell 80°C, with integrated 4-20mA output or Modbus 70°C)
Mounting• Can be installed in line using the specific flow cell or submersed via the 3/4" MNPT thread
Wide Measurement Range• Can measure conductivity from 0 – 2.000.000 μS (0 - 2 S)
€936.75*
