Conductivity is an ability of a substance (liquids, solids, gas), to conduct electricity and heat. The conductivity can only show the amount that are dissolved in water in total. The unit is expressed in Siemens per meter [S/m] in SI units or usually by microsiemens per centimeter [µS/cm]. TDS stands for "Total Dissolved Solids" and is approximated by conductivity using a multiplication factor and expressed in parts per million (ppm). The following conversion key applies: 1.2 µS/cm = 1 ppm = 1 mg/l.

Our conductivity sensor is a cost-effective solution for continuous online monitoring of conductivity/TDS of your process water. With 4-20mA or MODBUS/RS485 output, it can be easily connected to our multiparameter system NTM and read sensor signal.

NeoTec CalBox

NeoTec CalBox

Product number: 890893

The calibration box is used for the calibration of Modbus sensors. The wires from the sensors are connected to the terminal block on the front of the box and the Box is connected to a computer via a USB interface.Advantages:Simple and safe calibration of the Modbus sensors

€244.50*

NeoTec Select Sensor Conductivity modular measuring package with 4-20mA head transmitter for low measuring range

NeoTec Select Sensor Conductivity modular measuring package with 4-20mA head transmitter for low measuring range

Product number: 891016

Head transmitter: 4-20 mA | Tee: 1.5" flow cell with 1" inner thread NPT | measuring range: 0.1-1.000 μS/cm

The conductivity measuring package consists of a 3 meter connection cable, a 4-20mA head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced, when it should be worn out . All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece. Advantages: preconfigured for NeoTecMaster® modular design industry standard resource friendly

€780.50*

NeoTec Select Sensor Conductivity modular measuring package with Modbus signal output for low measuring range

NeoTec Select Sensor Conductivity modular measuring package with Modbus signal output for low measuring range

Product number: 891017

Head transmitter: Modbus 12-24 VDC | Tee: 1.5" flow cell with 1" inner thread NPT | measuring range: 0.1-500 μS/cm

The conductivity sensor consists of a 3 meter connection cable, a Modbus head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced. All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece. Advantages:Preconfigured for NeoTecMaster® Modular design Industry standard conserves resources

€780.50*

Select conductivity sensor with graphite electrode, cell constant 0.1 and Pt1000

Select conductivity sensor with graphite electrode, cell constant 0.1 and Pt1000

Product number: 890825

Cell constant: 0.1 | Measuring resistor (temperature sensor): PT1000

€255.50*

Select connection cable

Select connection cable

Product number: 890810

Cable length: 3 meters | The cable is connected to Select : pH- / ORP- / conductivity electronic module (head transmitter, Modbus / 4-20 mA)

€104.50*

Select Electronic-Module 4-20mA conductivity (0-1.000µS, head transmitter)

Select Electronic-Module 4-20mA conductivity (0-1.000µS, head transmitter)

Product number: 890798

Head transmitter: 4-20 mA ( = 0- 1.000 µS/cm) | Measured parameter: EC

€333.50*

Select Electronic-Module 4-20mA conductivity (0-10.000µS, head transmitter)

Select Electronic-Module 4-20mA conductivity (0-10.000µS, head transmitter)

Product number: 890818

Head transmitter: 4-20 mA ( = 0- 10.000 µS/cm) | Measured parameter: EC

€333.50*

Select Electronic-Module Conductivity Modbus (head transmitter)

Select Electronic-Module Conductivity Modbus (head transmitter)

Product number: 890820

Head transmitter: Modbus 12-24 VDC | Measured parameter: EC

€333.50*

Select Flow Cell

Select Flow Cell

Product number: 890861

Fits for: Select pH / ORP or Conductivity Sensor C=0.1 / 1 | Version: 1.5" flow cell with 1" inner thread NPT

€102.25*

Select Flow Cell

Select Flow Cell

Product number: 890882

Fits for: Select pH / ORP electrode adapter, conductivity sensor K=0.1 / 1 and toroidal sensor | Version: 2" slip tee (to glue in)

€80.00*

Select Flow Cell

Select Flow Cell

Product number: 890821

Fits for: Select pH / ORP or Conductivity Sensor C=1 | Version: 1" flow cell with 3/4" inner thread NPT

€65.00*

Tip

Select stainless steel conductivity sensor 100°C (max. 13 bar) for high temperatures and high pressure (LF)

Select stainless steel conductivity sensor 100°C (max. 13 bar) for high temperatures and high pressure (LF)

Product number: 891221

Cell constant: 1 | Maximum temperature and pressure: max. 100 °C / max. 13 bar (200 psig) | Measuring resistor (temperature sensor): PT1000 | Version: 1/2“ NPT

Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.

€554.40*

Tip

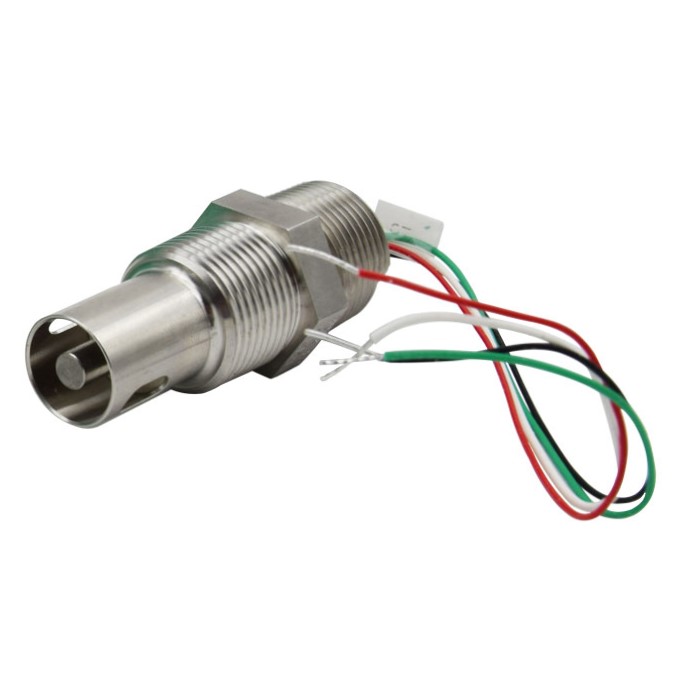

Select stainless steel conductivity sensor 200°C (max. 17 bar) for high temperatures and high pressure (HTLF)

Select stainless steel conductivity sensor 200°C (max. 17 bar) for high temperatures and high pressure (HTLF)

Product number: 890791

Cell constant: 0.1 | Maximum temperature and pressure: max. 200 °C / max. 17 bar (250 psig) | Measuring resistor (temperature sensor): PT1000 | Version: 3/4“ NPT for installation in 3/4“ T-piece

Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.

€418.75*

Tip

Select stainless steel conductivity sensor 252°C (max. 41 bar) for high temperatures and high pressure (HTLF ULTRA)

Select stainless steel conductivity sensor 252°C (max. 41 bar) for high temperatures and high pressure (HTLF ULTRA)

Product number: 891222

Cell constant: 1 | Maximum temperature and pressure: max. 252 °C / max. 41 bar (600 psi) | Measuring resistor (temperature sensor): PT100 | Version: 3/4“ NPT for installation in 3/4“ T-piece

Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.

€517.25*

Tip

Select Toroidal 4-20mA Conductivity Sensor 0- 2.000 mS (0 - 2.000.000 µS)

Select Toroidal 4-20mA Conductivity Sensor 0- 2.000 mS (0 - 2.000.000 µS)

Product number: 890884

Measuring resistor (temperature sensor): PT1000 | Version: 4-20mA (0- 2.000 mS)

Analogue and digital communication for more process visibility• Modbus or 4-20 mA sensor output available• Configuration and calibration can be done using web based software Corrosion, Coating and Fouling Resistant• Noryl body has a wide solvent tolerance and temperature stability to 105°C (used with flow cell 80°C, with integrated 4-20mA output or Modbus 70°C) Mounting• Can be installed in line using the specific flow cell or submersed via the 3/4" MNPT thread Wide Measurement Range• Can measure conductivity from 0 – 2.000.000 μS (0 - 2 S)

€1,046.75*

Tip

Select Toroidal 4-20mA Conductivity Sensor 0- 500 mS (0 - 500.000 µS)

Select Toroidal 4-20mA Conductivity Sensor 0- 500 mS (0 - 500.000 µS)

Product number: 890883

Measuring resistor (temperature sensor): PT1000 | Version: 4-20mA (0- 500 mS)

Analogue and digital communication for more process visibility• Modbus or 4-20 mA sensor output available• Configuration and calibration can be done using web based software Corrosion, Coating and Fouling Resistant• Noryl body has a wide solvent tolerance and temperature stability to 105°C (used with flow cell 80°C, with integrated 4-20mA output or Modbus 70°C) Mounting• Can be installed in line using the specific flow cell or submersed via the 3/4" MNPT thread Wide Measurement Range• Can measure conductivity from 0 – 500.000 μS (0 - 500 mS)

€936.75*

Tip

Select Toroidal Conductivity Sensor 0- 2 S (0 - 2.000.000 µS)

Select Toroidal Conductivity Sensor 0- 2 S (0 - 2.000.000 µS)

Product number: 890885

Measuring resistor (temperature sensor): PT1000 | Version: Standard (9-wire connection cable)

Analogue and digital communication for more process visibility• Modbus or 4-20 mA sensor output available• Configuration and calibration can be done using web based software Corrosion, Coating and Fouling Resistant• Noryl body has a wide solvent tolerance and temperature stability to 105°C (used with flow cell 80°C, with integrated 4-20mA output or Modbus 70°C) Mounting• Can be installed in line using the specific flow cell or submersed via the 3/4" MNPT thread Wide Measurement Range• Can measure conductivity from 0 – 2.000.000 μS (0 - 2 S)

€700.50*

Tip

Select Toroidal Modbus Conductivity Sensor 0- 2 S (0 - 2.000.000 µS)

Select Toroidal Modbus Conductivity Sensor 0- 2 S (0 - 2.000.000 µS)

Product number: 890881

Measuring resistor (temperature sensor): PT1000 | Version: Modbus

Analogue and digital communication for more process visibility• Modbus or 4-20 mA sensor output available• Configuration and calibration can be done using web based software Corrosion, Coating and Fouling Resistant• Noryl body has a wide solvent tolerance and temperature stability to 105°C (used with flow cell 80°C, with integrated 4-20mA output or Modbus 70°C) Mounting• Can be installed in line using the specific flow cell or submersed via the 3/4" MNPT thread Wide Measurement Range• Can measure conductivity from 0 – 2.000.000 μS (0 - 2 S)

€936.75*
