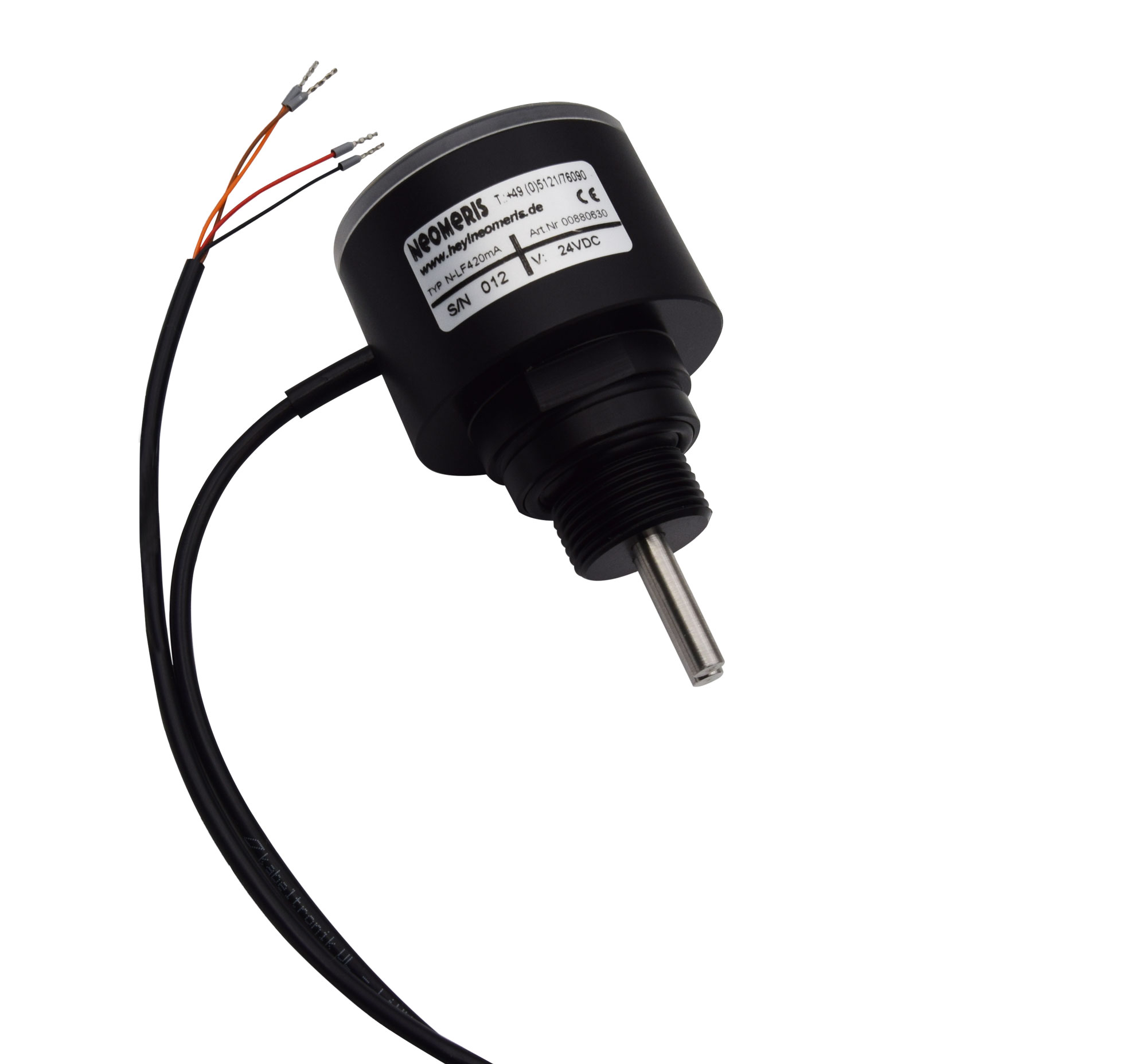

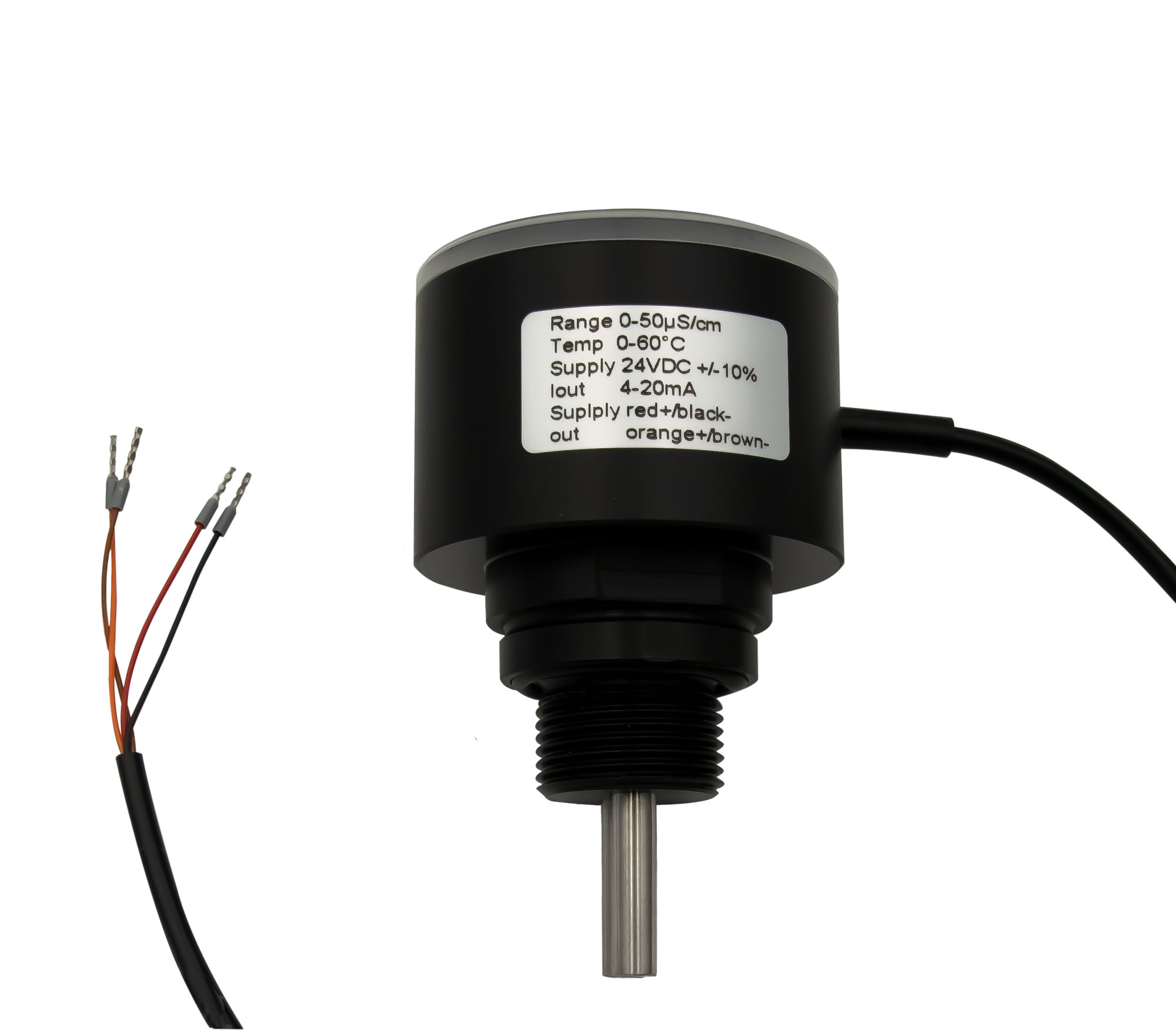

N-LF420 free measuring range - conductivity meter with 4-20mA output and measuring range according to your requirements, LED display, 3/4 inch screw-in thread

Product number: 880996

€249.00*

Please log in to receive your conditions.

Prices excl. VAT plus shipping costs.
Show gross prices
(incl. VAT)

Available in 28 days, delivery time 1-2 days

measuring range
screw-in cel
LED Configuration

Product number: 880996
GTIN: 4068823001808

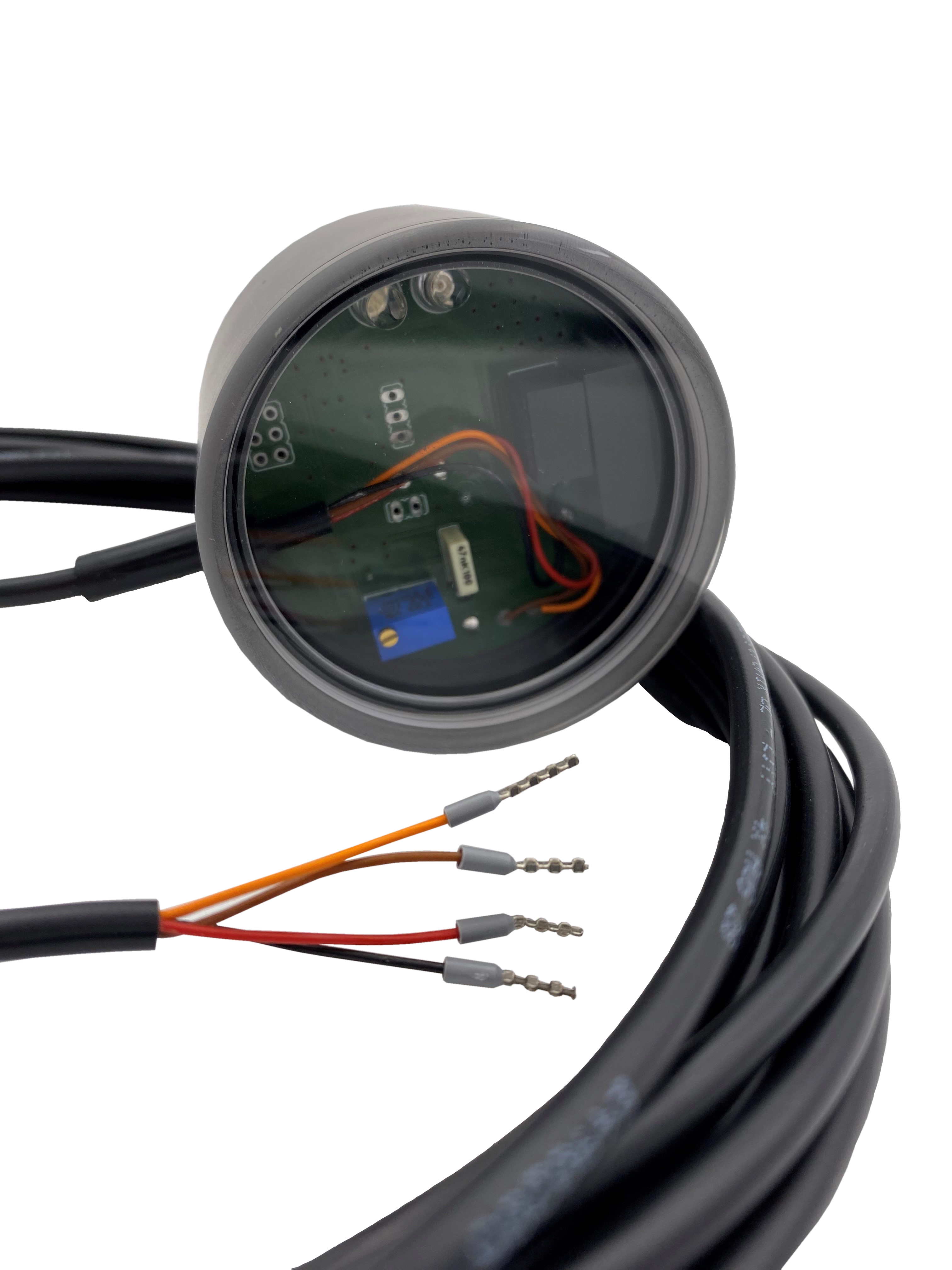

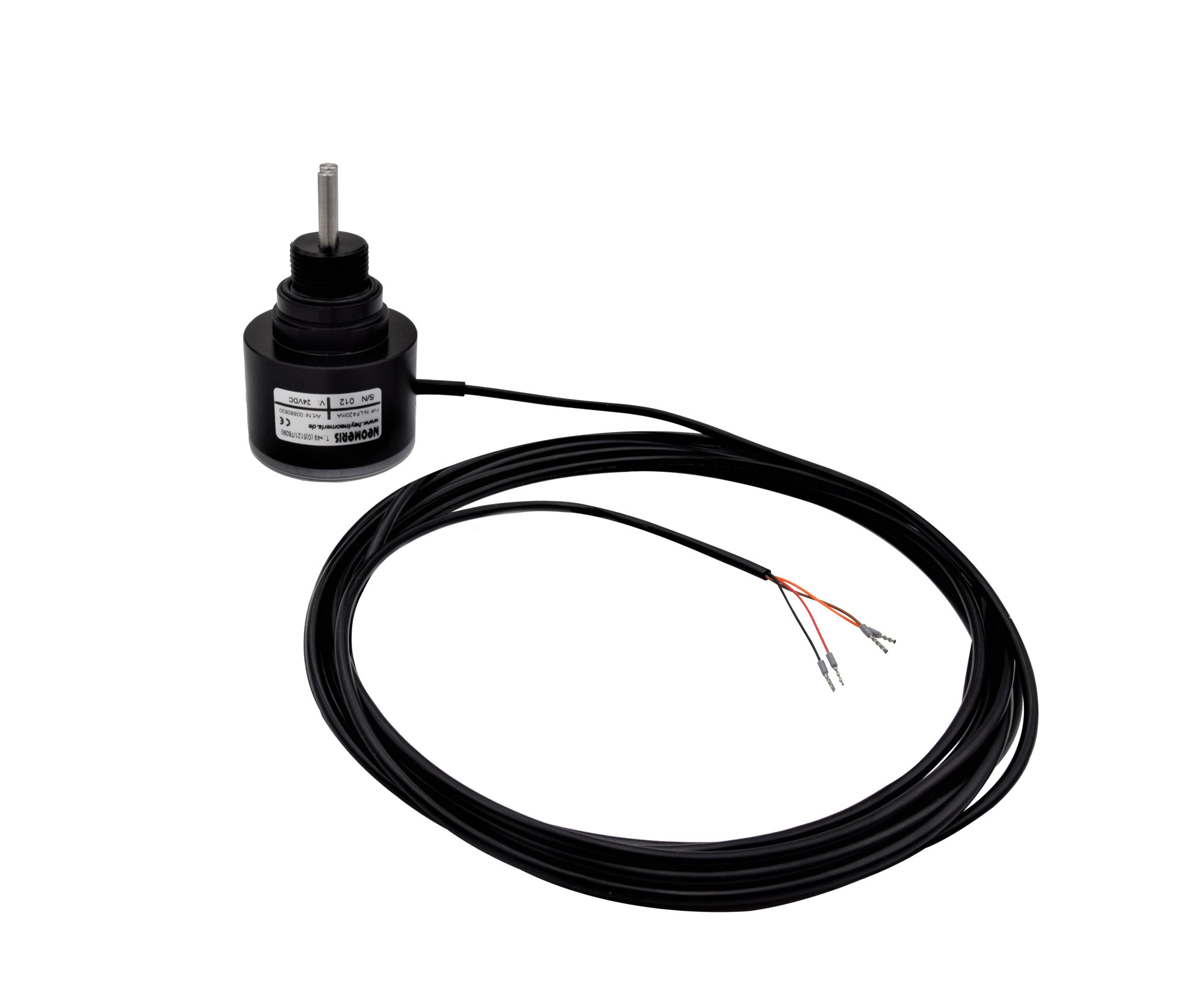

Our comment: Further product requests or an OEM label? No problem, please contact us. Cable lenght: 5 metres
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.

Product information "N-LF420 free measuring range - conductivity meter with 4-20mA output and measuring range according to your requirements, LED display, 3/4 inch screw-in thread"

High-quality conductivity meter with a 4-20mA signal output for forwarding the measured value to a higher-level control system, for example. The measurement is temperature compensated and therefore offers you an accurate measurement result. Also here we have the possibility to offer you an individual design regarding the connection, the LEDs including the measuring range up to a private label.

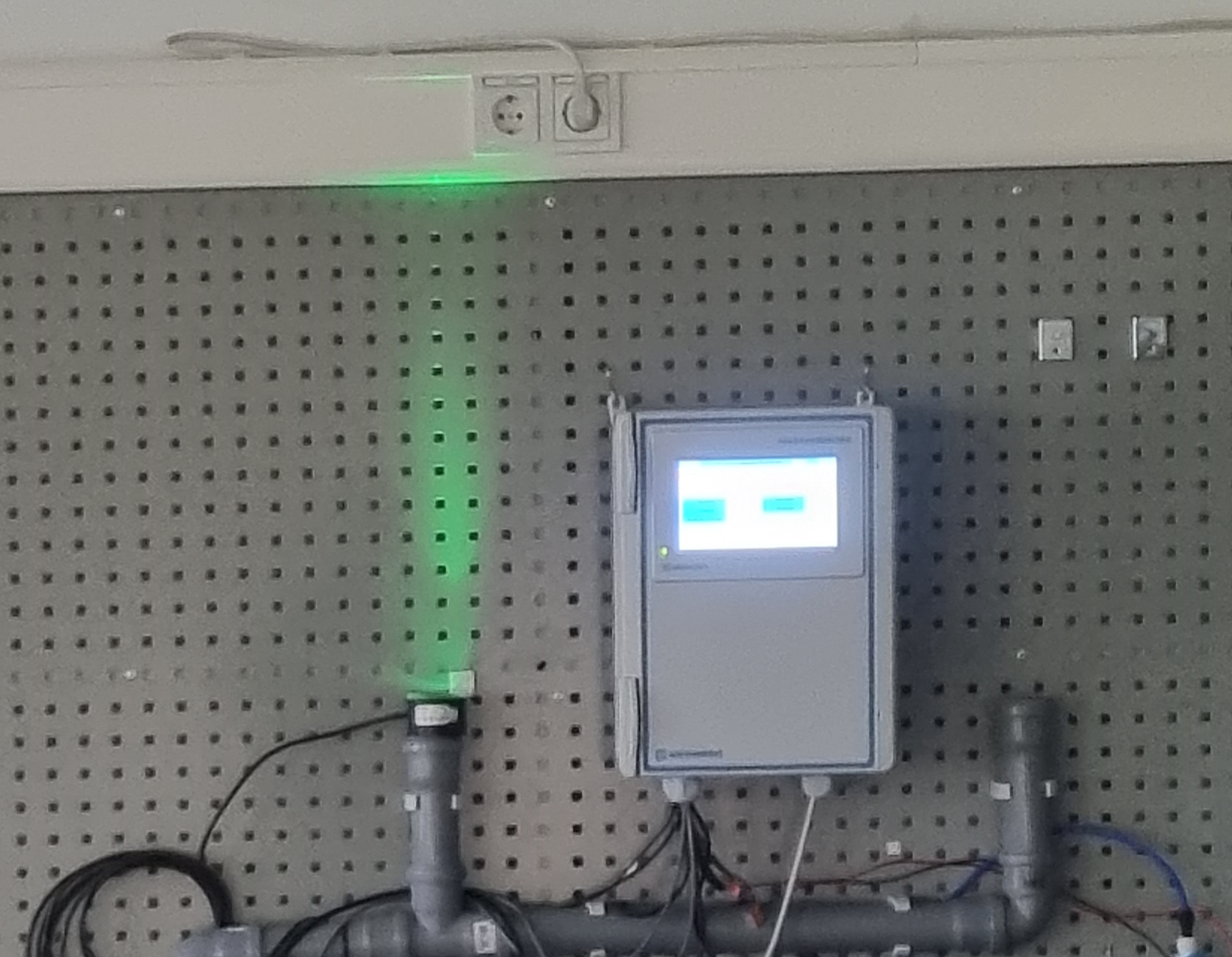

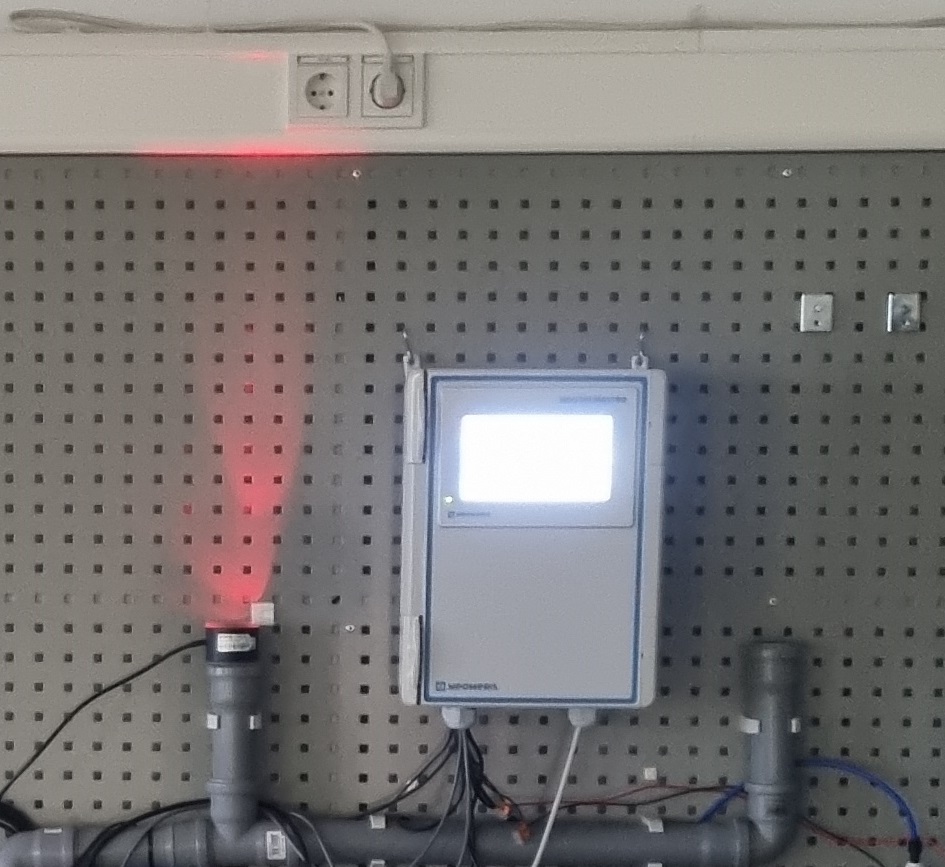

Due to the acrylic glass cover used, the light of the LEDs is widely scattered and the current LED status can be seen from a distance in darker rooms.

Quality Made in Germany.

Standard LED configuration (1 green LED, 1 red LED):

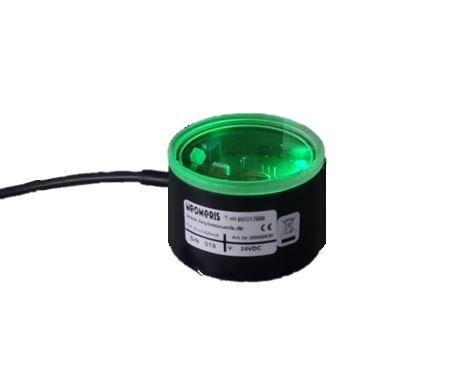

<20 µS/cm = green
>20 µS/cm to <40µS/cm = green/red flashing

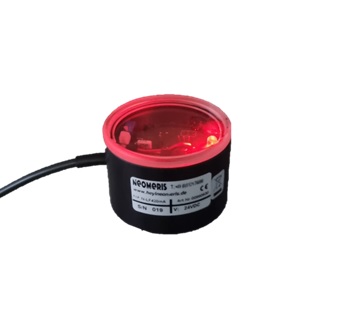

>40 µS/cm = red
Technical data:
Measuring range: according your requirements
Temperature compensation: Linear 2.2 % / K, reference temperature 25°C
Accuracy conductivity: +/-10% of the maximum full scale value
Accuracy temperature: +-1.0 °C
Limit value display: Optical via LED
Analog output: 4-20 mA = 0-... μS/cm (according your needed measuring range)
Power supply: 24 VDC +-10%
Power consumption: < 2.5W
Screw-in thread: 3/4"
Housing: POM (polyoxymethylene)

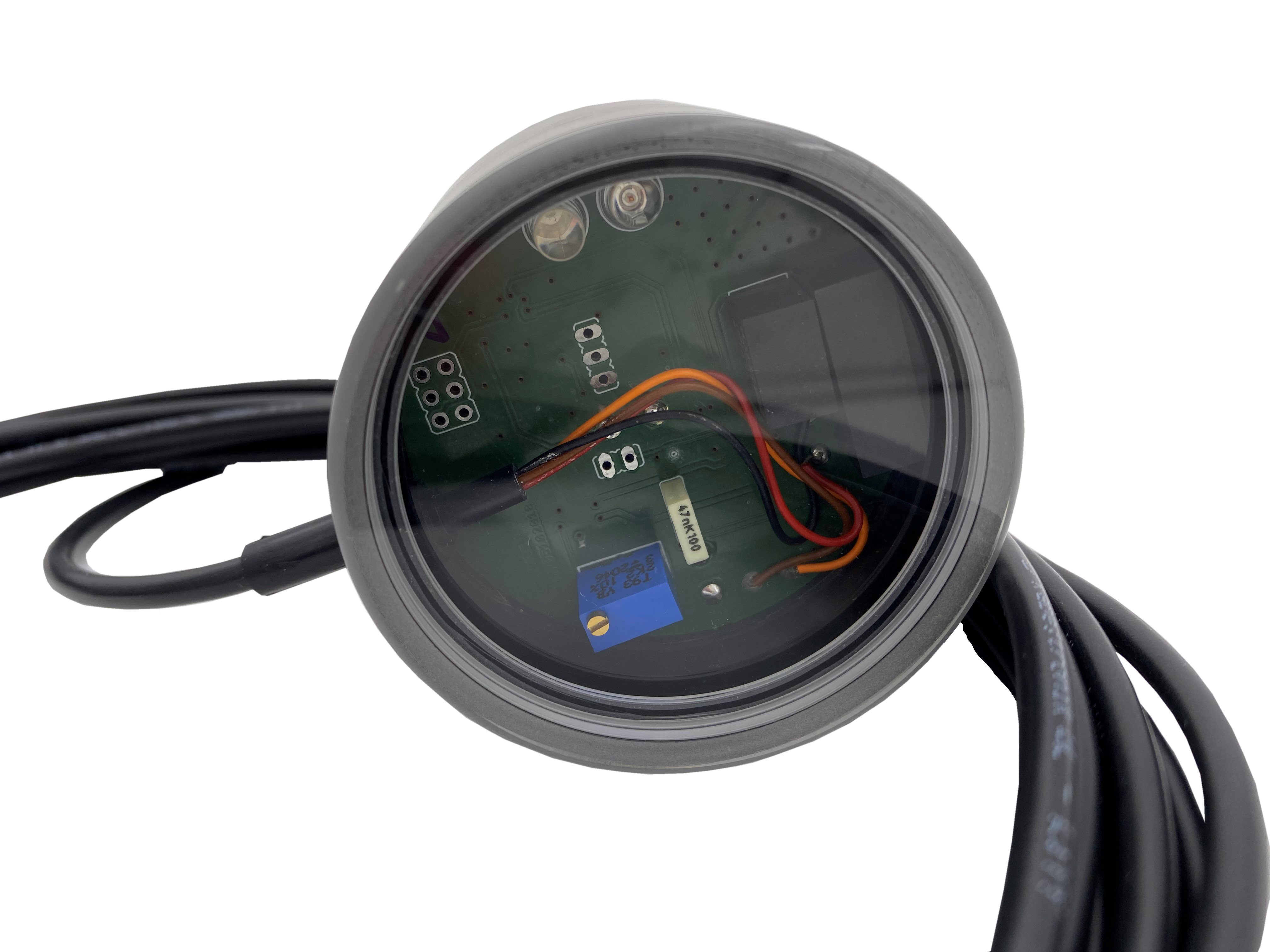

Vision panel: PMMA (acrylic glass)

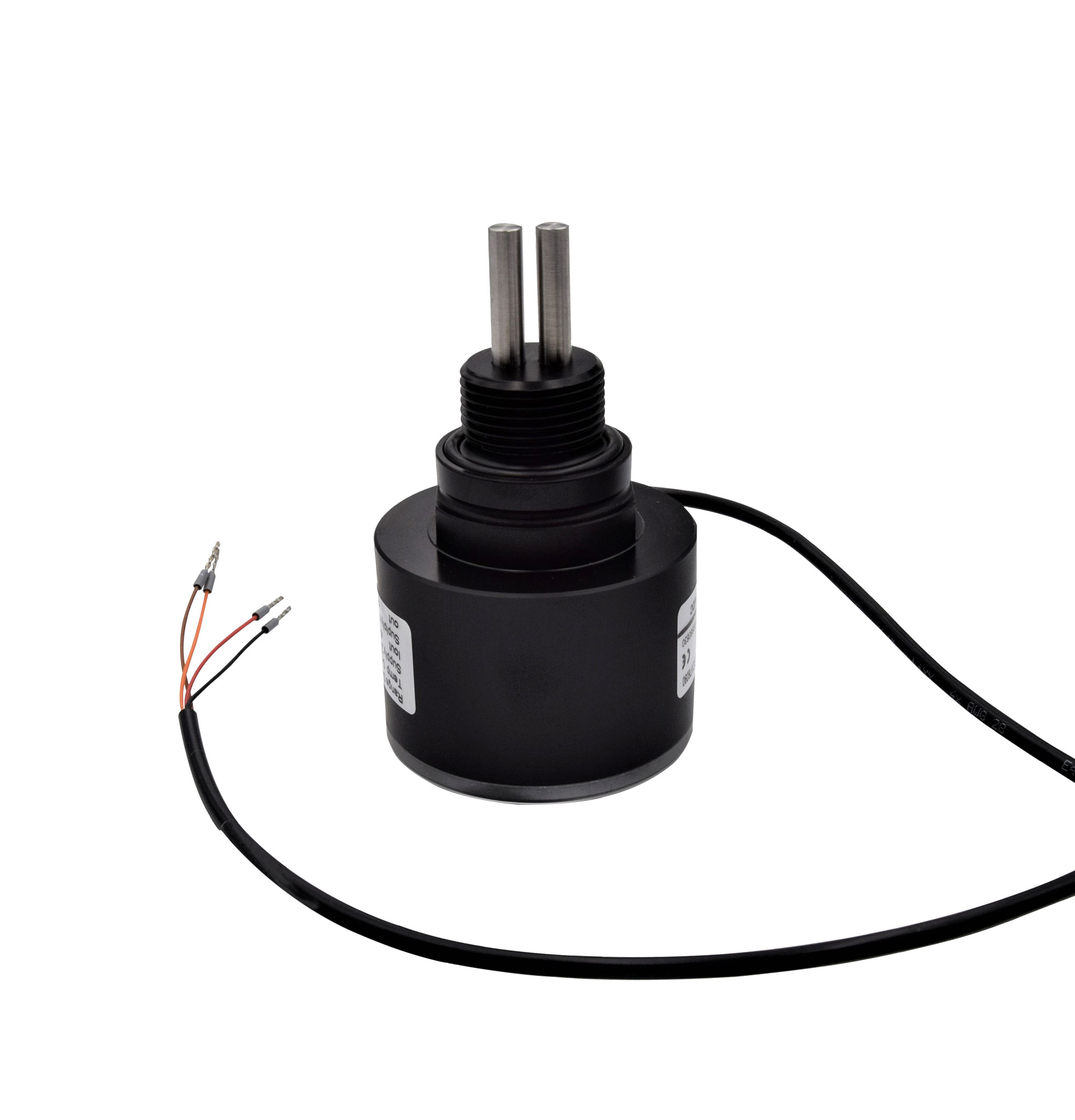

Electrodes: stainless steel 1.457
Dimensions: Diameter 60 mm x 60 mm (top) / 100 mm (total)
Gaskets electrodes: EPDM, 28 x 3 mm
Gasket housing: EPDM, 50 x 2 mm
Application limits: P max: 6 bar; T max: 50 °C
Protection class: IP 65*

Dimensions

Height 8 cm
Length 20 cm
Width 18 cm

Weight

Weight 300 g

Other attributes

Country of origin DE
Customs tariff number 90278930
