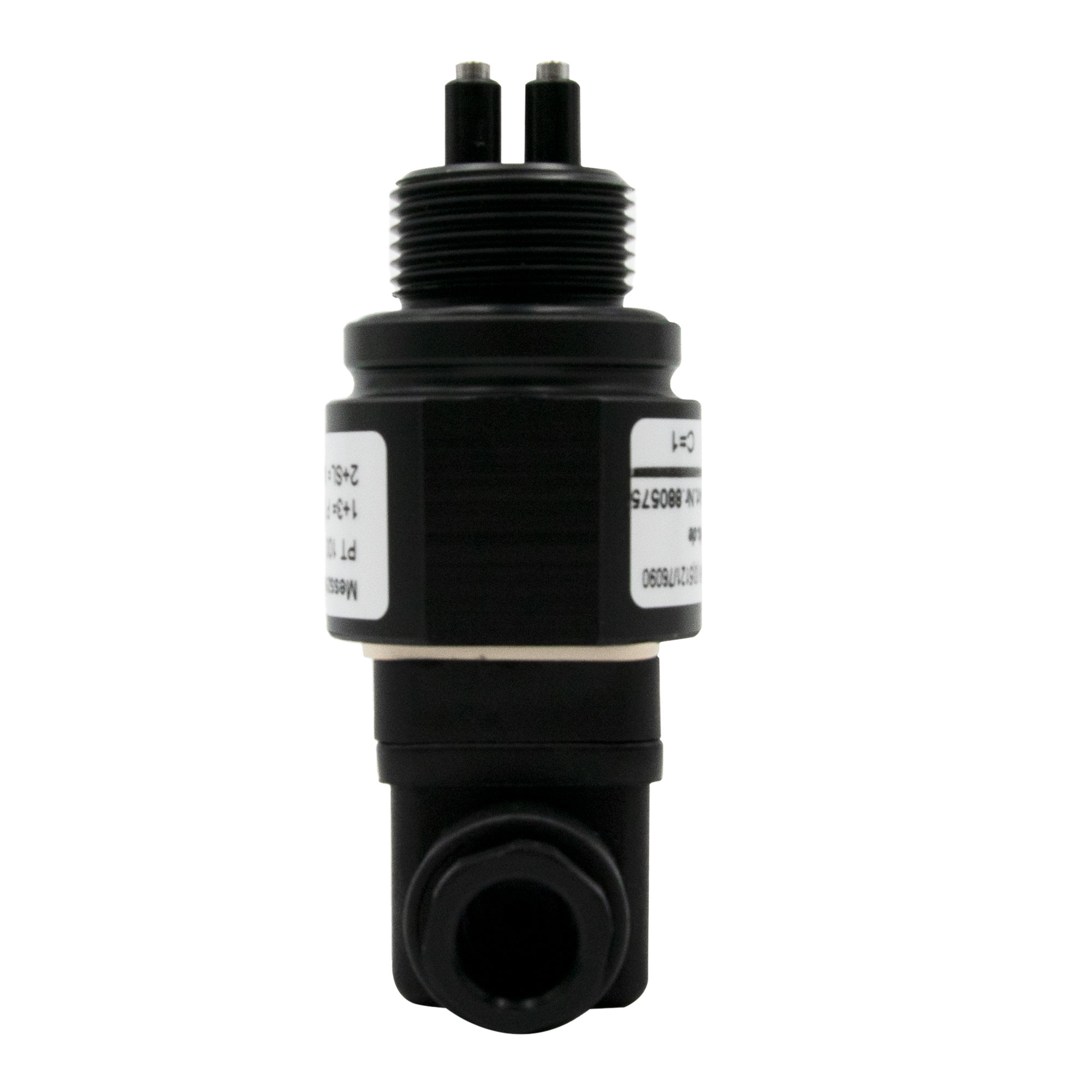

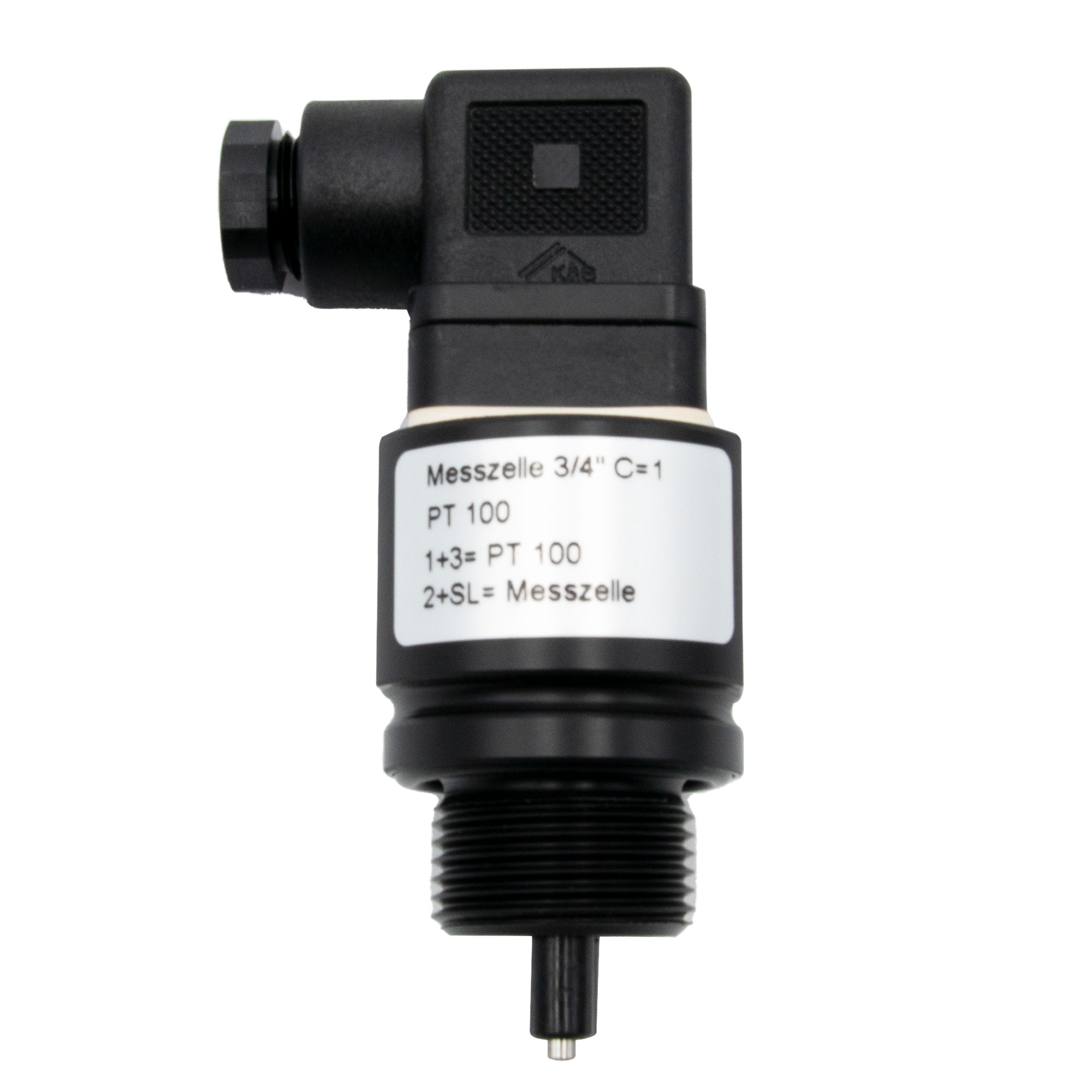

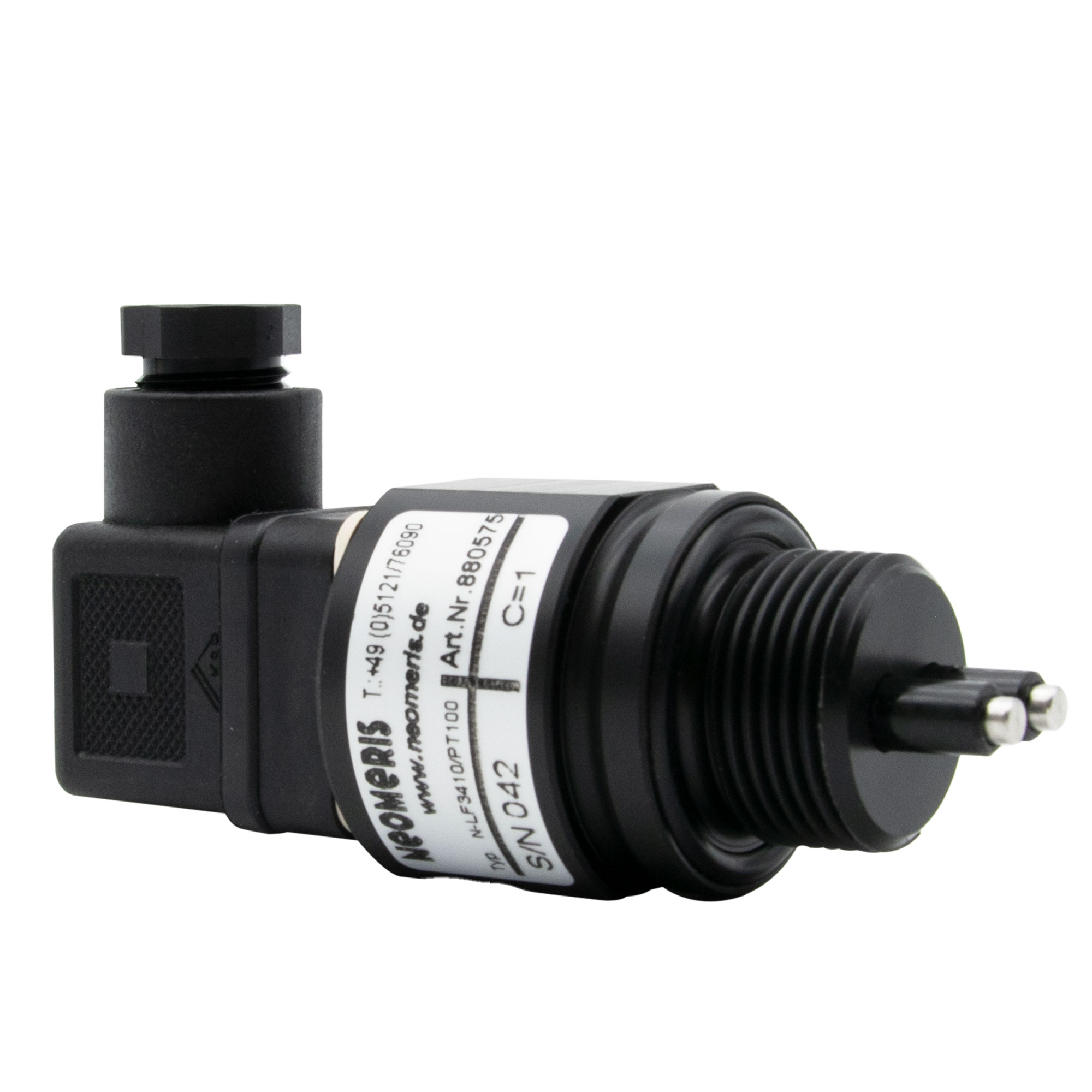

N-LF3410 conductivity measuring cell C=1.0 with PT100, 3/4 inch screw-in cell and solenoid valve connector

Product number: 880575

Product information "N-LF3410 conductivity measuring cell C=1.0 with PT100, 3/4 inch screw-in cell and solenoid valve connector"

Technical data:
Screw-in thread: 3/4"
Material housing: POM black
Material electrodes: V4A 4571
Material O-ring: EPDM
Cell constant: C=1.0 +/- 10%.
Max. Operating pressure: 6 bar
Max. Operating temperature: 60°C
Temperature sensor: PT100
Solenoid valve connector: ST2+SL electrodes
Colour cable green/yellow
St1+St2 PT 100
Colour cable brown/white

Dimensions

Height 3 cm
Length 10,5 cm
Width 5 cm

Weight

Weight 100 g

Other attributes

Country of origin EU
Customs tariff number 90278930

We recommend that you perform a calibration after installation and use our conductivity meter N-LF2000:
