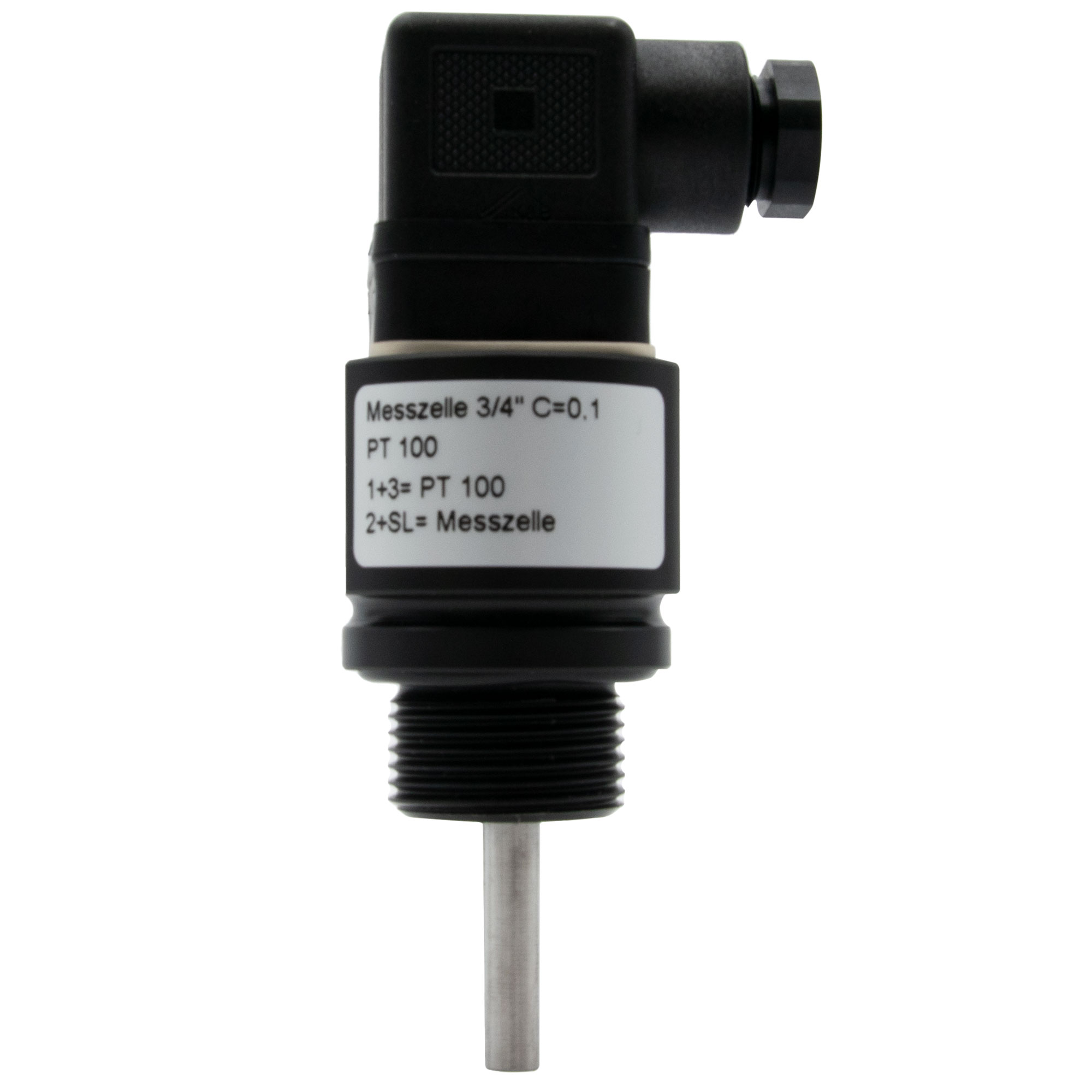

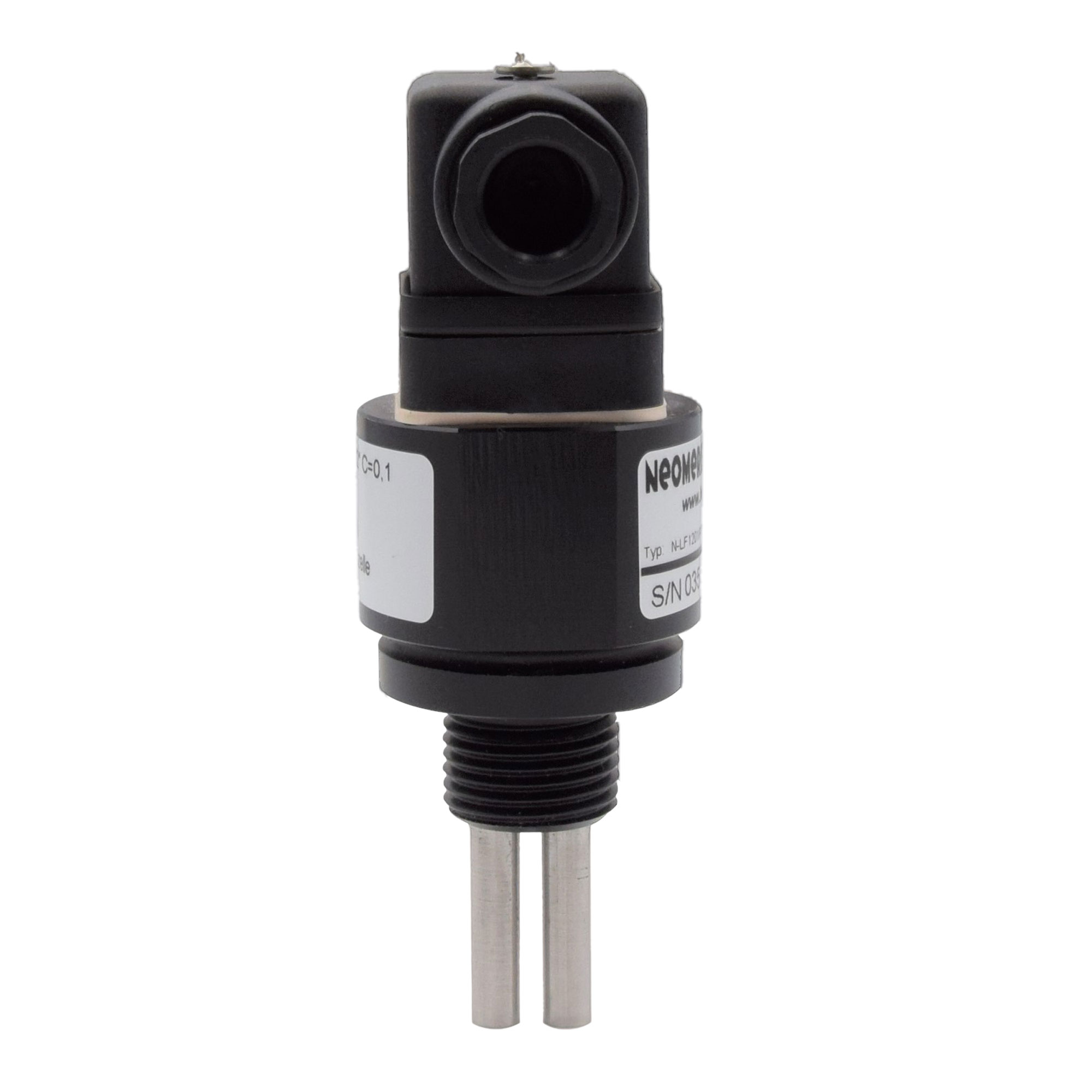

N-LF3401 conductivity measuring cell C=0.1 with PT100, 3/4 inch screw-in cell and solenoid valve connector

Product number: 880574

€117.75*

Please log in to receive your conditions.

Prices excl. VAT plus shipping costs.

Show gross prices
(incl. VAT)

Available, delivery time: 1-2 days

screw-in cel

1/2"

3/4"

measuring range

0-10 / 0-20 / 0-100 / 0-200 µS/cm (K= 0,1)

0-1000 / 0-2000 µS/cm ( K= 1,0)

Product number: 880574

GTIN: 4260682383686

Measuring range: 0-10 / 0-20 / 0-100 / 0-200 µS/cm

Application: for N-LF10 / N-LF100 or N-LF2000

Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.

Product information "N-LF3401 conductivity measuring cell C=0.1 with PT100, 3/4 inch screw-in cell and solenoid valve connector"

Technical data:

Screw-in thread: 3/4"

Material housing: POM black

Material electrodes: V4A 4571

Material O-ring: EPDM

Cell constant: C=0.1 +/- 10%.

Max. Operating pressure: 6 bar

Max. Operating temperature: 60°C

Temperature sensor: PT100

Solenoid valve connector: ST2+SL electrodes

Colour cable green/yellow

St1+St2 PT 100

Colour cable brown/white

Dimensions

Height	4,4 cm
Length	13 cm
Width	9 cm

Weight

Weight	115 g

Other attributes

Country of origin	DE
Customs tariff number	90278930

We recommend that you perform a calibration after installation and use our conductivity meter N-LF2000:
