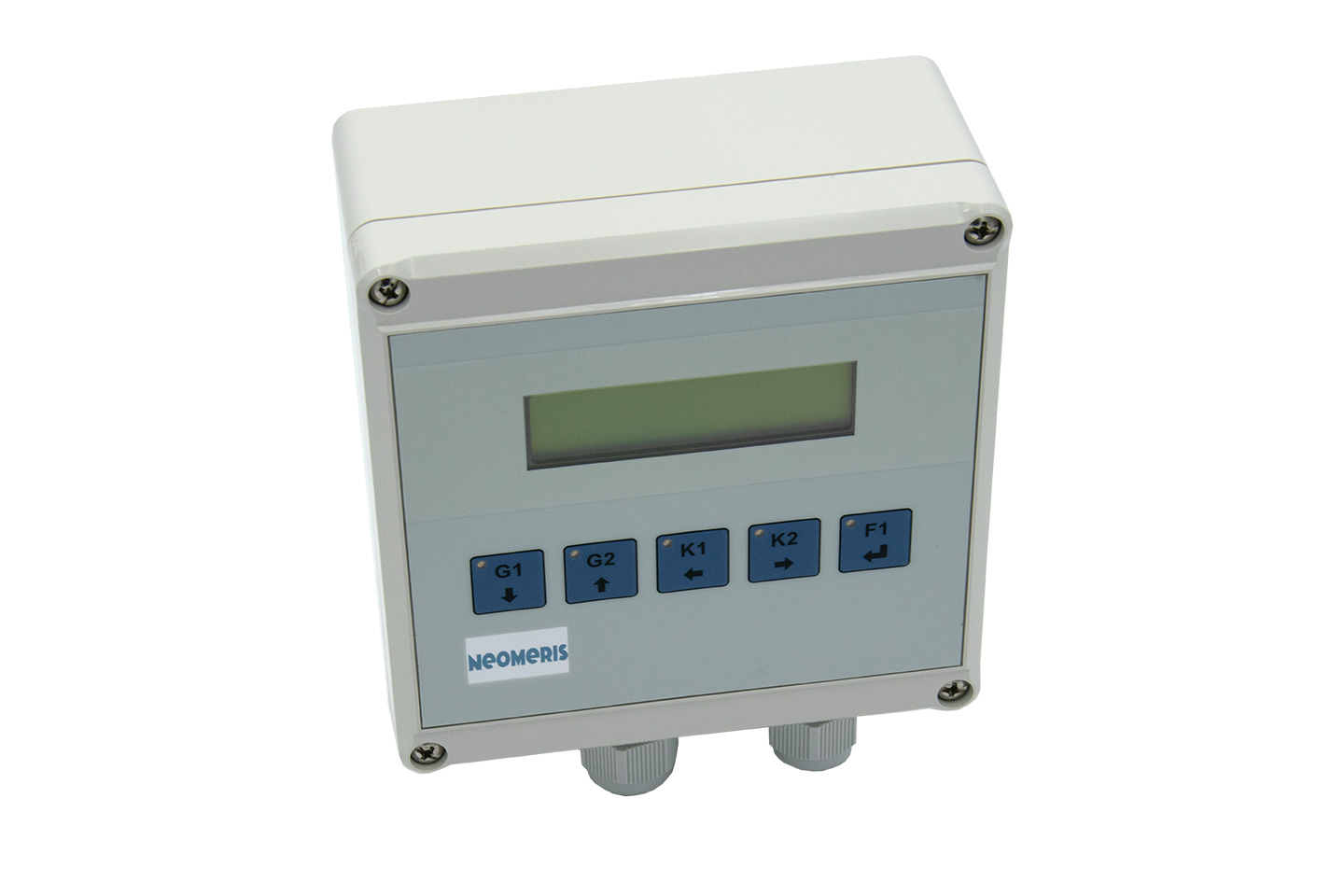

N-LF2000, conductivity measuring instrument 0-20/200/2000μS/cm in wall mounted housing
Product number: 880571
€491.30*
Please log in to receive your conditions.
Available in 5 days, delivery time 1-2 days
Product number:
880571
GTIN:
4260682383747
Measuring range:
0 – 20 / 200 / 2000 μS/cm
Application:
Demineralisation, reverse osmosis, desalination, cooling water recirc., phase separation
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Product information "N-LF2000, conductivity measuring instrument 0-20/200/2000μS/cm in wall mounted housing"
Instrument for measuring the electrical conductivity of aqueous solutions in conjunction with two-electrode measuring cells. Designed as wall-mounted version.
- Operation at 230 V AC or 24 V DC possible
- 2 potential-free relays - changeover switch for limit value switching (hysteresis 5 % fixed)
- Alphanumeric display with 2 x 16 characters
- Temperature measurement and temperature display from 0.0 °C to 90.0 °C when a Pt100 is connected
- Switchable temperature compensation with 2.2 % / K up to 90 °C
- Monitoring of the temperature sensor for sensor break and error message on the display
- Switchable mode of operation for relay control
- Output of the measured value with 0 - 10 V and 4 - 20 mA
Technical data
Measuring ranges: dependent on measuring cell and amplification
Temperature compensation: Linear 2.2 % / K, can be switched off, reference temperature 25 °C
Limit value displays: Optical by means of 2 LEDs, 2 limit values adjustable over the measuring range
Limit value outputs: 1 potential-free changeover contact, max. 6 A / 250 V AC
1 change-over contact to 230V AC (terminal 21)
Analog outputs: 0 - 10 V, Ra > 1 kOhm; corresponds to 0 - 20 / 200 / 2000 μS/cm
4 - 20 mA, Ra < 500 Ohm; corresponds to 0 - 20 / 200 / 2000 μS / cm
Power supply: 22 - 26 V DC, protected against reverse polarity, electrically isolated,
1000 V insulation voltage, or 230 V 50/60 Hz
Power consumption: Approx. 3 W / 3 VA
Protection class: IP 65
Housing: Surface-mounted housing (polycarbonate) 120 x 122 x 57 mm
Connections: 4 x M16 cable entries on the bottom of the housing.
Dimensions
| Height | 6,5 cm |
|---|---|
| Length | 26 cm |
| Width | 12 cm |
Weight
| Weight | 400 g |
|---|
Other attributes
| Country of origin | DE |
|---|---|
| Customs tariff number | 90278930 |
