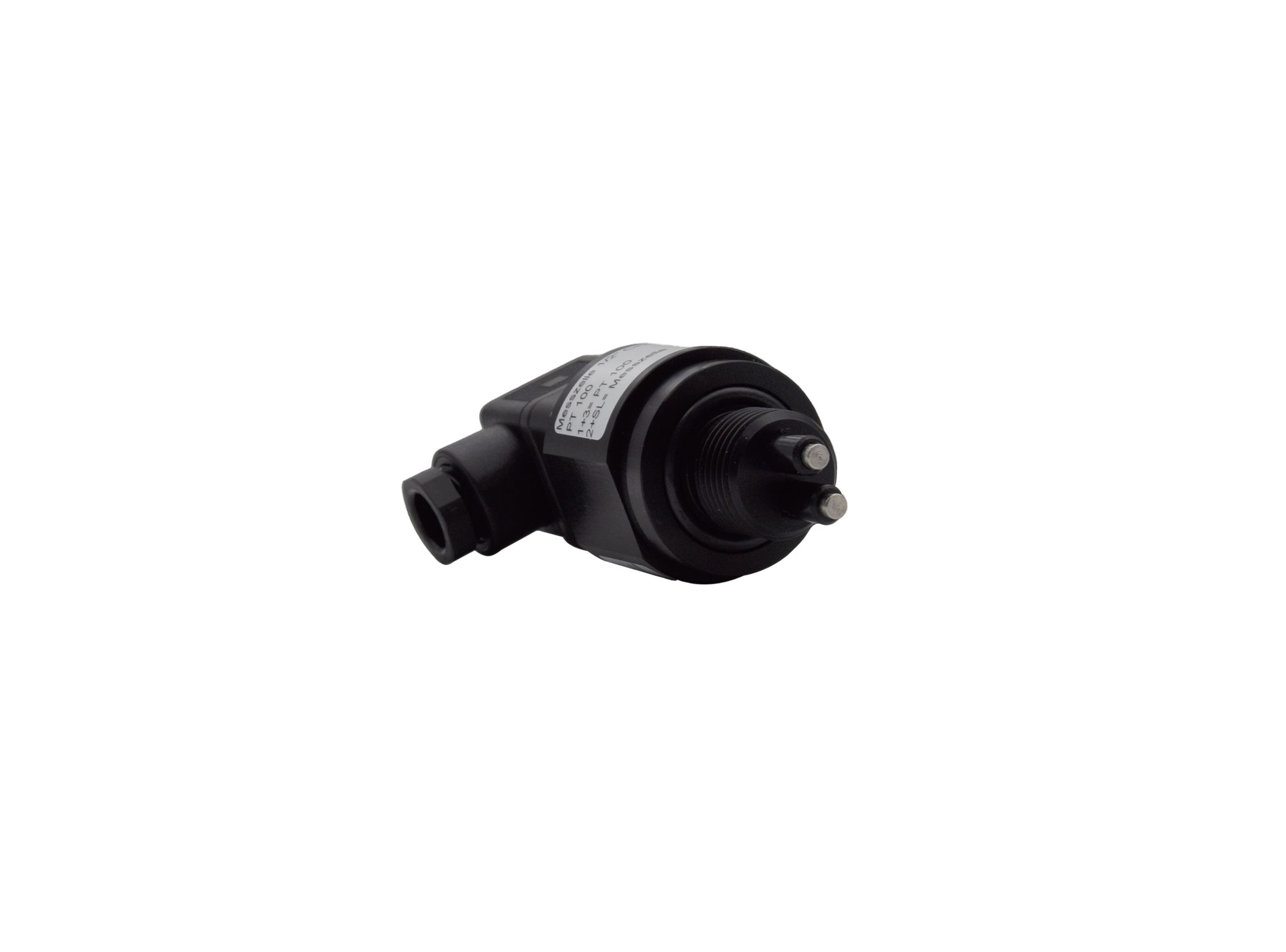

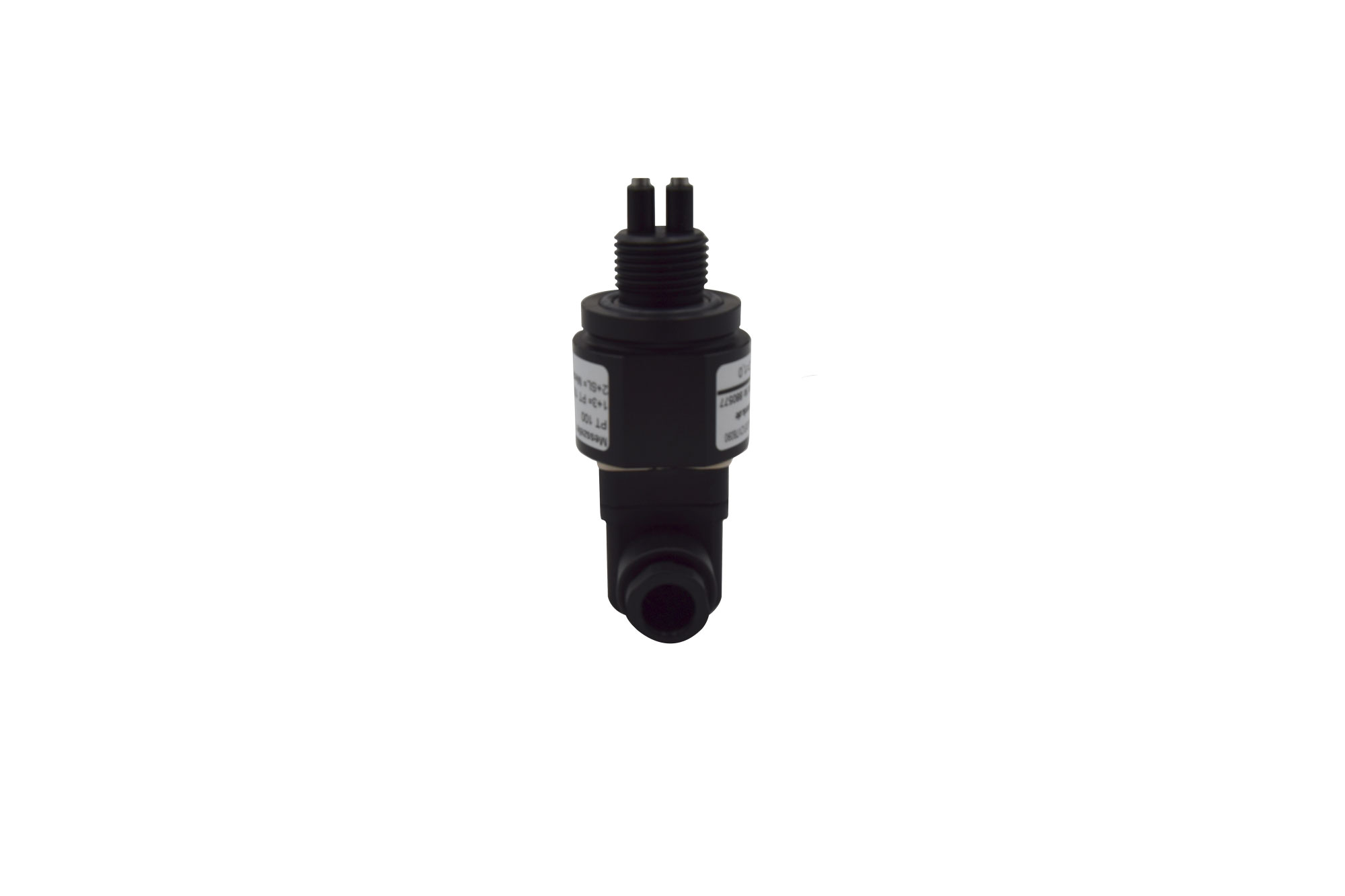

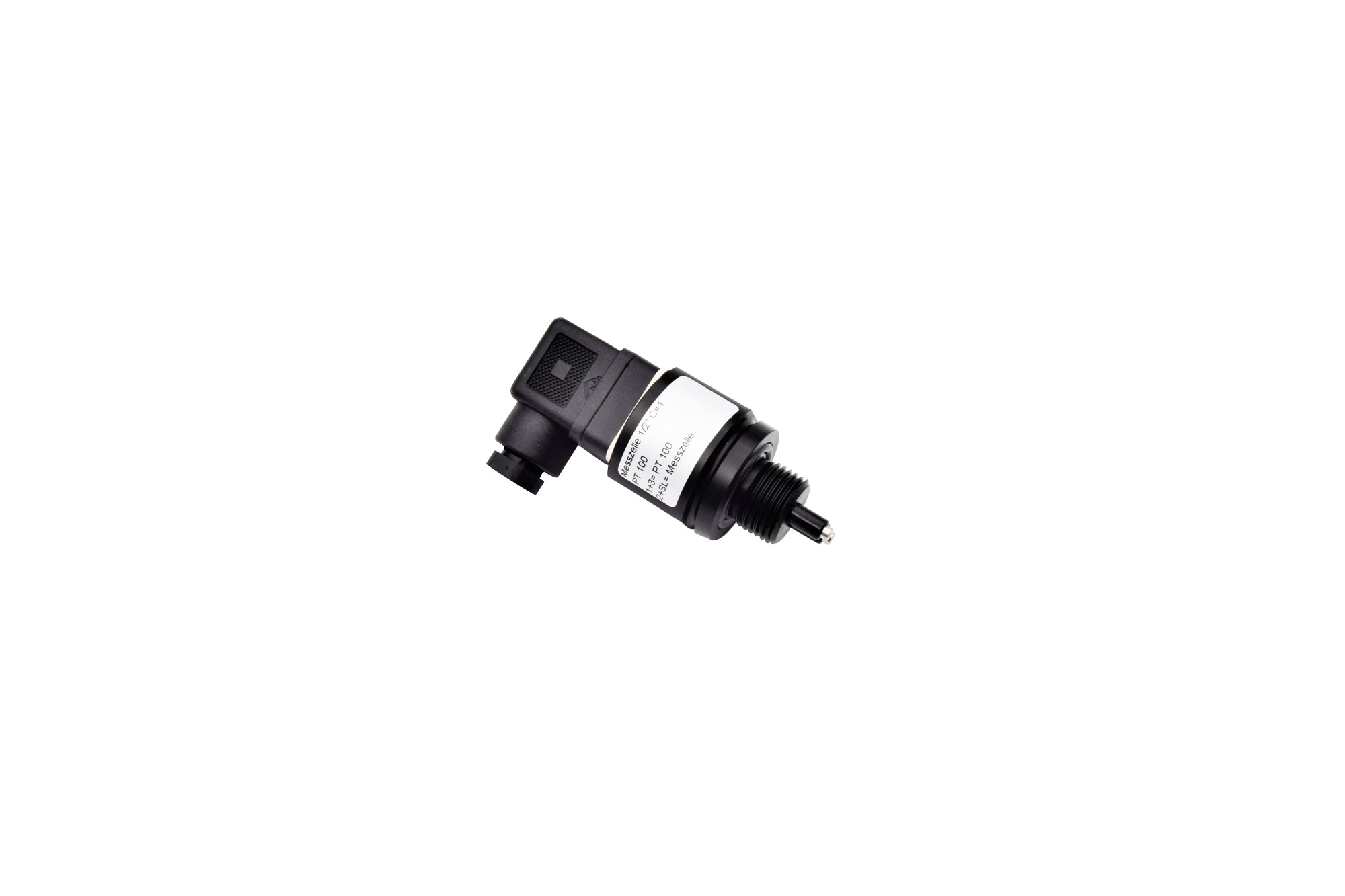

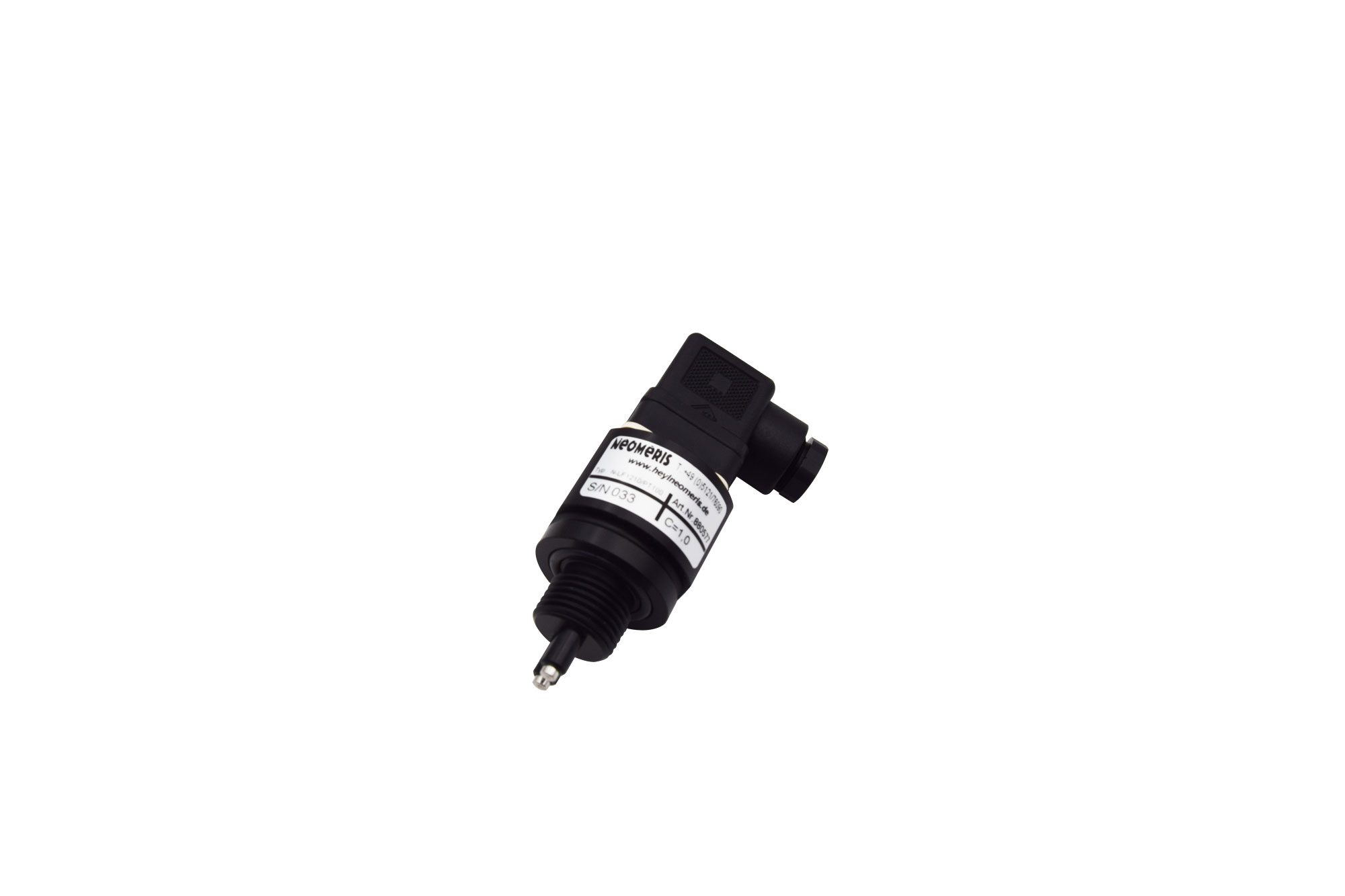

N-LF1210 conductivity measuring cell C=1.0 with PT100, 1/2 inch screw-in cell and solenoid valve connector

Product number: 880577

€119.45*

Please log in to receive your conditions.

Prices excl. VAT plus shipping costs.

Show gross prices
(incl. VAT)

Available in 30 days, delivery time 1-2 days

screw-in cel

1/2"

3/4"

measuring range

0-10 / 0-20 / 0-100 / 0-200 µS/cm (K= 0,1)

0-1000 / 0-2000 µS/cm ( K= 1,0)

Product number: 880577

GTIN: 4260682383662

Measuring range: 0-1000 / 0-2000 µS/cm

Application: for N-LF1000 or N-LF2000

Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.

Product information "N-LF1210 conductivity measuring cell C=1.0 with PT100, 1/2 inch screw-in cell and solenoid valve connector"

Technical data:

Screw-in thread: 1/2 "

Material housing: POM black

Material electrodes: V4A 4571

Material O-ring: EPDM

Cell constant: C=1.0 +/- 10%.

Max. Operating pressure: 6 bar

Max. Operating temperature: 60°C

Temperature sensor: PT100

Solenoid valve connector: ST2+SL electrodes

Colour cable green/yellow

St1+St2 PT 100

Colour cable brown/white

Dimensions

Height	5 cm
Length	12 cm
Width	8 cm

Weight

Weight	100 g

Other attributes

Country of origin	DE
Customs tariff number	90278930

We recommend that you perform a calibration after installation and use our conductivity meter N-LF2000:

Conductivity calibration solution

Conductivity calibration solution

Product number: 890697

Kalibierlösung: 1413 μS/cm (±1% @25°C) | Size of bottle: 250 ml

High quality conductivity calibration solution to calibrate your electrodes Our 250 ml, 500 ml and 1000 ml bottle is characterized by a special hygienic closure, which protects the conductivity calibration solution from contamination. To provide the required calibration solution, simply squeeze the bottle together and enough conductivity calibration solution is delivered to the upper part of the bottle to perform a calibration.

€9.29*

Tip

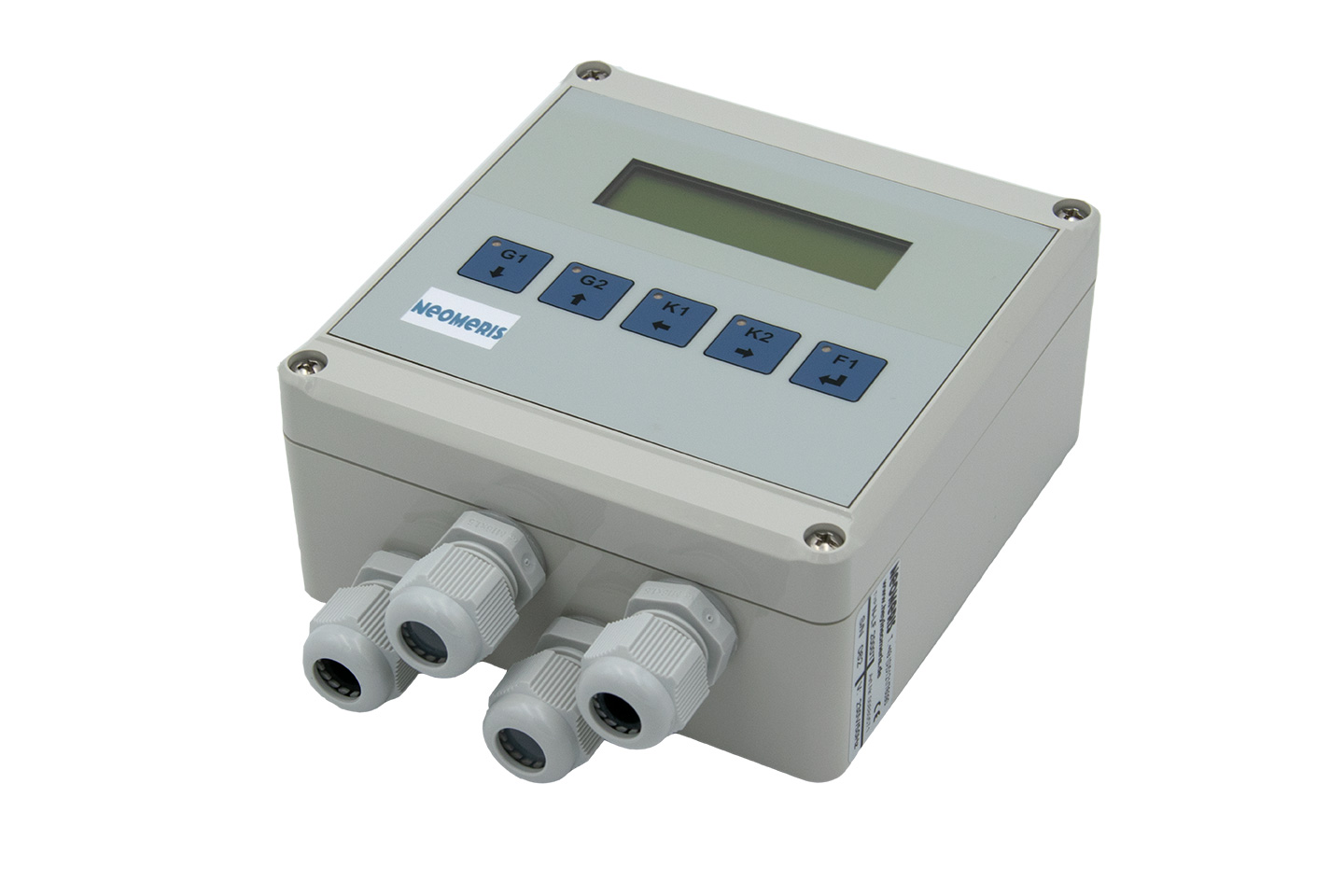

N-LF2000, conductivity measuring instrument 0-20/200/2000μS/cm in wall mounted housing

N-LF2000, conductivity measuring instrument 0-20/200/2000μS/cm in wall mounted housing

Product number: 880571

Instrument for measuring the electrical conductivity of aqueous solutions in conjunction with two-electrode measuring cells. Designed as wall-mounted version.Operation at 230 V AC or 24 V DC possible2 potential-free relays - changeover switch for limit value switching (hysteresis 5 % fixed)Alphanumeric display with 2 x 16 charactersTemperature measurement and temperature display from 0.0 °C to 90.0 °C when a Pt100 is connectedSwitchable temperature compensation with 2.2 % / K up to 90 °CMonitoring of the temperature sensor for sensor break and error message on the displaySwitchable mode of operation for relay controlOutput of the measured value with 0 - 10 V and 4 - 20 mA Technical data Measuring ranges: dependent on measuring cell and amplification Temperature compensation: Linear 2.2 % / K, can be switched off, reference temperature 25 °CLimit value displays: Optical by means of 2 LEDs, 2 limit values adjustable over the measuring range Limit value outputs: 1 potential-free changeover contact, max. 6 A / 250 V AC1 change-over contact to 230V AC (terminal 21) Analog outputs: 0 - 10 V, Ra > 1 kOhm; corresponds to 0 - 20 / 200 / 2000 μS/cm 4 - 20 mA, Ra < 500 Ohm; corresponds to 0 - 20 / 200 / 2000 μS / cm Power supply: 22 - 26 V DC, protected against reverse polarity, electrically isolated, 1000 V insulation voltage, or 230 V 50/60 Hz Power consumption: Approx. 3 W / 3 VA Protection class: IP 65 Housing: Surface-mounted housing (polycarbonate) 120 x 122 x 57 mm Connections: 4 x M16 cable entries on the bottom of the housing.

€491.30*

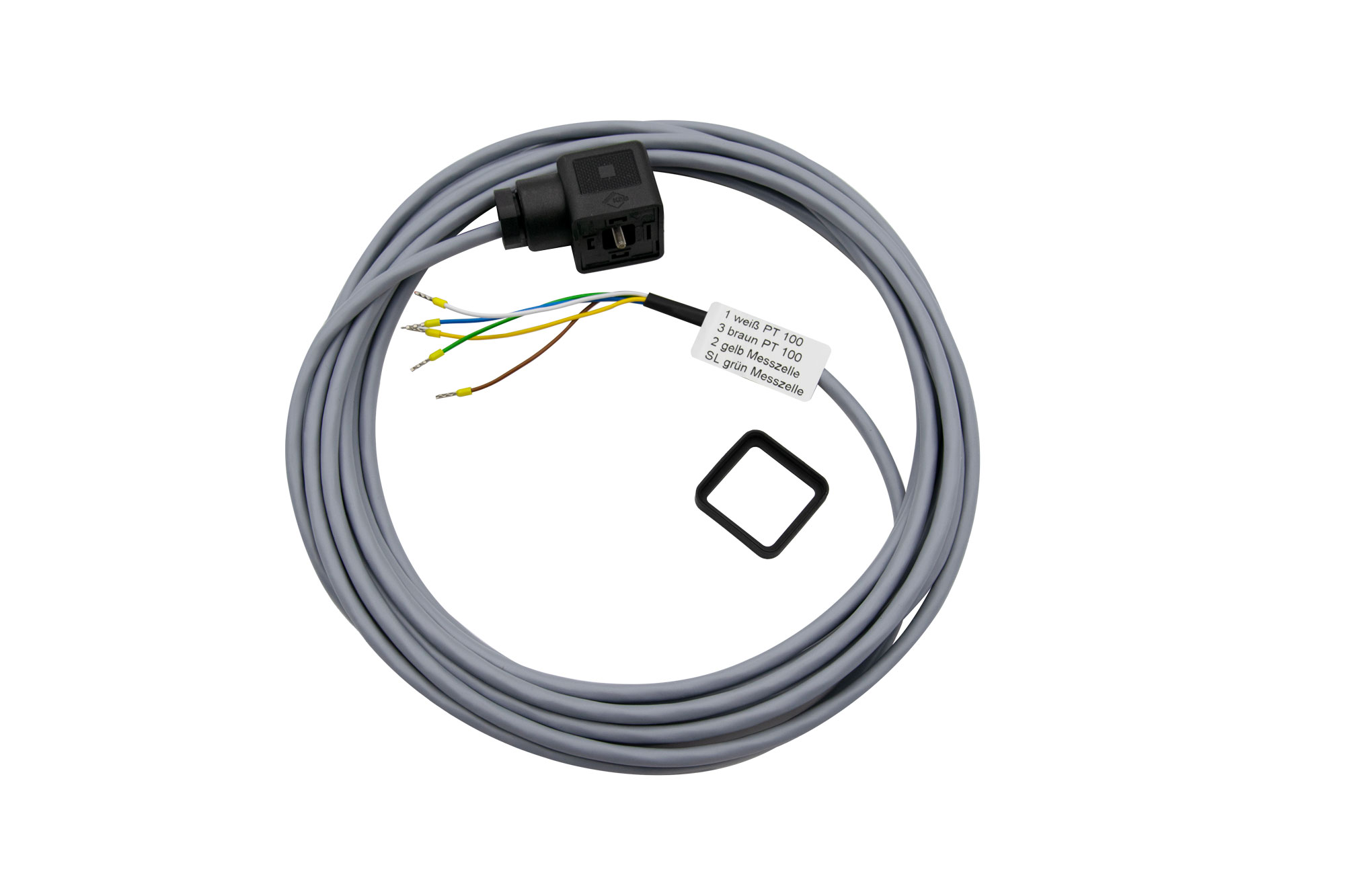

6 meter connection cable for N-LF measuring cells, 4-core 0.25² with shielding
