JUMO AQUIS 500 pH - transmitter/controller in surface-mounted housing, 1x 0(4)-20mA / 0(2) to 10V output, AC/DC 20 to 30V power supply

Product number: 800053

€783.20*

Please log in to receive your conditions.

Prices excl. VAT plus shipping costs.

Show gross prices
(incl. VAT)

Available in 10 days, delivery time 1-2 days

Unit selection

Product number: 800053

GTIN: 4260682386212

Measurement parameters: pH value, ORP voltage or ammonia concentration measurement

Application: Universally applicable in water and waste water management, industrial, process and waste water, drinking, well and surface water, leakage monitoring in cooling systems

Our comment: Under the tab "Selection matrix & technical data" you will find an overview of the respective versions

Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.

Product information "JUMO AQUIS 500 pH - transmitter/controller in surface-mounted housing, 1x 0(4)-20mA / 0(2) to 10V output, AC/DC 20 to 30V power supply"

Version 2: stock version: type 202560/20-888-000-310-000-23/000 ; part-no. 00480050

The unit is used for measuring/controlling the pH-value, the redox-voltage or the NH3-(ammonia)-concentration. The function can be switched directly on the unit. Depending on the measurand, combination electrodes (e.g. pH/redox combination electrodes, gas-sensitive sensors) or separate versions (glass/metal electrodes with separate reference electrode) can be connected. The second input variable is the temperature measurement, which can be carried out with a Pt 100/1000, for example. Automatic temperature compensation is thus possible for the measured variables pH value and NH3. The units are operated via clear keys and a large LC graphic display. This display enables good readability of the measured value. The display of the parameters in plain text makes configuration easier for the operator and supports correct programming of the unit. The modular design of the unit allows it to be adapted to the requirements of the application. Up to four outputs are available.

Special features

direct switching option for pH value, redox voltage or NH3 (ammonia) concentration
Automatic temperature compensation
Large LC graphic display with backlighting
Display selectable: large digits, bar graph or tendency display
Solderless connection technology - Calibration options depending on measurand one/two/three-point calibration
calibration logbook
Impedance measurement can be activated for pH measurement
Asymmetrical and symmetrical connection of pH sensors
Possibility of connecting pH ISFET sensors through integrated output for sensor power supply
Protection class IP67 for surface mounting, protection class IP65 for control cabinet mounting
User languages switchable German, English, French; further languages can be loaded via setup program
Through setup program: convenient programming, system documentation, reloading of further user languages

Dimensions

Height	14 cm
Length	34,5 cm
Width	23 cm

Weight

Weight	1,4 kg

Other attributes

Country of origin	DE
Customs tariff number	90278930

Downloads:

JUMO

Selection Matrix & Technical Specifications

Selection Matrix:

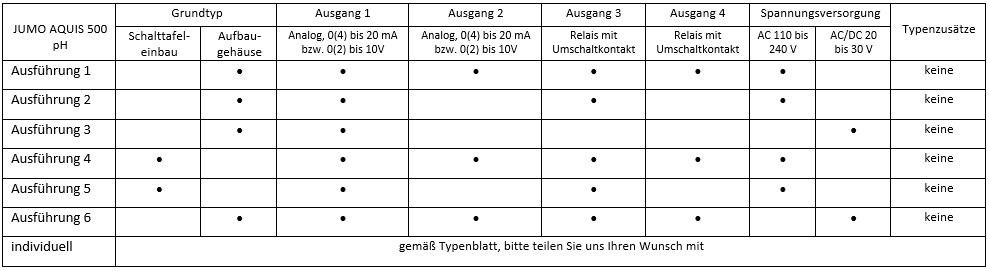

JUMO AQUIS 500 pH	Basic type		Output 1	Output 2	Output 3	Output 4	Power supply		Extra codes
JUMO AQUIS 500 pH	Panel mounting	Surface-mounted housing	analogue, 0(4) to 20 mA ref. 0(2) to 10V	analogue, 0(4) to 20 mA ref. 0(2) to 10V	Relay with switch contakt	Relay with switch contakt	AC 110 to 240 V	AC/DC 20 to 30 V	Extra codes
Variant 1		•	•	•	•	•	•		none
Variant 2		•	•		•		•		none
Variant 3		•	•					•	none
Variant 4	•		•	•	•	•	•		none
Variant 5	•		•		•		•		none
Variant 6		•	•	•	•	•		•	none
individual	according to type sheet, please inform us of your request

Technical Specifications:

Inputs
Main input	Measuring range/Regulation range			Accuracy		Temperature impact
pH value	-1 to +15 pH			£ 0,3 %		0,2 %/10 K
ORP voltage	-1500 to +1500 mV			£ 0,3 %		0,2 %/10 K
NH₃ (Ammonia)	0 to 9999 ppm			£ 0,3 %		0,2 %/10 K
Side input
Temperature Pt100/1000 (automatic detection)	-50 to +250 °C^a			£ 0,5 °C		0,05 %/10 K
Temperature NTC/PTC	max. 4 kW Input via table with 20 value pairs			£ 0,3 %^b		0,05 %/10 K
^a Switchable to °F. ^bDepending on the support points.
Temperature compensation
Measured variable	Compensation				Range^a
pH value	yes				-30 to +150 °C (from software version 212.11.02)
					-10 to +150 °C (until software version 212.11.01)
ORP voltage	no				n/a
NH₃(Ammonia)	yes				-20 to +50 °C
pH antimony	yes				-10 to +80 °C
^a Observe the operating temperature range of the sensor!
Measuring circuit monitoring
Inputs	Underrange / Overrange			Short circuit		Wire break
pH value	yes			yes^a		yes^a
NH₃(Ammonia)	yes			no		no
pH antimony	yes			no		no
Temperature	yes			yes		yes
^a During pH measurement, the sensor can be monitored for short-circuits and line breaks by activating impedance measurement.
Impedance measurement
The impedance measurement can be activated optionally. Since it is dependent on some boundary parameters, the following points must be observed: Only glass-based sensors are permitted. The sensors must be connected directly to the transmitter. It is not permissible to use an impedance converter in the measuring circuit! The maximum permissible cable length between sensor and transmitter is 10 m. Liquid resistances are directly included in the measurement result. It is therefore recommended to activate the measurement in liquids from a minimum conductivity of approx. 100 µS/cm.
Binary Input
Activation	by potential-free contact
Function	Key lock HOLD Alarm suppression
Regulator
Regulator type	Limit comparators, limit controllers, pulse width controllers, pulse frequency controllers, three-point stepping controllers, continuous controllers
Regulator structure	P/PI/PD/PID
A/D-Converter	Dynamic resolution up to 14 bit
Sampling time	500 ms
Analoguee Outputs (max. 2)
Output type	Signal range		Accuracy		Temperature impact		permissible load resistance
Power signal	0/4 to 20 mA		£ 0,25 %		0,08 %/10 K		£ 500 W
Voltage signal	0 to 10 V		£ 0,25 %		0,08 %/10 K		£ 500 W
The analogue outputs behave according to the recommendation of NAMUR NE43. They are galvanically isolated, AC 30 V / DC 50 V.
Switching outputs (maximum two changeover contacts)
Nominal load	3 A/AC 250 V (resistive load)
Contact lifetime	>2 × 105 switches at nominal load
Electrical Specifications:
Power supply	AC 110 to 240 V; -15/+10 %; 48 to 63 Hz AC/DC 20 to 30 V; 48 to 63 Hz DC12 to 24 V; +/-15 % (Connection only permitted to SELV/PELV circuits)
Power consumption	approx. 14 VA
Electric safety	DIN EN 61010, Part 1 Overvoltage category III^a, Pollution level 2
Data backup	EEPROM
Electrical connection	Screw terminals Wire cross-section max. 2.5 mm2 (Power supply, relay outputs, sensor inputs) Wire cross-section max. 1.5 mm2 (analogue outputs; supply ISFET)
^a Not valid for protective extra-low voltage of the power supply variant DC 12 to 24 V.
Housing
Material	ABS
Wire feed	Wire glands, max. 3 × M16 and 2 × M12)
Special Feature	Venting element to prevent condensation
Environmental temperature range (Accuracy specifications are adhered to in this range)	-10 to +50°C
Operating temperature range (Function of the unit is given)	-15 to +65°C
Storage temperature range	-30 to +70°C
Climate resistance	rel. Humidity £ 90 % annual average without condensation (based on DIN EN 60721 3-3 3K3)
Protection classes according to EN 60529	Surface-mounted housing: IP67 Panel mounting: front IP65, rear IP20
Swinging proof	according to DIN EN 60068-2-6
Weight	Surface-mounted housing: approx. 900 g Control cabinet installation: approx. 480 g
Dimensions	See type sheet
Approvals/Mark of conformity
Mark of conformity	Test centre	Certificates/Test numbers			Test basis		applies to
c UL us	Underwriters Laboratories	E 201387			UL 61010-1		all variants
