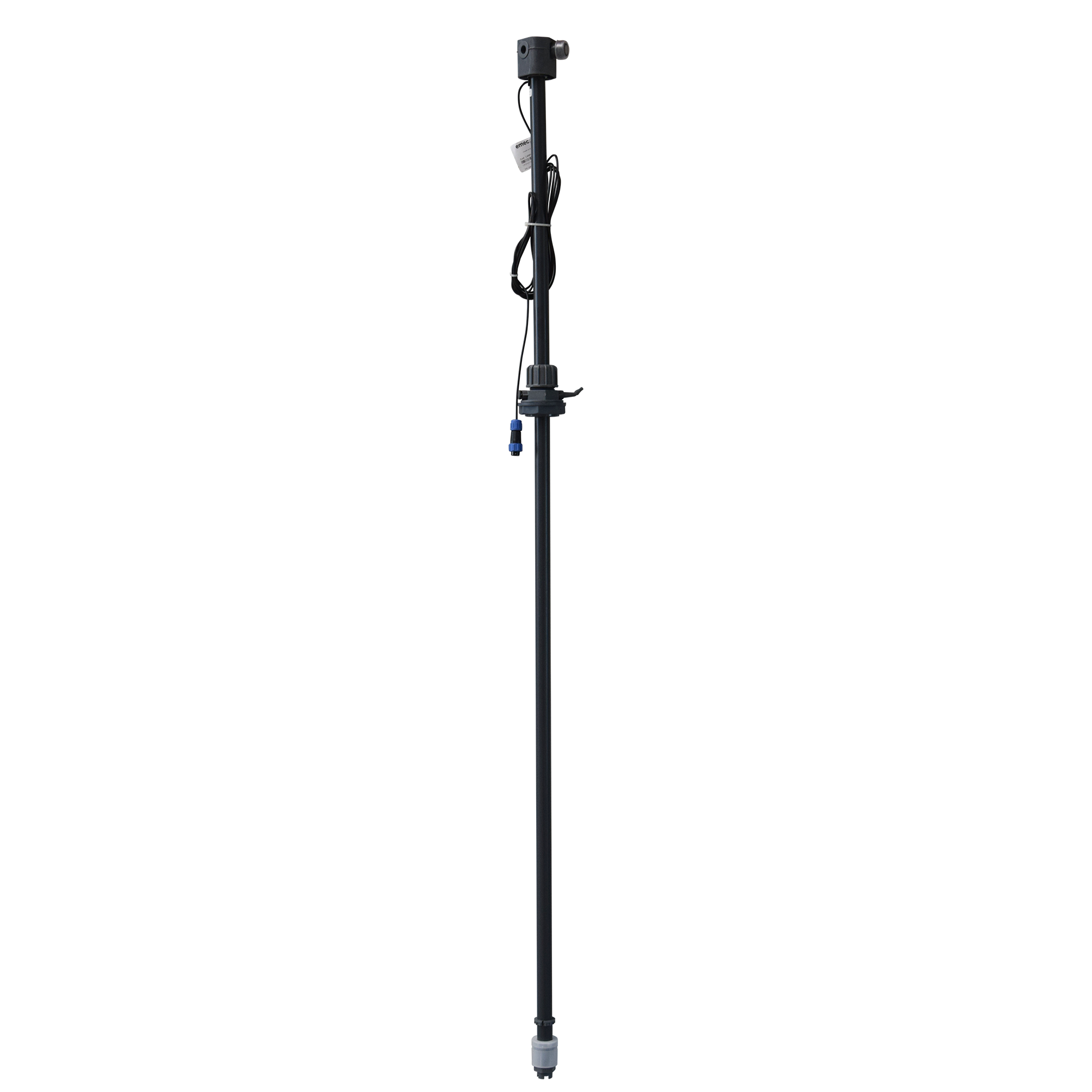

Suction lance for extracting a medium directly from a supply container (canister/IBC/CNT tank/barrel)Foot valve with pre-filter and non-return valve. The level switch generates a digital empty signal. Venting nipple 4mm for return of venting hose from dosing pump or overpressure/multifunction valve.Our suction lances can be adjusted in height, this means that, for example, instead of pumping from a 50 litre container, you can also pump from a 10, 20 or 30 litre container with the 40cm suction lance.Series: LASP4Material O-ring: EPDM (neutral) or FP (Viton)Immersion length: 40cm, 75cm or 122cmConnection on the unit side: M12 or BNCThread/hose connection (mm): 1/2 4x6 (suction capacity max 10l/h)Number of suction connections: 1-suction connectionMounting connection: C61 canister connection (for 40cm suction lance) or mounting connection 1 1/2" CNT/IBC (for 122cm suction lance)Number of floats/switching direction/electrical connection: 1st level/N.O/M12(PRIUS/PRISMA)Length of connection cable: 3.5mIntake filter: LASP4Special feature: Valve ball ceramic

Suction lance for extracting a medium directly from a supply container (canister/IBC/CNT tank/barrel)Foot valve with pre-filter and non-return valve. The level switch generates a digital empty signal. Venting nipple 4mm for return of venting hose from dosing pump or overpressure/multifunction valve.Our suction lances can be adjusted in height, this means that, for example, instead of pumping from a 50 litre container, you can also pump from a 10, 20 or 30 litre container with the 40cm suction lance.Series: LASP4Material O-ring: EPDM (neutral) or FP (Viton)Immersion length: 40cm, 75cm or 122cmConnection on the unit side: M12 or BNCThread/hose connection (mm): 1/2 4x6 (suction capacity max 10l/h)Number of suction connections: 1-suction connectionMounting connection: C61 canister connection (for 40cm suction lance) or mounting connection 1 1/2" CNT/IBC (for 122cm suction lance)Number of floats/switching direction/electrical connection: 1st level/N.O/M12(PRIUS/PRISMA)Length of connection cable: 3.5mIntake filter: LASP4Special feature: Valve ball ceramic

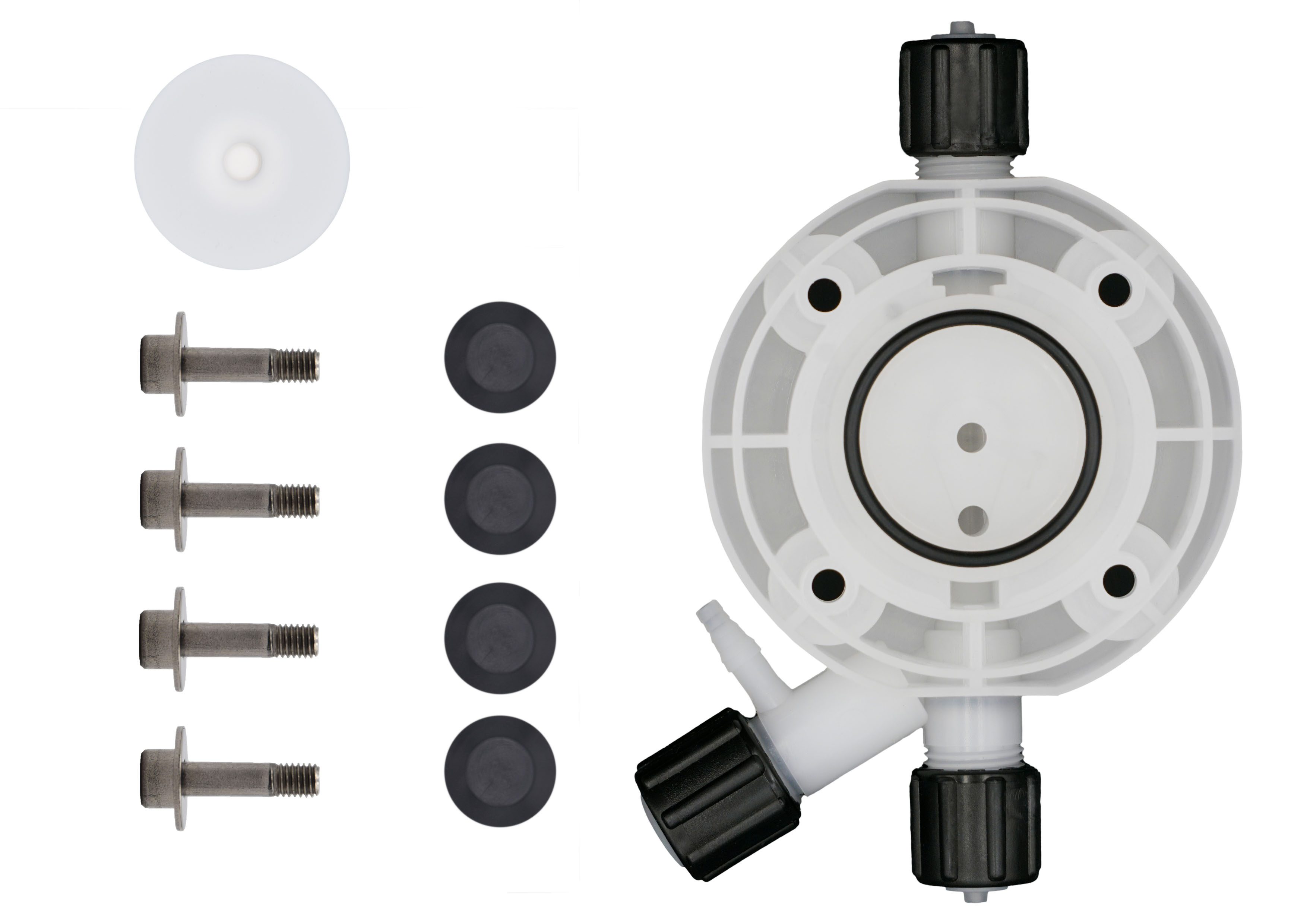

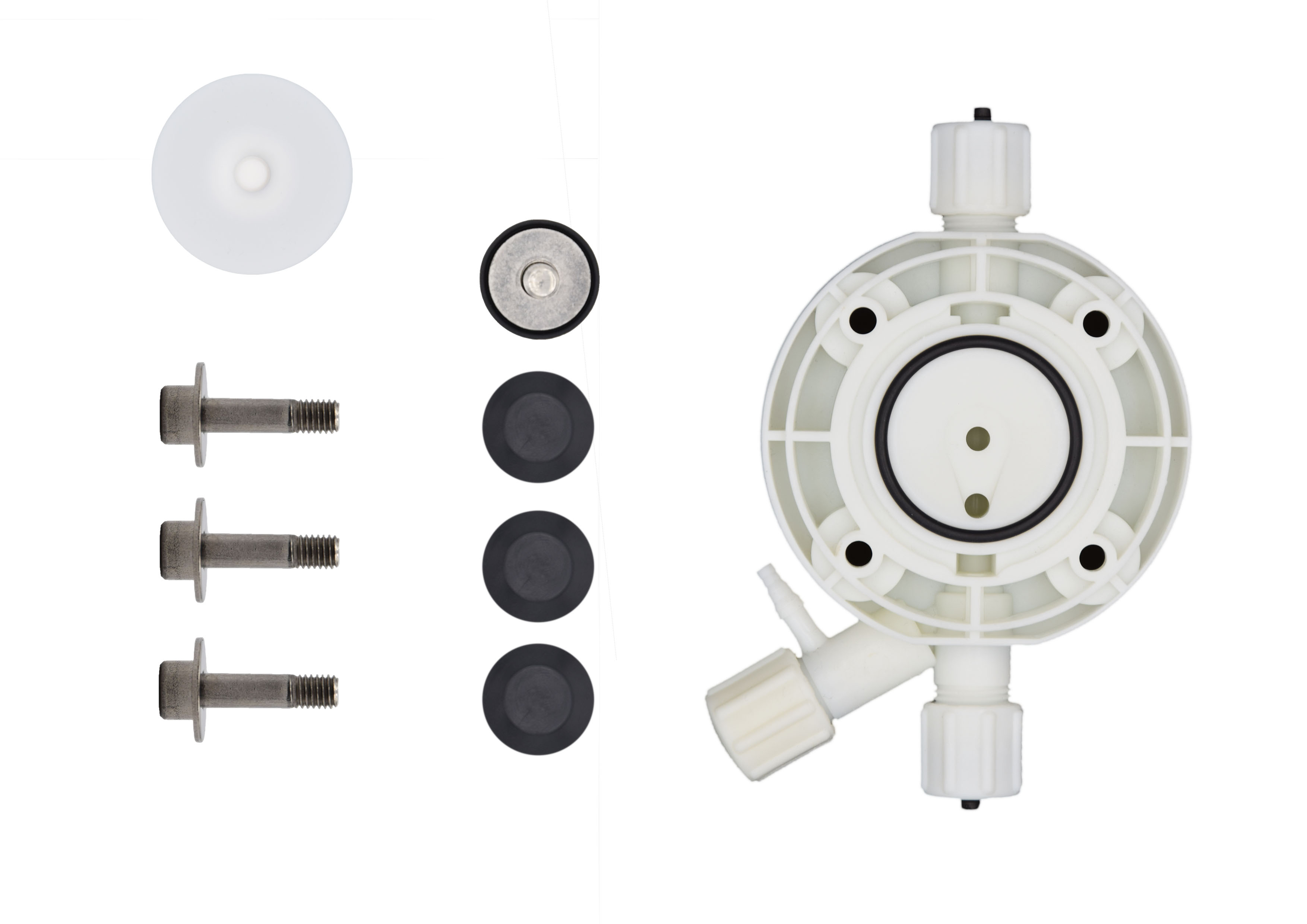

The emec service set for the K-Plus pump consists of the pump head, including sealing ring and a diaphragm, which is the same for all versions of the pump and is made of PTFE. Our service sets are available in the versions I, L and M. The only difference is the size of the pump head, which varies according to pressure and flow rate. The second choice on your part determines the material of the pump head and the material of the sealing ring. The correct selection of the service set, i.e. the correct choice of pump head size and pump head and seal material, can easily be made via your K-series pump type plate as follows. 1. On the type plate of your K-PLUS pump you will find the pressure "bar xxx - PSI xxx" above the serial number and then the pump capacity "l/h xxx - gph xxx". With these two items of information, you can easily determine the correct pump head size (I, L, M). (see example picture of type plate in the article) Version I 1 bar / 3 litres per hour 1 bar / 5 litres per hour 1 bar / 20 litres per hour Version L 5 bar / 10 litres per hour 8 bar / 8 litres per hour 10 bar / 5 litres per hour 15 bar / 4 litres per hour 18 bar / 2 litres per hour Version M 2 bar / 18 litres per hour 2. hidden in the "code" on the type plate you will find the reference to the pump head mounted at delivery and its sealing material. The ninth character indicates the sealing material. (see example picture of the type plate in the article) The most common types are listed below and these are shown via our selection matrix: K = PVDF pump head with Viton seal D = PP pump head with EPDM seal A = PMMA pumphead with Viton seal R = PMMA pumphead with EPDM seal Z = Stainless steel with Viton seal £ = Stainless steel pump head with EPDM gasket  (other types are available on request) Service set contents: PVDF pump head with Viton seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm- Stainless steel screws and caps (only for L and M service set) PP pump head with EPDM seal:1x pump head (dosing head) incl. seal  1x PTFE diaphragm - Stainless steel screws and caps (only for L and M service set)PMMA pump head with Viton or EPDM seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps (only for L and M service set) *Stainless steel pump head with Viton or EPDM seal:1x seal without pump head (no change required as stainless steel) 1x PTFE diaphragm

The emec service set for the K-Plus pump consists of the pump head, including sealing ring and a diaphragm, which is the same for all versions of the pump and is made of PTFE. Our service sets are available in the versions I, L and M. The only difference is the size of the pump head, which varies according to pressure and flow rate. The second choice on your part determines the material of the pump head and the material of the sealing ring. The correct selection of the service set, i.e. the correct choice of pump head size and pump head and seal material, can easily be made via your K-series pump type plate as follows. 1. On the type plate of your K-PLUS pump you will find the pressure "bar xxx - PSI xxx" above the serial number and then the pump capacity "l/h xxx - gph xxx". With these two items of information, you can easily determine the correct pump head size (I, L, M). (see example picture of type plate in the article) Version I 1 bar / 3 litres per hour 1 bar / 5 litres per hour 1 bar / 20 litres per hour Version L 5 bar / 10 litres per hour 8 bar / 8 litres per hour 10 bar / 5 litres per hour 15 bar / 4 litres per hour 18 bar / 2 litres per hour Version M 2 bar / 18 litres per hour 2. hidden in the "code" on the type plate you will find the reference to the pump head mounted at delivery and its sealing material. The ninth character indicates the sealing material. (see example picture of the type plate in the article) The most common types are listed below and these are shown via our selection matrix: K = PVDF pump head with Viton seal D = PP pump head with EPDM seal A = PMMA pumphead with Viton seal R = PMMA pumphead with EPDM seal Z = Stainless steel with Viton seal £ = Stainless steel pump head with EPDM gasket  (other types are available on request) Service set contents: PVDF pump head with Viton seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm- Stainless steel screws and caps (only for L and M service set) PP pump head with EPDM seal:1x pump head (dosing head) incl. seal  1x PTFE diaphragm - Stainless steel screws and caps (only for L and M service set)PMMA pump head with Viton or EPDM seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps (only for L and M service set) *Stainless steel pump head with Viton or EPDM seal:1x seal without pump head (no change required as stainless steel) 1x PTFE diaphragm

The emec service set for the K-Plus pump consists of the pump head, including sealing ring and a diaphragm, which is the same for all versions of the pump and is made of PTFE. Our service sets are available in the versions I, L and M. The only difference is the size of the pump head, which varies according to pressure and flow rate. The second choice on your part determines the material of the pump head and the material of the sealing ring. The correct selection of the service set, i.e. the correct choice of pump head size and pump head and seal material, can easily be made via your K-series pump type plate as follows. 1. On the type plate of your K-PLUS pump you will find the pressure "bar xxx - PSI xxx" above the serial number and then the pump capacity "l/h xxx - gph xxx". With these two items of information, you can easily determine the correct pump head size (I, L, M). (see example picture of type plate in the article) Version I 1 bar / 3 litres per hour 1 bar / 5 litres per hour 1 bar / 20 litres per hour Version L 5 bar / 10 litres per hour 8 bar / 8 litres per hour 10 bar / 5 litres per hour 15 bar / 4 litres per hour 18 bar / 2 litres per hour Version M 2 bar / 18 litres per hour 2. hidden in the "code" on the type plate you will find the reference to the pump head mounted at delivery and its sealing material. The ninth character indicates the sealing material. (see example picture of the type plate in the article) The most common types are listed below and these are shown via our selection matrix: K = PVDF pump head with Viton seal D = PP pump head with EPDM seal A = PMMA pumphead with Viton seal R = PMMA pumphead with EPDM seal Z = Stainless steel with Viton seal £ = Stainless steel pump head with EPDM gasket  (other types are available on request) Service set contents: PVDF pump head with Viton seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm- Stainless steel screws and caps (only for L and M service set) PP pump head with EPDM seal:1x pump head (dosing head) incl. seal  1x PTFE diaphragm - Stainless steel screws and caps (only for L and M service set)PMMA pump head with Viton or EPDM seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps (only for L and M service set) *Stainless steel pump head with Viton or EPDM seal:1x seal without pump head (no change required as stainless steel) 1x PTFE diaphragm

The emec service set for the K-Plus pump consists of the pump head, including sealing ring and a diaphragm, which is the same for all versions of the pump and is made of PTFE. Our service sets are available in the versions I, L and M. The only difference is the size of the pump head, which varies according to pressure and flow rate. The second choice on your part determines the material of the pump head and the material of the sealing ring. The correct selection of the service set, i.e. the correct choice of pump head size and pump head and seal material, can easily be made via your K-series pump type plate as follows. 1. On the type plate of your K-PLUS pump you will find the pressure "bar xxx - PSI xxx" above the serial number and then the pump capacity "l/h xxx - gph xxx". With these two items of information, you can easily determine the correct pump head size (I, L, M). (see example picture of type plate in the article) Version I 1 bar / 3 litres per hour 1 bar / 5 litres per hour 1 bar / 20 litres per hour Version L 5 bar / 10 litres per hour 8 bar / 8 litres per hour 10 bar / 5 litres per hour 15 bar / 4 litres per hour 18 bar / 2 litres per hour Version M 2 bar / 18 litres per hour 2. hidden in the "code" on the type plate you will find the reference to the pump head mounted at delivery and its sealing material. The ninth character indicates the sealing material. (see example picture of the type plate in the article) The most common types are listed below and these are shown via our selection matrix: K = PVDF pump head with Viton seal D = PP pump head with EPDM seal A = PMMA pumphead with Viton seal R = PMMA pumphead with EPDM seal Z = Stainless steel with Viton seal £ = Stainless steel pump head with EPDM gasket  (other types are available on request) Service set contents: PVDF pump head with Viton seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm- Stainless steel screws and caps (only for L and M service set) PP pump head with EPDM seal:1x pump head (dosing head) incl. seal  1x PTFE diaphragm - Stainless steel screws and caps (only for L and M service set)PMMA pump head with Viton or EPDM seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps (only for L and M service set) *Stainless steel pump head with Viton or EPDM seal:1x seal without pump head (no change required as stainless steel) 1x PTFE diaphragm

The emec service set for the K-Plus pump consists of the pump head, including sealing ring and a diaphragm, which is the same for all versions of the pump and is made of PTFE. Our service sets are available in the versions I, L and M. The only difference is the size of the pump head, which varies according to pressure and flow rate. The second choice on your part determines the material of the pump head and the material of the sealing ring. The correct selection of the service set, i.e. the correct choice of pump head size and pump head and seal material, can easily be made via your K-series pump type plate as follows. 1. On the type plate of your K-PLUS pump you will find the pressure "bar xxx - PSI xxx" above the serial number and then the pump capacity "l/h xxx - gph xxx". With these two items of information, you can easily determine the correct pump head size (I, L, M). (see example picture of type plate in the article) Version I 1 bar / 3 litres per hour 1 bar / 5 litres per hour 1 bar / 20 litres per hour Version L 5 bar / 10 litres per hour 8 bar / 8 litres per hour 10 bar / 5 litres per hour 15 bar / 4 litres per hour 18 bar / 2 litres per hour Version M 2 bar / 18 litres per hour 2. hidden in the "code" on the type plate you will find the reference to the pump head mounted at delivery and its sealing material. The ninth character indicates the sealing material. (see example picture of the type plate in the article) The most common types are listed below and these are shown via our selection matrix: K = PVDF pump head with Viton seal D = PP pump head with EPDM seal A = PMMA pumphead with Viton seal R = PMMA pumphead with EPDM seal Z = Stainless steel with Viton seal £ = Stainless steel pump head with EPDM gasket  (other types are available on request) Service set contents: PVDF pump head with Viton seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm- Stainless steel screws and caps (only for L and M service set) PP pump head with EPDM seal:1x pump head (dosing head) incl. seal  1x PTFE diaphragm - Stainless steel screws and caps (only for L and M service set)PMMA pump head with Viton or EPDM seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps (only for L and M service set) *Stainless steel pump head with Viton or EPDM seal:1x seal without pump head (no change required as stainless steel) 1x PTFE diaphragm

The emec service set for the K-Plus pump consists of the pump head, including sealing ring and a diaphragm, which is the same for all versions of the pump and is made of PTFE. Our service sets are available in the versions I, L and M. The only difference is the size of the pump head, which varies according to pressure and flow rate. The second choice on your part determines the material of the pump head and the material of the sealing ring. The correct selection of the service set, i.e. the correct choice of pump head size and pump head and seal material, can easily be made via your K-series pump type plate as follows. 1. On the type plate of your K-PLUS pump you will find the pressure "bar xxx - PSI xxx" above the serial number and then the pump capacity "l/h xxx - gph xxx". With these two items of information, you can easily determine the correct pump head size (I, L, M). (see example picture of type plate in the article) Version I 1 bar / 3 litres per hour 1 bar / 5 litres per hour 1 bar / 20 litres per hour Version L 5 bar / 10 litres per hour 8 bar / 8 litres per hour 10 bar / 5 litres per hour 15 bar / 4 litres per hour 18 bar / 2 litres per hour Version M 2 bar / 18 litres per hour 2. hidden in the "code" on the type plate you will find the reference to the pump head mounted at delivery and its sealing material. The ninth character indicates the sealing material. (see example picture of the type plate in the article) The most common types are listed below and these are shown via our selection matrix: K = PVDF pump head with Viton seal D = PP pump head with EPDM seal A = PMMA pumphead with Viton seal R = PMMA pumphead with EPDM seal Z = Stainless steel with Viton seal £ = Stainless steel pump head with EPDM gasket  (other types are available on request) Service set contents: PVDF pump head with Viton seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm- Stainless steel screws and caps (only for L and M service set) PP pump head with EPDM seal:1x pump head (dosing head) incl. seal  1x PTFE diaphragm - Stainless steel screws and caps (only for L and M service set)PMMA pump head with Viton or EPDM seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps (only for L and M service set) *Stainless steel pump head with Viton or EPDM seal:1x seal without pump head (no change required as stainless steel) 1x PTFE diaphragm

Suction lance for extracting a medium directly from a supply container (canister/IBC/CNT tank/barrel)Foot valve with pre-filter and non-return valve. The level switch generates a digital empty signal. Venting nipple 4mm for return of venting hose from dosing pump or overpressure/multifunction valve.Our suction lances can be adjusted in height, this means that, for example, instead of pumping from a 50 litre container, you can also pump from a 10, 20 or 30 litre container with the 40cm suction lance.Series: LASP4Material O-ring: EPDM (neutral) or FP (Viton)Immersion length: 40cm, 75cm or 122cmConnection on the unit side: M12 or BNCThread/hose connection (mm): 1/2 4x6 (suction capacity max 10l/h)Number of suction connections: 1-suction connectionMounting connection: C61 canister connection (for 40cm suction lance) or mounting connection 1 1/2" CNT/IBC (for 122cm suction lance)Number of floats/switching direction/electrical connection: 1st level/N.O/M12(PRIUS/PRISMA)Length of connection cable: 3.5mIntake filter: LASP4Special feature: Valve ball ceramic

Suction lance for extracting a medium directly from a supply container (canister/IBC/CNT tank/barrel)Foot valve with pre-filter and non-return valve. The level switch generates a digital empty signal. Venting nipple 4mm for return of venting hose from dosing pump or overpressure/multifunction valve.Our suction lances can be adjusted in height, this means that, for example, instead of pumping from a 50 litre container, you can also pump from a 10, 20 or 30 litre container with the 40cm suction lance.Series: LASP4Material O-ring: EPDM (neutral) or FP (Viton)Immersion length: 40cm, 75cm or 122cmConnection on the unit side: M12 or BNCThread/hose connection (mm): 1/2 4x6 (suction capacity max 10l/h)Number of suction connections: 1-suction connectionMounting connection: C61 canister connection (for 40cm suction lance) or mounting connection 1 1/2" CNT/IBC (for 122cm suction lance)Number of floats/switching direction/electrical connection: 1st level/N.O/M12(PRIUS/PRISMA)Length of connection cable: 3.5mIntake filter: LASP4Special feature: Valve ball ceramic

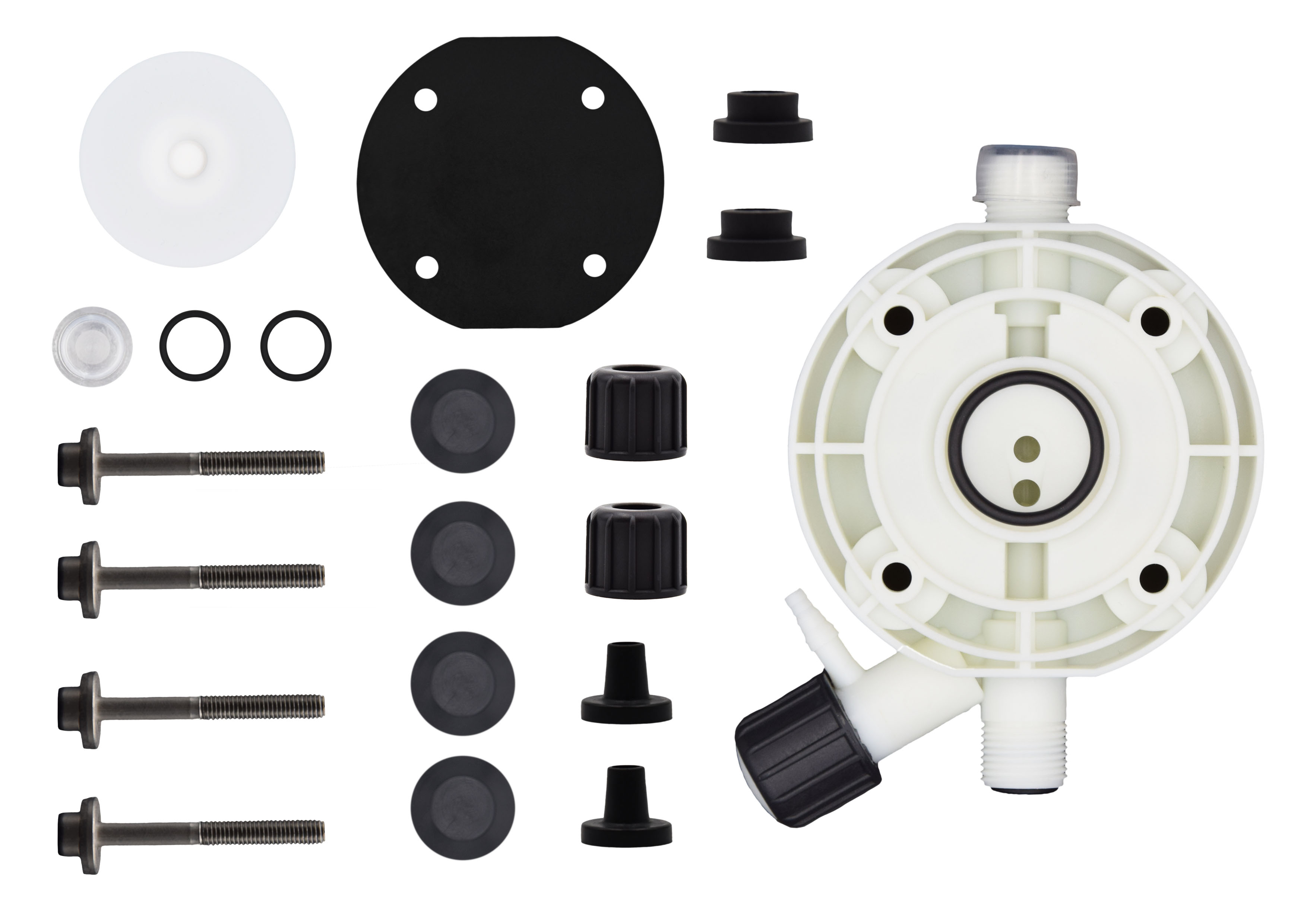

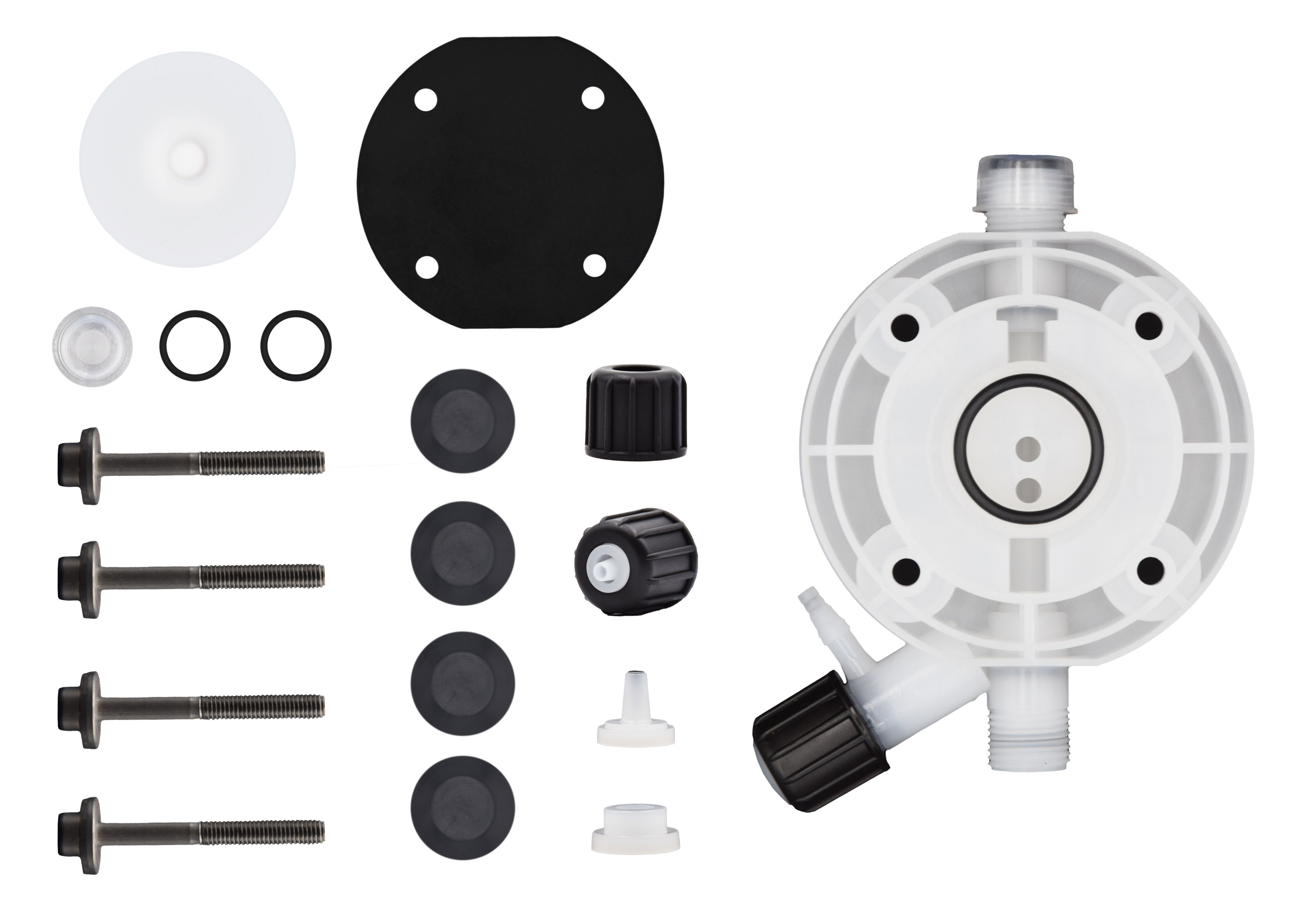

The emec service set for the PRISMA pump consists of the pump head*, including sealing ring and a diaphragm, which is the same for all versions of the pump and is made of PTFE. Our service sets are available in the versions I, L, M and N. The only difference is the size of the pump head, which varies depending on the pressure and flow rate. The second choice on your part determines the material of the pump head and the material of the sealing ring. The correct selection of the service set, i.e. the correct choice of pump head size and pump head and seal material, can easily be made via your Prisma pump type plate as follows. 1. On the type plate of your Prisma pump you will find the pressure "bar xxx - PSI xxx" above the serial number and then the pump capacity "l/h xxx - gph xxx". With these two items of information you can easily determine the correct pump head size (I, L, M, N)(see example picture of type plate in the article) Version I 20 bar / 1 litre per hour Version L 16 bar / 7.5 litres per hour 20 bar / 5 litres per hour 25 bar / 2 litres per hour Version M 10 bar / 13 litres per hour Version N 2 bar / 80 litres per hour 3 bar / 70 litres per hour 4 bar / 50 litres per hour 5 bar / 28 litres per hour 7 bar / 20 litres per hour 2. On the type plate you will find hidden in the "code" the reference to the pump head mounted at delivery and its sealing material. The ninth character indicates the sealing material. (see example picture of the type plate in the article) The most common types are listed below and these are shown via our selection matrix: K = PVDF pump head with Viton seal D = PP pump head with EPDM seal A = PMMA pumphead with Viton seal R = PMMA pumphead with EPDM seal Z = Stainless steel with Viton seal £ = Stainless steel pump head with EPDM gasket (other types are available on request) Service set contents: PVDF pump head with Viton seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps (only for L and M service set) PP pump head with EPDM seal: 1x pump head (dosing head) incl. seal  1x PTFE diaphragm  - Stainless steel screws and caps (only for L and M service set) PMMA pump head with Viton or EPDM seal: 1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps (only for L and M Service Set) *Stainless steel pump head with Viton or EPDM seal: 1x seal without pump head (no change required as stainless steel) 1x PTFE diaphragm

The emec service set for the PRISMA pump consists of the pump head*, including sealing ring and a diaphragm, which is the same for all versions of the pump and is made of PTFE. Our service sets are available in the versions I, L, M and N. The only difference is the size of the pump head, which varies depending on the pressure and flow rate. The second choice on your part determines the material of the pump head and the material of the sealing ring. The correct selection of the service set, i.e. the correct choice of pump head size and pump head and seal material, can easily be made via your Prisma pump type plate as follows. 1. On the type plate of your Prisma pump you will find the pressure "bar xxx - PSI xxx" above the serial number and then the pump capacity "l/h xxx - gph xxx". With these two items of information you can easily determine the correct pump head size (I, L, M, N)(see example picture of type plate in the article) Version I 20 bar / 1 litre per hour Version L 16 bar / 7.5 litres per hour 20 bar / 5 litres per hour 25 bar / 2 litres per hour Version M 10 bar / 13 litres per hour Version N 2 bar / 80 litres per hour 3 bar / 70 litres per hour 4 bar / 50 litres per hour 5 bar / 28 litres per hour 7 bar / 20 litres per hour 2. On the type plate you will find hidden in the "code" the reference to the pump head mounted at delivery and its sealing material. The ninth character indicates the sealing material. (see example picture of the type plate in the article) The most common types are listed below and these are shown via our selection matrix: K = PVDF pump head with Viton seal D = PP pump head with EPDM seal A = PMMA pumphead with Viton seal R = PMMA pumphead with EPDM seal Z = Stainless steel with Viton seal £ = Stainless steel pump head with EPDM gasket (other types are available on request) Service set contents: PVDF pump head with Viton seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps (only for L and M service set) PP pump head with EPDM seal: 1x pump head (dosing head) incl. seal  1x PTFE diaphragm  - Stainless steel screws and caps (only for L and M service set) PMMA pump head with Viton or EPDM seal: 1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps (only for L and M Service Set) *Stainless steel pump head with Viton or EPDM seal: 1x seal without pump head (no change required as stainless steel) 1x PTFE diaphragm

The emec service set for the PRISMA pump consists of the pump head*, including sealing ring and a diaphragm, which is the same for all versions of the pump and is made of PTFE. Our service sets are available in the versions I, L, M and N. The only difference is the size of the pump head, which varies depending on the pressure and flow rate. The second choice on your part determines the material of the pump head and the material of the sealing ring. The correct selection of the service set, i.e. the correct choice of pump head size and pump head and seal material, can easily be made via your Prisma pump type plate as follows. 1. On the type plate of your Prisma pump you will find the pressure "bar xxx - PSI xxx" above the serial number and then the pump capacity "l/h xxx - gph xxx". With these two items of information you can easily determine the correct pump head size (I, L, M, N)(see example picture of type plate in the article) Version I 20 bar / 1 litre per hour Version L 16 bar / 7.5 litres per hour 20 bar / 5 litres per hour 25 bar / 2 litres per hour Version M 10 bar / 13 litres per hour Version N 2 bar / 80 litres per hour 3 bar / 70 litres per hour 4 bar / 50 litres per hour 5 bar / 28 litres per hour 7 bar / 20 litres per hour 2. On the type plate you will find hidden in the "code" the reference to the pump head mounted at delivery and its sealing material. The ninth character indicates the sealing material. (see example picture of the type plate in the article) The most common types are listed below and these are shown via our selection matrix: K = PVDF pump head with Viton seal D = PP pump head with EPDM seal A = PMMA pumphead with Viton seal R = PMMA pumphead with EPDM seal Z = Stainless steel with Viton seal £ = Stainless steel pump head with EPDM gasket (other types are available on request) Service set contents: PVDF pump head with Viton seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps (only for L and M service set) PP pump head with EPDM seal: 1x pump head (dosing head) incl. seal  1x PTFE diaphragm  - Stainless steel screws and caps (only for L and M service set) PMMA pump head with Viton or EPDM seal: 1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps (only for L and M Service Set) *Stainless steel pump head with Viton or EPDM seal: 1x seal without pump head (no change required as stainless steel) 1x PTFE diaphragm

The emec service set for the PRISMA pump consists of the pump head*, including sealing ring and a diaphragm, which is the same for all versions of the pump and is made of PTFE. Our service sets are available in the versions I, L, M and N. The only difference is the size of the pump head, which varies depending on the pressure and flow rate. The second choice on your part determines the material of the pump head and the material of the sealing ring. The correct selection of the service set, i.e. the correct choice of pump head size and pump head and seal material, can easily be made via your Prisma pump type plate as follows. 1. On the type plate of your Prisma pump you will find the pressure "bar xxx - PSI xxx" above the serial number and then the pump capacity "l/h xxx - gph xxx". With these two items of information you can easily determine the correct pump head size (I, L, M, N)(see example picture of type plate in the article) Version I 20 bar / 1 litre per hour Version L 16 bar / 7.5 litres per hour 20 bar / 5 litres per hour 25 bar / 2 litres per hour Version M 10 bar / 13 litres per hour Version N 2 bar / 80 litres per hour 3 bar / 70 litres per hour 4 bar / 50 litres per hour 5 bar / 28 litres per hour 7 bar / 20 litres per hour 2. On the type plate you will find hidden in the "code" the reference to the pump head mounted at delivery and its sealing material. The ninth character indicates the sealing material. (see example picture of the type plate in the article) The most common types are listed below and these are shown via our selection matrix: K = PVDF pump head with Viton seal D = PP pump head with EPDM seal A = PMMA pumphead with Viton seal R = PMMA pumphead with EPDM seal Z = Stainless steel with Viton seal £ = Stainless steel pump head with EPDM gasket (other types are available on request) Service set contents: PVDF pump head with Viton seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps (only for L and M service set) PP pump head with EPDM seal: 1x pump head (dosing head) incl. seal  1x PTFE diaphragm  - Stainless steel screws and caps (only for L and M service set) PMMA pump head with Viton or EPDM seal: 1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps (only for L and M Service Set) *Stainless steel pump head with Viton or EPDM seal: 1x seal without pump head (no change required as stainless steel) 1x PTFE diaphragm

The emec service set for the PRISMA pump consists of the pump head*, including sealing ring and a diaphragm, which is the same for all versions of the pump and is made of PTFE. Our service sets are available in the versions I, L, M and N. The only difference is the size of the pump head, which varies depending on the pressure and flow rate. The second choice on your part determines the material of the pump head and the material of the sealing ring. The correct selection of the service set, i.e. the correct choice of pump head size and pump head and seal material, can easily be made via your Prisma pump type plate as follows. 1. On the type plate of your Prisma pump you will find the pressure "bar xxx - PSI xxx" above the serial number and then the pump capacity "l/h xxx - gph xxx". With these two items of information you can easily determine the correct pump head size (I, L, M, N)(see example picture of type plate in the article) Version I 20 bar / 1 litre per hour Version L 16 bar / 7.5 litres per hour 20 bar / 5 litres per hour 25 bar / 2 litres per hour Version M 10 bar / 13 litres per hour Version N 2 bar / 80 litres per hour 3 bar / 70 litres per hour 4 bar / 50 litres per hour 5 bar / 28 litres per hour 7 bar / 20 litres per hour 2. On the type plate you will find hidden in the "code" the reference to the pump head mounted at delivery and its sealing material. The ninth character indicates the sealing material. (see example picture of the type plate in the article) The most common types are listed below and these are shown via our selection matrix: K = PVDF pump head with Viton seal D = PP pump head with EPDM seal A = PMMA pumphead with Viton seal R = PMMA pumphead with EPDM seal Z = Stainless steel with Viton seal £ = Stainless steel pump head with EPDM gasket (other types are available on request) Service set contents: PVDF pump head with Viton seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps (only for L and M service set) PP pump head with EPDM seal: 1x pump head (dosing head) incl. seal  1x PTFE diaphragm  - Stainless steel screws and caps (only for L and M service set) PMMA pump head with Viton or EPDM seal: 1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps (only for L and M Service Set) *Stainless steel pump head with Viton or EPDM seal: 1x seal without pump head (no change required as stainless steel) 1x PTFE diaphragm

The emec service set for the PRISMA pump consists of the pump head*, including sealing ring and a diaphragm, which is the same for all versions of the pump and is made of PTFE. Our service sets are available in the versions I, L, M and N. The only difference is the size of the pump head, which varies depending on the pressure and flow rate. The second choice on your part determines the material of the pump head and the material of the sealing ring. The correct selection of the service set, i.e. the correct choice of pump head size and pump head and seal material, can easily be made via your Prisma pump type plate as follows. 1. On the type plate of your Prisma pump you will find the pressure "bar xxx - PSI xxx" above the serial number and then the pump capacity "l/h xxx - gph xxx". With these two items of information you can easily determine the correct pump head size (I, L, M, N)(see example picture of type plate in the article) Version I 20 bar / 1 litre per hour Version L 16 bar / 7.5 litres per hour 20 bar / 5 litres per hour 25 bar / 2 litres per hour Version M 10 bar / 13 litres per hour Version N 2 bar / 80 litres per hour 3 bar / 70 litres per hour 4 bar / 50 litres per hour 5 bar / 28 litres per hour 7 bar / 20 litres per hour 2. On the type plate you will find hidden in the "code" the reference to the pump head mounted at delivery and its sealing material. The ninth character indicates the sealing material. (see example picture of the type plate in the article) The most common types are listed below and these are shown via our selection matrix: K = PVDF pump head with Viton seal D = PP pump head with EPDM seal A = PMMA pumphead with Viton seal R = PMMA pumphead with EPDM seal Z = Stainless steel with Viton seal £ = Stainless steel pump head with EPDM gasket (other types are available on request) Service set contents: PVDF pump head with Viton seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps (only for L and M service set) PP pump head with EPDM seal: 1x pump head (dosing head) incl. seal  1x PTFE diaphragm  - Stainless steel screws and caps (only for L and M service set) PMMA pump head with Viton or EPDM seal: 1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps (only for L and M Service Set) *Stainless steel pump head with Viton or EPDM seal: 1x seal without pump head (no change required as stainless steel) 1x PTFE diaphragm

Suction lance for extracting a medium directly from a supply container (canister/IBC/CNT tank/barrel)Foot valve with pre-filter and non-return valve. The level switch generates a digital empty signal. Venting nipple 4mm for return of venting hose from dosing pump or overpressure/multifunction valve.Our suction lances can be adjusted in height, this means that, for example, instead of pumping from a 50 litre container, you can also pump from a 10, 20 or 30 litre container with the 40cm suction lance.Series: LASP4Material O-ring: EPDM (neutral) or FP (Viton)Immersion length: 40cm, 75cm or 122cmConnection on the unit side: M12 or BNCThread/hose connection (mm): 1/2 4x6 (suction capacity max 10l/h)Number of suction connections: 1-suction connectionMounting connection: C61 canister connection (for 40cm suction lance) or mounting connection 1 1/2" CNT/IBC (for 122cm suction lance)Number of floats/switching direction/electrical connection: 1st level/N.O/M12(PRIUS/PRISMA)Length of connection cable: 3.5mIntake filter: LASP4Special feature: Valve ball ceramic

Suction lance for extracting a medium directly from a supply container (canister/IBC/CNT tank/barrel)Foot valve with pre-filter and non-return valve. The level switch generates a digital empty signal. Venting nipple 4mm for return of venting hose from dosing pump or overpressure/multifunction valve.Our suction lances can be adjusted in height, this means that, for example, instead of pumping from a 50 litre container, you can also pump from a 10, 20 or 30 litre container with the 40cm suction lance.Series: LASP4Material O-ring: EPDM (neutral) or FP (Viton)Immersion length: 40cm, 75cm or 122cmConnection on the unit side: M12 or BNCThread/hose connection (mm): 1/2 4x6 (suction capacity max 10l/h)Number of suction connections: 1-suction connectionMounting connection: C61 canister connection (for 40cm suction lance) or mounting connection 1 1/2" CNT/IBC (for 122cm suction lance)Number of floats/switching direction/electrical connection: 1st level/N.O/M12(PRIUS/PRISMA)Length of connection cable: 3.5mIntake filter: LASP4Special feature: Valve ball ceramic

The emec service set for the VMS MF pump consists of the pump head, including sealing ring and a diaphragm, which is the same for all versions of the pump and is made of PTFE.Our service sets are available in the versions J and K. The only difference is the size of the pump head, which varies depending on the pressure and flow rate. The second choice on your part determines the material of the pump head and the material of the sealing ring.The correct selection of the service set, i.e. the correct selection of the pump head size as well as the pump head and seal material, can easily be made via your VMS pump type plate as follows. 1. On the type plate of your VMS pump you will find the pressure "bar xxx - PSI xxx" above the serial number and then the pump capacity "l/h xxx - gph xxx". With these two indications you can easily determine the correct pump head size (J, K).(see example picture of type plate in the article) Version J 5 bar / 1 litre per hour 10 bar / 1 litre per hour 20 bar / 1 litre per hour Version K 1 bar / 16 litres per hour 2 bar / 15 litres per hour 3 bar / 10 litres per hour 4 bar / 8 litres per hour 5 bar / 10 litres per hour 5 bar / 12 litres per hour 7 bar / 6 litres per hour 10 bar / 4 litres per hour 10 bar / 5 litres per hour 10 bar / 10 litres per hour 15 bar / 2 litres per hour 15 bar / 4 litres per hour 15 bar / 5 litres per hour 18 bar / 2 litres per hour 18 bar / 4 litres per hour 2. On the type plate you will find hidden in the "code" the reference to the pump head mounted at delivery and its sealing material. The ninth character indicates the sealing material. (see example picture of the type plate in the article) The most common types are listed below and these are shown via our selection matrix: K = PVDF pump head with Viton seal D = PP pump head with EPDM seal Service set contents: PVDF pump head with Viton seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps PP pump head with EPDM seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm  - Stainless steel screws and caps

The emec service set for the VMS MF pump consists of the pump head, including sealing ring and a diaphragm, which is the same for all versions of the pump and is made of PTFE.Our service sets are available in the versions J and K. The only difference is the size of the pump head, which varies depending on the pressure and flow rate. The second choice on your part determines the material of the pump head and the material of the sealing ring.The correct selection of the service set, i.e. the correct selection of the pump head size as well as the pump head and seal material, can easily be made via your VMS pump type plate as follows. 1. On the type plate of your VMS pump you will find the pressure "bar xxx - PSI xxx" above the serial number and then the pump capacity "l/h xxx - gph xxx". With these two indications you can easily determine the correct pump head size (J, K).(see example picture of type plate in the article) Version J 5 bar / 1 litre per hour 10 bar / 1 litre per hour 20 bar / 1 litre per hour Version K 1 bar / 16 litres per hour 2 bar / 15 litres per hour 3 bar / 10 litres per hour 4 bar / 8 litres per hour 5 bar / 10 litres per hour 5 bar / 12 litres per hour 7 bar / 6 litres per hour 10 bar / 4 litres per hour 10 bar / 5 litres per hour 10 bar / 10 litres per hour 15 bar / 2 litres per hour 15 bar / 4 litres per hour 15 bar / 5 litres per hour 18 bar / 2 litres per hour 18 bar / 4 litres per hour 2. On the type plate you will find hidden in the "code" the reference to the pump head mounted at delivery and its sealing material. The ninth character indicates the sealing material. (see example picture of the type plate in the article) The most common types are listed below and these are shown via our selection matrix: K = PVDF pump head with Viton seal D = PP pump head with EPDM seal Service set contents: PVDF pump head with Viton seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps PP pump head with EPDM seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm  - Stainless steel screws and caps

The emec service set for the VMS MF pump consists of the pump head, including sealing ring and a diaphragm, which is the same for all versions of the pump and is made of PTFE.Our service sets are available in the versions J and K. The only difference is the size of the pump head, which varies depending on the pressure and flow rate. The second choice on your part determines the material of the pump head and the material of the sealing ring.The correct selection of the service set, i.e. the correct selection of the pump head size as well as the pump head and seal material, can easily be made via your VMS pump type plate as follows. 1. On the type plate of your VMS pump you will find the pressure "bar xxx - PSI xxx" above the serial number and then the pump capacity "l/h xxx - gph xxx". With these two indications you can easily determine the correct pump head size (J, K).(see example picture of type plate in the article) Version J 5 bar / 1 litre per hour 10 bar / 1 litre per hour 20 bar / 1 litre per hour Version K 1 bar / 16 litres per hour 2 bar / 15 litres per hour 3 bar / 10 litres per hour 4 bar / 8 litres per hour 5 bar / 10 litres per hour 5 bar / 12 litres per hour 7 bar / 6 litres per hour 10 bar / 4 litres per hour 10 bar / 5 litres per hour 10 bar / 10 litres per hour 15 bar / 2 litres per hour 15 bar / 4 litres per hour 15 bar / 5 litres per hour 18 bar / 2 litres per hour 18 bar / 4 litres per hour 2. On the type plate you will find hidden in the "code" the reference to the pump head mounted at delivery and its sealing material. The ninth character indicates the sealing material. (see example picture of the type plate in the article) The most common types are listed below and these are shown via our selection matrix: K = PVDF pump head with Viton seal D = PP pump head with EPDM seal Service set contents: PVDF pump head with Viton seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps PP pump head with EPDM seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm  - Stainless steel screws and caps
