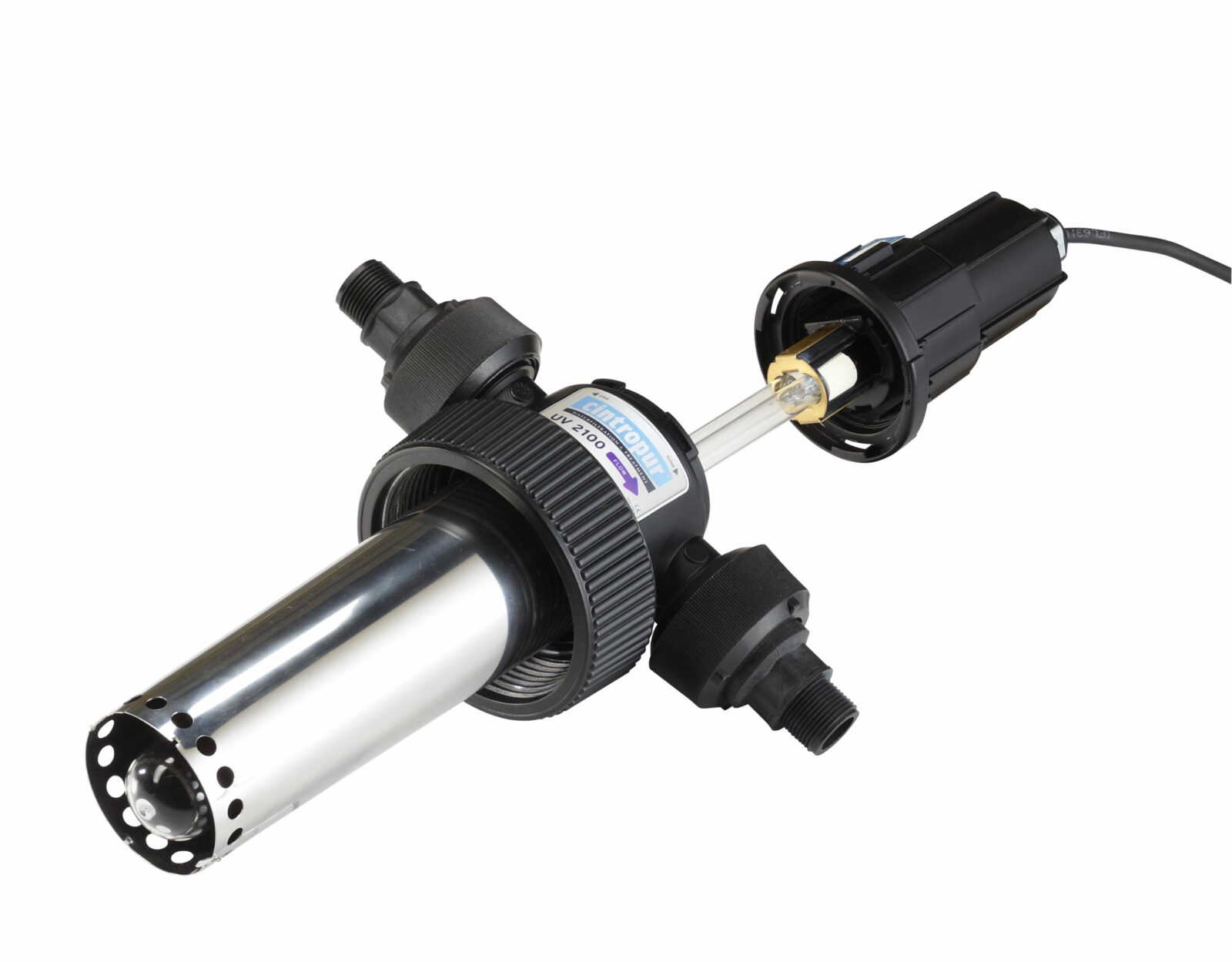

CINTROPUR UV2100 3/4″ + 1″

Product number: 896450

Product information "CINTROPUR UV2100 3/4″ + 1″"

Water sterilisation by UV irradiation

The development of water sterilisation using UV radiation has made considerable progress in recent years due to its simplicity and efficiency. The UV-C rays generated, which are significantly more intense than sunlight, are therefore used to disinfect water in order to counteract water contamination. They make it possible to remove legionella, microbes, bacteria, viruses and protozoa while respecting the environment. The irradiation process is therefore an ideal solution for killing microorganisms in water and helps to make it drinkable from a bacteriological point of view. However, it is important to note that water is only considered drinking water once the chemical parameters have been checked and deemed satisfactory.

 Applications - Origin of the water

Rainwater: UV treatment extends the range of applications and offers increased safety during use

Well water: Avoidance of possible contamination by pathogens

Tap water: UV treatment extends the area of application and increases safety.

Spring water, surface water: Guarantees constant water quality that is flawless from a bacteriological point of view.

Storage water in containers (caravan, boat...): Use of stored water for sanitary purposes.

 Areas of application

  • General nutrition, bath and shower
  • Cooking
  • Large-volume refrigerators
  • Cold water fountains
  • Aquarium
  • Cleaning food

 Advantages

  • Quick and easy installation
  • Completely physical sterilisation through UV radiation
  • Natural water treatment without additives and without the risk of chemical overdose
  • No unpleasant taste or odour
  • Effective methods for combating microorganisms that cause disease in humans
  • No toxic by-products
  • Low maintenance

Dimensions

Height 52 cm
Length 14 cm
Width 26 cm

Weight

Weight 3 kg

Other attributes

Brand Neomeris
Technical specifications

Technical data

2100 (25W)

4100 (40W)

DUO-UV (25W)

TRIO-UV (25W)

TRIO-UV (40W)

Diameter of the connection

3/4" +1"

Max. flow rate (m³/h) at 25 mJ/cm²

1,7

2,1

1,7

2

2,6

Max. operating pressure (bar)

16

Max. operating temperature (°C)

50

Weight (kg)

1,7

2,8

1,7

4,3

Transmission value of the water

90

Lamp power (W)

25

40

25

40

Installation diagram (see product images)

A (mm)

270

435

610

B (mm)

154,5

320

487

C (mm)

178

D (mm)

314

Versions: /varies with the articles
UV system with 25W lamp

at 250J/m2 max. flow rate 28l/min.

at 400J/m2 max. flow rate 16l/min.


UV system with 40W lamp

at 250J/m2 max. flow rate 35l/min.

at 400J/m2 max. flow rate 21l/min.


UV system with 40W lamp, 25µm filter and activated carbon filter

at 250J/m2 max. flow rate 43l/min.

at 400J/m2 max. flow rate 27l/min.
