Plastic cartridges variantsDK-VE 6 - demineralisation cartridge with hole in the head (capacity max. 900 litres at 300µS)DK-VE 10 - demineralisation cartridge with hole in the head (capacity max. 1,500 litres at 300µS)DK-VE 15 - demineralisation cartridge with hole in the head (capacity max. 2,250 litres at 300µS)DK-VE 20 - demineralisation cartridge with hole in the head (capacity max. 3,000 litres at 300µS)DK-VE 25 - demineralisation cartridge with hole in the head (capacity max. 3,750 litres at 300µS)DK-VE 30 - demineralisation cartridge with hole in the head (capacity max. 4,500 litres at 300µS)DK-VE 50 - demineralisation cartridge with hole in the head (capacity max. 7,500 ltr. at 300µS)

Our 4- or 8- channel system allows the processing of up to four or eight measurement signals. For this purpose, 4-20 mA/ RS232 as well as Modbus RTU are available as signal inputs. Based on the received data a visualization as well as a trend display takes place. Through modular addition of optional modules (slaves) the realization of popular control concepts is possible.Advantages:Simple operation Integration of the Testomat® device world Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® housingModular function range expandable by NeoTec slave modules (measure, control, control)Available as installation variant or structure variant

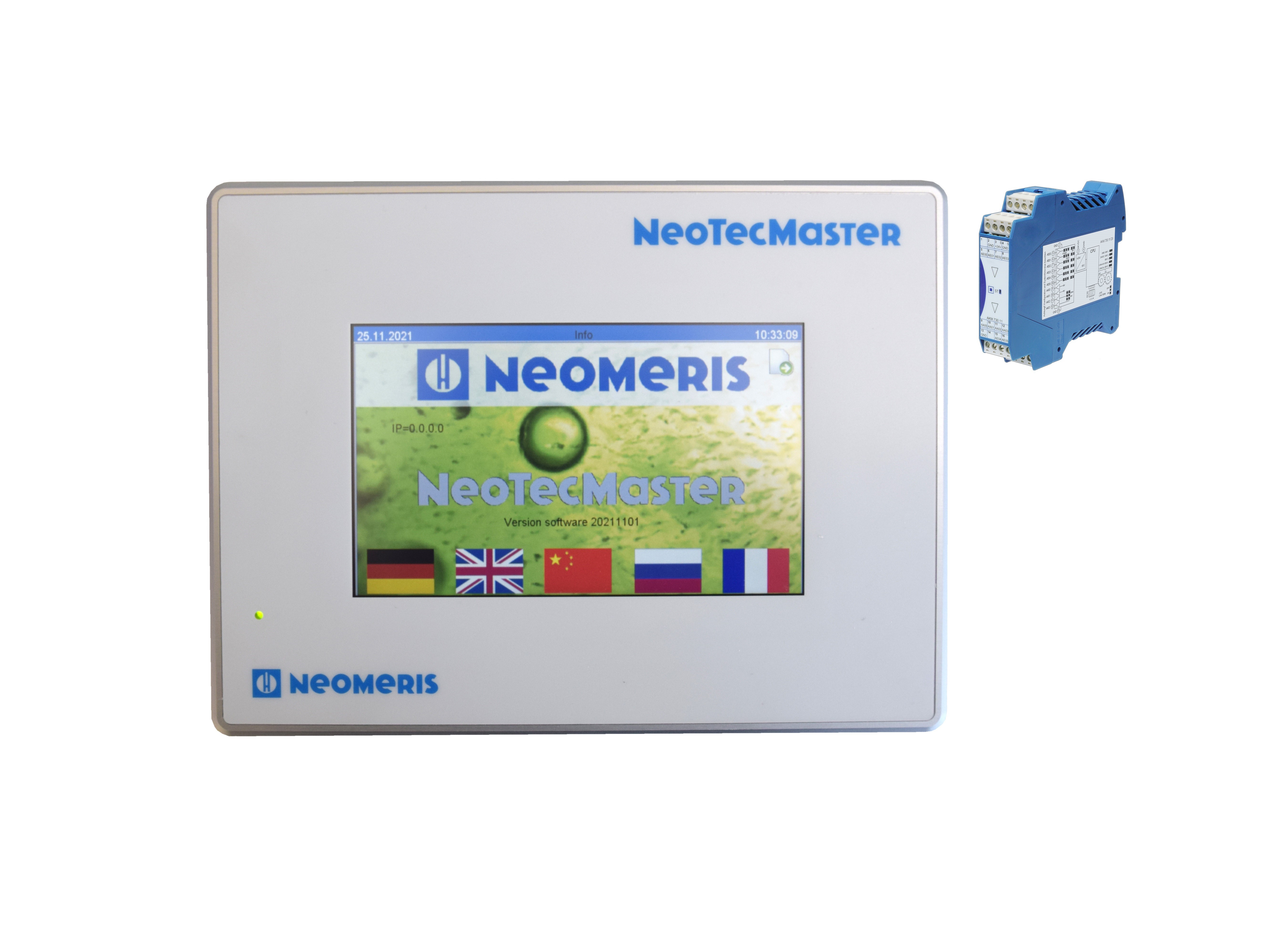

The use of the NeoTec Slave 4-20 mA allows to process up to eight external 4-20 mA measuring signals. Advantages:inversion of the input signals on the assigned outputs possible (e.g. for concentration-dependent pump control) compact design for top hat rail mounting when using several modules, only one power supply is necessary addition of a further module for application integration possible

Our 4- or 8- channel system allows the processing of up to four or eight measurement signals. For this purpose, 4-20 mA/ RS232 as well as Modbus RTU are available as signal inputs. Based on the received data a visualization as well as a trend display takes place. Through modular addition of optional modules (slaves) the realization of popular control concepts is possible.Advantages:Simple operation Integration of the Testomat® device world Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® housingModular function range expandable by NeoTec slave modules (measure, control, control)Available as installation variant or structure variant Contents: NeoTecMaster® 5 inch - 4 channel systemNeoTec Slave 4-20mA module (inputs: 8x 20mA)NeoTecMaster® IP66 housing for 5" display, light grey with front foilUSB stick for NeoTecMaster® 8GInstallation of NeoTecMaster® in housing incl. parameterisation and cabling of the NeoTecMaster®Universal power supply 24V/6A DC (100-240V AC) (144 Watt)

Our 4- or 8- channel system allows the processing of up to four or eight measurement signals. For this purpose, 4-20 mA/ RS232 as well as Modbus RTU are available as signal inputs. Based on the received data a visualization as well as a trend display takes place. Through modular addition of optional modules (slaves) the realization of popular control concepts is possible.Advantages:Simple operation Integration of the Testomat® device world Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® housingModular function range expandable by NeoTec slave modules (measure, control, control)Available as installation variant or structure variant

The Testomat® 808 is a compact analyzer for the online measurement of water hardness according to the principle of " limit value monitoring by color change ". The Testomat® style="letter-spacing: 0px;"> 808 is a combination of the latest technologies based upon decades of international Testomat® experience.Applications of continuous residual hardness monitoring are for example: Reverse osmosis plants Boiler feed water supply Soft water for commercial puposes Pure water systems Performance profile:Limit value indication (not exceeded or exceeded: green / red LED) Modern indicator pump system Automatic measuring process with low water consumption Direct error and indicator quantity indication Internal and external flushing of the measuring chamber by manual control Control of an external rinsing valve Three potential-free relays for: External rinsing valve control Limit value evaluation External control and / or alarm processing Safety check for 72 hours operation without supervision Indicator quantities: 100 and 500 ml bottles 4 - 20 mA interface for defined status and error messages RS 232 interface for firmware updates

The Testomat® 808 SIO02 is a device that was developed for measuring and monitoring deionised water (fully demineralised water) in medical facilities.  The central importance of silicate monitoring  Silicate measurement using the Testomat® 808 SIO02 is an essential aspect of compliance with a defined limit value. Precise silicate monitoring is particularly important in process water treatment in hospitals in order to prevent deposits on devices and medical devices (MD) and to ensure the effectiveness of the water treatment systems. You can choose between 10 limit values in the range from 0.3 to 1.2 ppm. By regularly monitoring the silicate content and compliance with the limit values, potential problems can be identified at an early stage and suitable measures can be taken to optimise water treatment.

The Testomat® 808 is a compact analyser for online measurement of water hardness according to the principle of "limit value monitoring with colour change" in the measuring range 0.02 - 5 ° dH (0.4 - 89 ppm). Applications of the continuous residual hardness monitoring are e.g.: Reverse osmosis systems, boiler feed water supply Soft water for commercial purposes, ultrapure water systems.  In view of the fact that the Testomat® 808 is suitable for use in multi-parameter systems due to its 4-20mA signal output, we hereby offer you the Testomat® 808 in conjunction with the NeoTecMaster® Multicontroller, which was specially developed by our company, as a package solution at a preferential price.  The 4-channel NeoTecMaster® Multicontroller included in this package enables the processing of up to four measurement signals. Via the 4-20mA NeoTec slave input module connected to the NeoTecMaster®, the data is transmitted to the NeoTecMaster® and used to display the measured value, the trend and the status messages on the 5-inch screen. In addition, the NeoTecMaster® has an RS232 interface as well as a Modbus RTU input, which you can use freely after brief technical consultation with us. (Pre-check whether your existing measurement technology to be integrated requires adjustments).  The NeoTecMaster® can be systematically supplemented with further optional NeoTec modules (function / signal converter modules) as required. This allows the future realisation of further control concepts in a flexible way.  Two modules which fundamentally extend the range of functions and are already included in the scope of delivery are our NeoTec slave relay module and the 4x 4-20mA input module. This allows you to add potential-free relay contacts to the overall system and to integrate and visualise further system technology such as sensors via the 4x 4-20mA input module. You can freely assign the relay contacts to the incoming measurement signals and thus, for example, implement simple limit value-related control concepts as well as output measurement value-related messages.  Further advantages of the NeoTecMaster:  Simple operation Integration of the Testomat® device world, here in connection with the Testomat® 808  Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® enclosure  Modular range of functions can be extended by NeoTec slave and signal converter modules (measurement, control, regulation)  Available as built-in or surface-mounted variant  Structured continuous data recording on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format  In addition, there are the proven functionalities of the Testomat® 808:  Indication of limit value undershoot or overshoot: green / red LED  Modern indicator pump system  Automatic measuring sequence with low water consumption  Direct error and indicator quantity display  Internal and external flushing of the measuring chamber by manual control  Control of an external flush valve  Three potential-free relays for: External flush valve control Limit value evaluation External control and / or alarm processing Safety check for 72-hour operation without supervision  Indicator quantities: 100 and 500 ml bottles  4 - 20 mA interface for defined status and error messages  RS 232 interface for firmware updates  General information Water connection and operating pressure: Depending on unit version: 0.3 - 1 bar / 0.3 x 105 to 4 x 105 Pa 1 - 4 bar / 1 x 105 to 4 x 105 Pa (from 4 to 8 bar, a pressure reducer must be used (special accessory))  Water inlet: opaque hose with 6 mm outer diameter/4 mm inner diameter  Water outlet: hose with 6 mm outer diameter/4 mm inner diameter  Water temperature: 10 to 40 °C From 4 bar, a separately available pressure reducer must be used. Please use only the indicators approved for Testomat® 808! Optional accessories:  NeoTecMaster unit hood
