The NeoTecMaster Multicontroller can be used in a wide variety of application areas and can be configured for your specific application area.
In the subcategories, you will find exemplary application areas for our open-manufacturer multi-parameter system in the form of small case studies and business cases.
Read application solutions for the area:
- Desalination of cooling towers
- Treatment of boiler feed water
- Hospital
- Sterile goods treatment
- Water softening plant - Osmosis plant

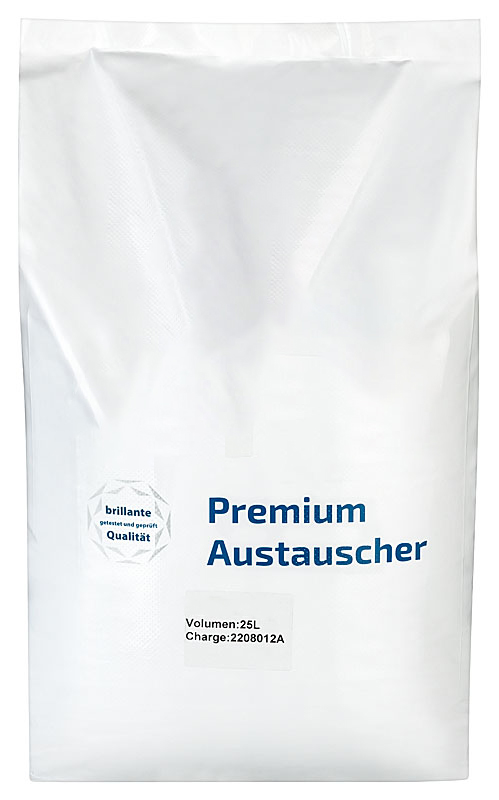

MB A6K4 "disposable quality" mixed bed resin (no VOC)
Product number:
896495
Packaging unit:
Bag (25 litres)
MB A6K4 is a high capacity mixed bed ion exchange resin consisting of a mixture of strongly basic anion resin and a strongly acidic cation resin for direct water purification.The conductivity is about 0.06 µm/cm.Suitable for use in non-regenerable cartridges, high efficiency deionisation for silica removal and ultra pure water applications.Packed in 25 litre bagsPolymer matrix: gel polystyrene cross-linked with DVB.Ionic form, as supplied: H+ / OH-Physical shape and appearance: Spherical beadsSphericity: Min. 95%Particle size range (US Standard Screen): 1.25 - 0.315mm, wet.Particle size: +1.2mm < 5% ; -0.3mm < 1%Water retention H+: 45 - 50%Water retention OH-: 53 - 60%Shipping weight (approx.): 700-740 g/lMax. Temp. non-regenerative: 100°CMax. Temp. regenerative: 60°CpH-value range: 0-14Recommended operating conditions:Minimum bed depth should be 0.6m (24")Service flow rate should be 20-60 BV/hourProlonged exposure to strong oxidising agents such as chlorine, hydrogen peroxide and concentrated nitric acid will deteriorate the structural backbone of the resin and should be avoided.Mixture Resin:Anions: 60%Cations: 40%Purchase options:Single purchase - 25 ltr. (item no. 896495)1/2 pallet - 500 ltr. (Art.-No. 896496)1 pallet - 1050 ltr. (art.-no. 896497)
Content: 25 Liter (€6.08* / 1 Liter)
€152.00*

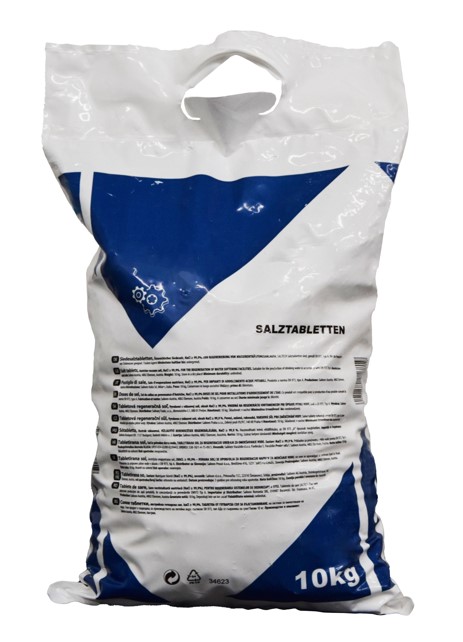

Salt tablets (10kg), EN 973 A
Product number:
896467
Packaging unit:
Bag (10 kilogram)
Proposed use: for the regeneration of water softeners
Composition: evaporated salt (min. 99.9% NaCl)
Dimensions / weight of tablet: ø25mm / 14g
Moisture content: < 0.08
Filling weight: 10kg per sack
Type of packaging: PE film
Storage description: store dry and well closed
Certifications: ISO 9001, ISO 14001 and IFS
Standard: The product complies with the following standards.
EN 973:2009
Products for the treatment of water intended for human consumption - Sodium chloride for regenerating ion exchange resins -Type A
EN 16401:2013
Products for the treatment of swimming pool water - Sodium chloride for use in electrochemical chlorine production plants - Type A
EN 14805:2022
Products for the treatment of water intended for human consumption - Sodium chloride for on-site electrochemical production of chlorine by membrane-free processes - Type 1
EN 16370:2022
Products for the treatment of water intended for human consumption - Sodium chloride for the on-site electrochemical production of chlorine by means of membrane cells - Quality 2
Purchase options:
Single purchase: 1x 10kg sack (Art.-No. 896467)
Pallet purchase: 100x 10kg sacks (Art.-No. 896498)
€23.00*

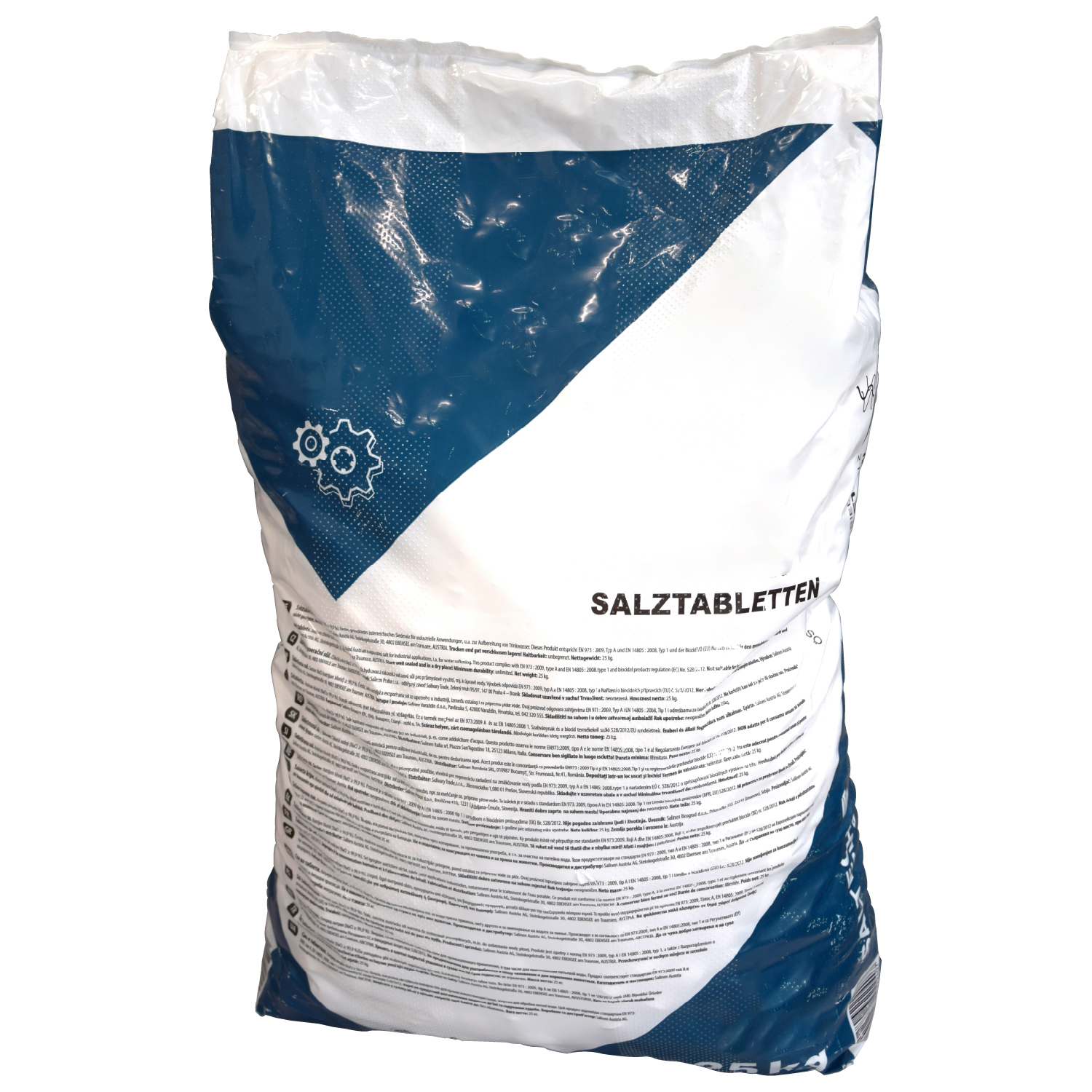

Salt tablets (25kg), EN 973 A
Product number:
896468
Packaging unit:
Bag (25 kilogram)
Proposed use: for the regeneration of water softeners
Composition: evaporated salt (min. 99.9% NaCl)
Dimensions / weight of tablet: ø25mm / 14g
Moisture content: < 0.08
Filling weight: 25kg per sack
Type of packaging: PE film
Storage description: store dry and well closed
Certifications: ISO 9001, ISO 14001 and IFS
Standard: The product complies with the following standards...
EN 973:2009
Products for the treatment of water intended for human consumption - Sodium chloride for regenerating ion exchange resins -Type A
EN 16401:2013
Products for the treatment of swimming pool water - Sodium chloride for use in electrochemical chlorine production plants - Type A
EN 14805:2022
Products for the treatment of water intended for human consumption - Sodium chloride for on-site electrochemical production of chlorine by membrane-free processes - Type 1
EN 16370:2022
Products for the treatment of water intended for human consumption - Sodium chloride for the on-site electrochemical production of chlorine by means of membrane cells - Quality 2
Purchase options:
Single purchase: 1x 25kg sack (Art.-No. 896468)
Pallet purchase: 40x 25kg sacks - 1000 kg (Art.-No. 896500)
€25.00*
6 Liter Plastic Mixed Bed Demineralization Cartridge Filled with Premium Resin
Product number:
896510
Maximum capacity at 300 µS input water:
900 liters (6 ltr. MB resin filling)
Plastic cartridges variantsDK-VE 6 - demineralisation cartridge with hole in the head (capacity max. 900 litres at 300µS)DK-VE 10 - demineralisation cartridge with hole in the head (capacity max. 1,500 litres at 300µS)DK-VE 15 - demineralisation cartridge with hole in the head (capacity max. 2,250 litres at 300µS)DK-VE 20 - demineralisation cartridge with hole in the head (capacity max. 3,000 litres at 300µS)DK-VE 25 - demineralisation cartridge with hole in the head (capacity max. 3,750 litres at 300µS)DK-VE 30 - demineralisation cartridge with hole in the head (capacity max. 4,500 litres at 300µS)DK-VE 50 - demineralisation cartridge with hole in the head (capacity max. 7,500 ltr. at 300µS)
€268.00*
12 Liter Stainless Steel Mixed Bed Demineralization Cartridge Filled with Premium Resin
Product number:
896529
Maximum capacity at 300 µS input water:
1800 liters (12 ltr. MB resin filling)
Variants:VA-VE 13 Stainless steel demineralisation cartridge - 12 ltr. MB resin filling (⌀ 239mm)VA-VE 20 Stainless steel demineralisation cartridge - 19 ltr. MB resin filling (⌀ 239mm)VA-VE 26 Stainless steel demineralisation cartridge - 25 ltr. MB resin filling (⌀ 239mm)VA-VE 30 Stainless steel demineralisation cartridge - 30 ltr. MB resin filling (⌀ 239mm)VA-VE 46 Stainless steel demineralisation cartridge - 45 ltr. MB resin filling (⌀ 239mm)VA-VE 50 Stainless steel demineralisation cartridge - 49 ltr. MB resin filling (⌀ 363mm)VA-VE 60 Stainless steel demineralisation cartridge - 59 ltr. MB resin filling (⌀ 363mm)VA-VE 100 Stainless steel demineralisation cartridge - 99 ltr. MB resin filling (⌀ 363mm)
Price on request
Tip
NeoTecMaster® - 5 inch
Product number:
850981
NeoTec Slave function module 1:
RS232 (integration of another measuring device, e.g. Testomat EVO / LAB)
|
NeoTec Slave function module 2:
4-20mA module (6x input + 4x output)
|
NeoTec Slave function module 3:
Relay module (4 relays 240 VAC)
|
Number of parameters to be measured, up to:
4
Our 4- or 8- channel system allows the processing of up to four or eight measurement signals. For this purpose, 4-20 mA/ RS232 as well as Modbus RTU are available as signal inputs. Based on the received data a visualization as well as a trend display takes place. Through modular addition of optional modules (slaves) the realization of popular control concepts is possible.Advantages:Simple operation
Integration of the Testomat® device world
Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® housingModular function range expandable by NeoTec slave modules (measure, control, control)Available as installation variant or structure variant
€3,076.25*
NeoTec Select Optical Stainless Steel Oxygen Sensor with Modbus Output 12 VDC, 316L, 10 Meter Cable
Product number:
890856
Cable length:
10 meters
|
Version:
Edelstahl 316L
NeoTec Select Optical Oxygen Sensor with Modbus OutputDurable and reliableStainless steel SS316- housing option for fresh waterTitanium- housing option for salt waterOptical technology allows maintenance-free use for up to 2 years Save time during set-upNo calibration required
Plug and play Digital communication Open protocol Modbus RS485 signal
€1,383.50*
NeoTec Select Optical Titanium Oxygen Sensor with Modbus Output 12 VDC, 10 Meter Cable
Product number:
890858
Cable length:
10 meters
|
Version:
Titan
NeoTec Select Optical Oxygen Sensor with Modbus OutputDurable and reliableStainless steel SS316- housing option for fresh waterTitanium- housing option for salt waterOptical technology allows maintenance-free use for up to 2 years Save time during set-upNo calibration required
Plug and play Digital communication Open protocol Modbus RS485 signal
€1,581.50*
NeoTec Select Sensor Conductivity modular measuring package with 4-20mA head transmitter for low measuring range
Product number:
891016
Head transmitter:
4-20 mA
|
Tee:
1.5" flow cell with 1" inner thread NPT
|
measuring range:
0.1-1.000 μS/cm
The conductivity measuring package consists of a 3 meter connection cable, a 4-20mA head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced, when it should be worn out . All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece.
Advantages:
preconfigured for NeoTecMaster®
modular design
industry standard
resource friendly
€780.50*
NeoTec Select Sensor Conductivity modular measuring package with Modbus signal output for low measuring range
Product number:
891017
Head transmitter:
Modbus 12-24 VDC
|
Tee:
1.5" flow cell with 1" inner thread NPT
|
measuring range:
0.1-500 μS/cm
The conductivity sensor consists of a 3 meter connection cable, a Modbus head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced. All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece.
Advantages:Preconfigured for NeoTecMaster®
Modular design
Industry standard
conserves resources
€780.50*
NeoTec Select Sensor pH modular measuring package - Modbus
Product number:
891010
Head transmitter:
Modbus 12-24 VDC
|
Tee:
1" flow cell with 3/4" inner thread NPT
|
measuring range:
0 - 14 pH
The modular pH measuring package consists of a 3 m connection cable, a Modbus head transmitter, the sensor holder and the flat-head pH electrode. Due to the design of the sensor assembly, only the pH electrode needs to be replaced. All other components of this system can be used continuously. For optimal process integration, the NeoTec Sensor is supplied with a suitable T-piece.Advantages:preconfigured for NeoTecMaster®
modular design
industry standard
resource friendly
€935.00*
NeoTec signal converter 4-20 mA (conductivity, cell constant c=1.0)
Product number:
890899
Which sensor is used?:
Conductivity cell constant c = 1
Module for manufacturer-independent integration of pH, ORP and conductivity standard sensors (PT1000 based), which do not have an integrated signal converter on site. Integration of existing/existing sensors into the NeoTecMaster® concept via 4-20 mA signal.Advantages:accommodates all pH, ORP and conductivity standard electrodes industry standard
allows the use of existing sensors
€401.75*
NeoTec signal converter 4-20 mA (conductivity, cell constant c=0.1) in enclosure (wall mounting)
Product number:
800043
Which sensor is used?:
Conductivity cell constant c = 0.1
Module for manufacturer-independent integration of pH, ORP and conductivity standard sensors (PT1000 based), which do not have an integrated signal converter on site. Integration of existing/existing sensors into the NeoTecMaster® concept via 4-20 mA signal.Advantages:accommodates all pH, ORP and conductivity standard electrodes easy wall installationindustry standard
allows the use of existing sensors
€401.75*
NeoTec signal converter 4-20 mA (conductivity, cell constant c=1.0) in enclosure (wall mounting)
Product number:
800049
Which sensor is used?:
Conductivity cell constant c = 1
Module for manufacturer-independent integration of pH, ORP and conductivity standard sensors (PT1000 based), which do not have an integrated signal converter on site. Integration of existing/existing sensors into the NeoTecMaster® concept via 4-20 mA signal.Advantages:accommodates all pH, ORP and conductivity standard electrodes easy wall installationindustry standard
allows the use of existing sensors
€401.75*
NeoTec signal converter 4-20 mA for pH and ORP electrodes in enclosure(wall mounting)
Product number:
800047
Which sensor is used?:
pH / ORP
Module for manufacturer-independent integration of pH, ORP and conductivity standard sensors (PT1000 based), which do not have an integrated signal converter on site. Integration of existing/existing sensors into the NeoTecMaster® concept via 4-20 mA signal.Advantages:accommodates all pH, ORP and conductivity standard electrodes easy wall installationindustry standard
allows the use of existing sensors
€401.75*
NeoTec Slave 4-20mA (8x Input)
Product number:
851050
Version:
4-20mA module (8x Input)
The use of the NeoTec Slave 4-20 mA allows to process up to eight external 4-20 mA measuring
signals. Advantages:inversion of the input signals on the assigned outputs possible
(e.g. for concentration-dependent pump control) compact design for top hat rail mounting when using several modules, only one power supply is necessary addition of a further module for application integration possible
€241.00*
NeoTec Slave Relays (4x 240 VAC)
Product number:
850974
Version:
Relay module (4 Relays 240 VAC)
By using these NeoTec Slave relay modules, potential-free relay contacts are added to the overall system. All relay contacts can be freely assigned to the incoming measuring signals and can therefore be used, for example, for limit value-related control concepts or measured value-related messages.Advantages:individual implementation of:
alarm message based on received measured values and/or status messages
switching contacts for simple valve control
compact design for top hat rail mounting
when using several modules only one power supply is necessary
modular expandable according to process requirements
€192.00*
Tip
NeoTecMaster® - 5 inch in IP 66 housing as a 4-channel system, preconfigured to accept up to 8 incoming 4-20 mA signals, one R232 signal and Modbus signal, can be optionally enabled for 8 channels
Product number:
851096
Our 4- or 8- channel system allows the processing of up to four or eight measurement signals. For this purpose, 4-20 mA/ RS232 as well as Modbus RTU are available as signal inputs. Based on the received data a visualization as well as a trend display takes place. Through modular addition of optional modules (slaves) the realization of popular control concepts is possible.Advantages:Simple operation
Integration of the Testomat® device world
Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® housingModular function range expandable by NeoTec slave modules (measure, control, control)Available as installation variant or structure variant
Contents:
NeoTecMaster® 5 inch - 4 channel systemNeoTec Slave 4-20mA module (inputs: 8x 20mA)NeoTecMaster® IP66 housing for 5" display, light grey with front foilUSB stick for NeoTecMaster® 8GInstallation of NeoTecMaster® in housing incl. parameterisation and cabling of the NeoTecMaster®Universal power supply 24V/6A DC (100-240V AC) (144 Watt)
€2,228.10*
NeoTecMaster® - 7 inch (4 channel multi-parameter controller)
Product number:
850961
Number of parameters to be measured, up to:
4
Our 4- or 8- channel system allows the processing of up to four or eight measurement signals. For this purpose, 4-20 mA/ RS232 as well as Modbus RTU are available as signal inputs. Based on the received data a visualization as well as a trend display takes place. Through modular addition of optional modules (slaves) the realization of popular control concepts is possible.Advantages:Simple operation
Integration of the Testomat® device world
Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® housingModular function range expandable by NeoTec slave modules (measure, control, control)Available as installation variant or structure variant
€2,949.00*
Tip
Select stainless steel conductivity sensor 100°C (max. 13 bar) for high temperatures and high pressure (LF)
Product number:
891221
Cell constant:
1
|
Maximum temperature and pressure:
max. 100 °C / max. 13 bar (200 psig)
|
Measuring resistor (temperature sensor):
PT1000
|
Version:
1/2“ NPT
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
€554.40*
Tip
Select stainless steel conductivity sensor 200°C (max. 17 bar) for high temperatures and high pressure (HTLF)
Product number:
890791
Cell constant:
0.1
|
Maximum temperature and pressure:
max. 200 °C / max. 17 bar (250 psig)
|
Measuring resistor (temperature sensor):
PT1000
|
Version:
3/4“ NPT for installation in 3/4“ T-piece
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
€418.75*
Tip
Select stainless steel conductivity sensor 252°C (max. 41 bar) for high temperatures and high pressure (HTLF ULTRA)
Product number:
891222
Cell constant:
1
|
Maximum temperature and pressure:
max. 252 °C / max. 41 bar (600 psi)
|
Measuring resistor (temperature sensor):
PT100
|
Version:
3/4“ NPT for installation in 3/4“ T-piece
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
€517.25*
Testomat® 808
Product number:
100650
Operating pressure:
1 - 4 bar
|
Performance/execution:
230 V/50-60 HZ
The Testomat® 808 is a compact analyzer for the online measurement of water hardness according to the principle of " limit value monitoring by color change ". The Testomat® style="letter-spacing: 0px;"> 808 is a combination of the latest technologies based upon decades of international Testomat® experience.Applications of continuous residual hardness monitoring are for example:
Reverse osmosis plants
Boiler feed water supply
Soft water for commercial puposes
Pure water systems
Performance profile:Limit value indication (not exceeded or exceeded: green / red LED)
Modern indicator pump system
Automatic measuring process with low water consumption
Direct error and indicator quantity indication
Internal and external flushing of the measuring chamber by manual control
Control of an external rinsing valve
Three potential-free relays for:
External rinsing valve control
Limit value evaluation
External control and / or alarm processing
Safety check for 72 hours operation without supervision
Indicator quantities: 100 and 500 ml bottles
4 - 20 mA interface for defined status and error messages
RS 232 interface for firmware updates
€2,702.40*
Testomat® 808 SIO2
Product number:
100660
Operating pressure:
1 - 4 bar
|
Performance/execution:
230 V/50-60 HZ
The Testomat® 808 SIO02 is a device that was developed for measuring and monitoring deionised water (fully demineralised water) in medical facilities.
The central importance of silicate monitoring
Silicate measurement using the Testomat® 808 SIO02 is an essential aspect of compliance with a defined limit value. Precise silicate monitoring is particularly important in process water treatment in hospitals in order to prevent deposits on devices and medical devices (MD) and to ensure the effectiveness of the water treatment systems. You can choose between 10 limit values in the range from 0.3 to 1.2 ppm. By regularly monitoring the silicate content and compliance with the limit values, potential problems can be identified at an early stage and suitable measures can be taken to optimise water treatment.
€3,745.00*
