3 meter connection cable for N-LF measuring cells, 4-core 0.25² with shielding

Product number: 880652

€39.25*

Please log in to receive your conditions.

Prices excl. VAT plus shipping costs.

Show gross prices
(incl. VAT)

Available, delivery time: 1-2 days

Cable length

3 meters

6 meters

Product number: 880652

GTIN: 4260682385628

Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.

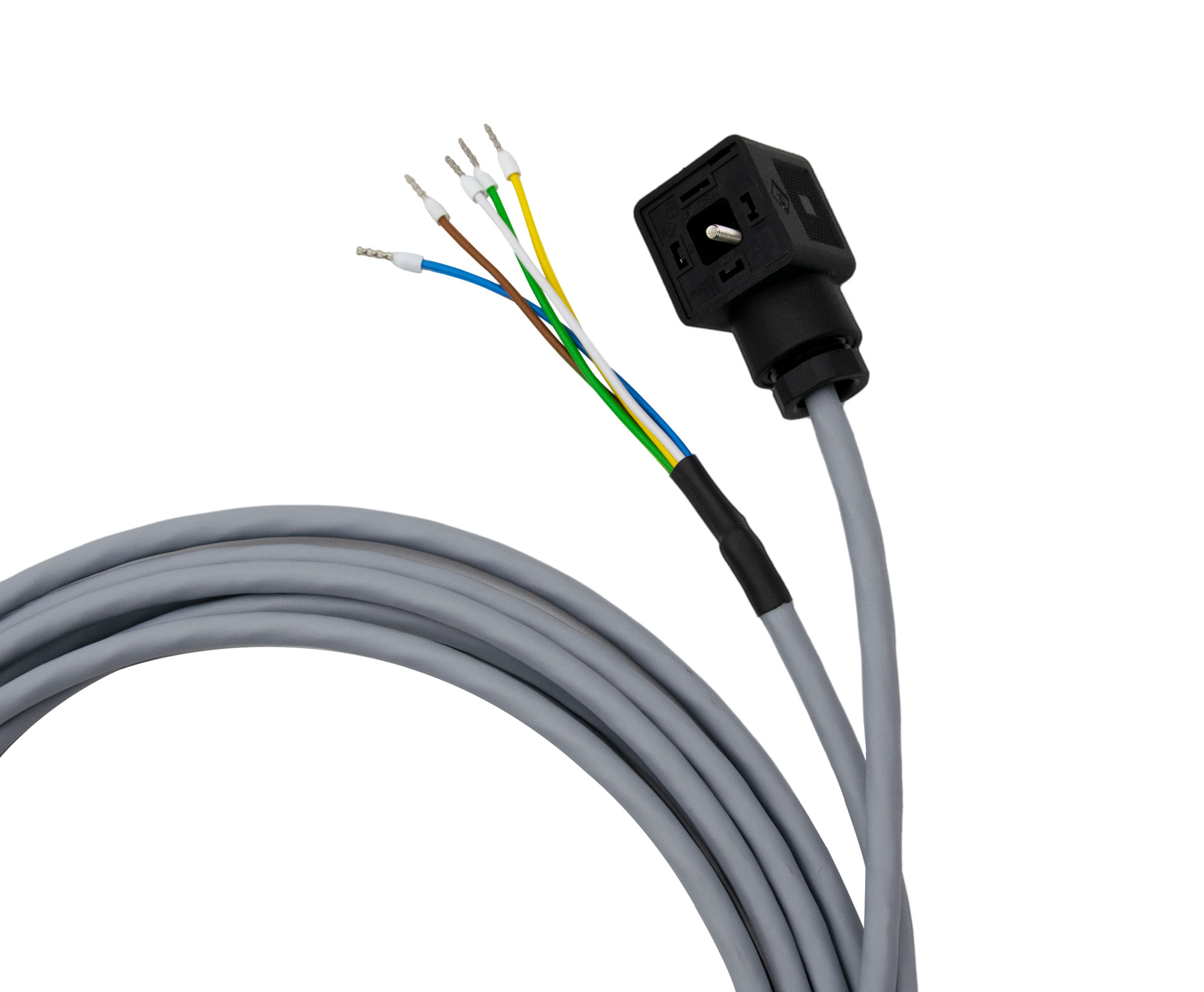

Product information "3 meter connection cable for N-LF measuring cells, 4-core 0.25² with shielding"

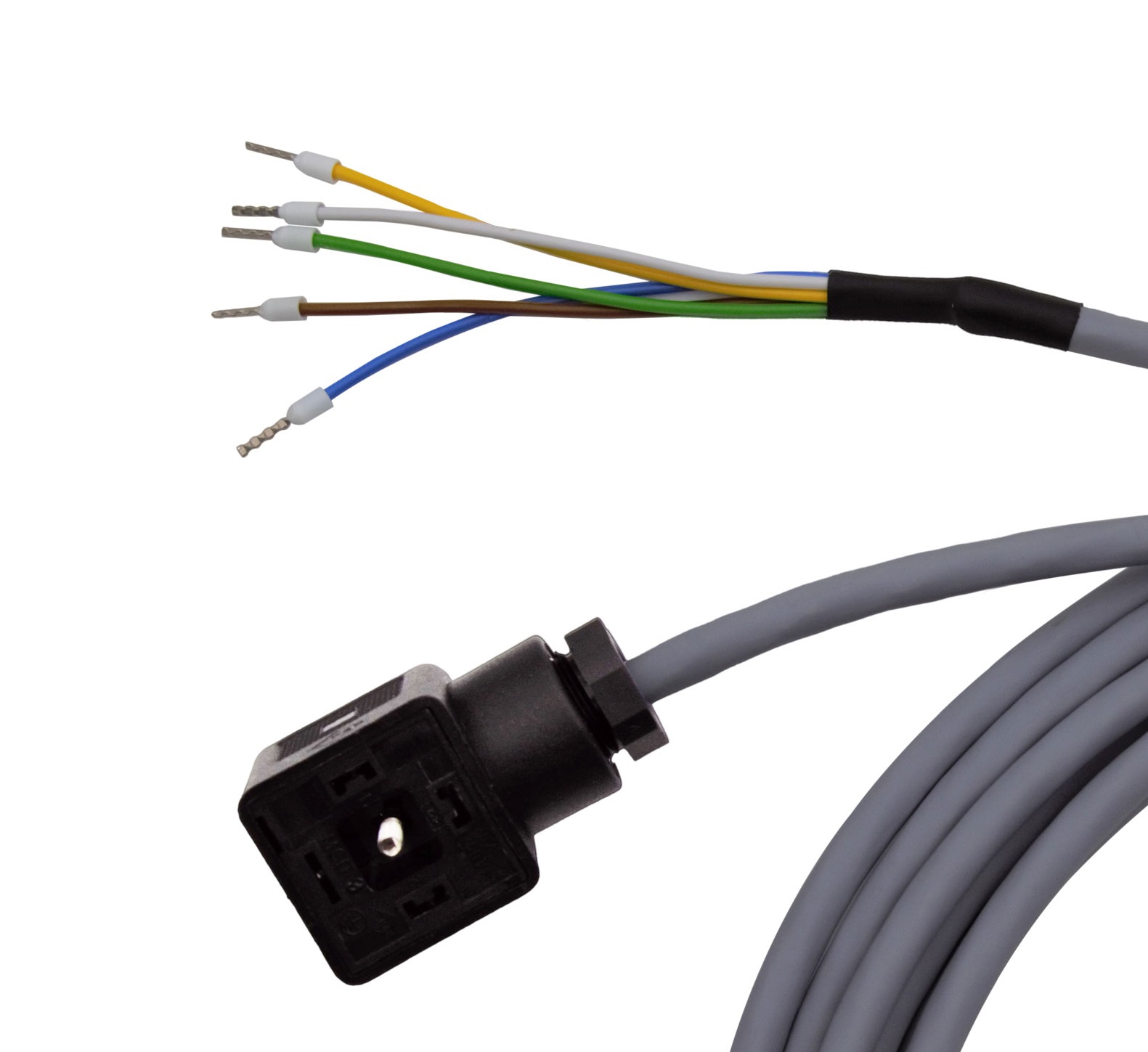

- 1 side connected to solenoid valve connector without seal ("Plug and Play", as plug only has to be plugged onto measuring cell)

- 1 side labelled cable with wire end ferrules

white: PT100

brown: PT100

yellow: Measuring cell SL

green: Measuring cell

blue: shielding

Dimensions

Height	3 cm
Length	20 cm
Width	20 cm

Weight

Weight	220 g

Other attributes

Country of origin	EU
Customs tariff number	90279000

for use with the following measuring cells

N-LF1201 conductivity measuring cell C=0.1 with PT100, 1/2 inch screw-in cell and solenoid valve connector

Product number: 880576

measuring range: 0-10 / 0-20 / 0-100 / 0-200 µS/cm (K= 0,1) | screw-in cel: 1/2"

Technical data: Screw-in thread: 1/2 "Material housing: POM black Material electrodes: V4A 4571 Material O-ring: EPDM Cell constant: C=0.1 +/- 10%. Max. Operating pressure: 6 bar Max. Operating temperature: 60°C Temperature sensor: PT100 Solenoid valve connector: ST2+SL electrodes Colour cable green/yellow St1+St2 PT 100 Colour cable brown/white

€123.00*

Details

N-LF1210 conductivity measuring cell C=1.0 with PT100, 1/2 inch screw-in cell and solenoid valve connector

Product number: 880577

measuring range: 0-1000 / 0-2000 µS/cm ( K= 1,0) | screw-in cel: 1/2"

Technical data: Screw-in thread: 1/2 "Material housing: POM black Material electrodes: V4A 4571 Material O-ring: EPDM Cell constant: C=1.0 +/- 10%. Max. Operating pressure: 6 bar Max. Operating temperature: 60°C Temperature sensor: PT100 Solenoid valve connector: ST2+SL electrodes Colour cable green/yellow St1+St2 PT 100 Colour cable brown/white

€119.45*

Details

N-LF3401 conductivity measuring cell C=0.1 with PT100, 3/4 inch screw-in cell and solenoid valve connector

Product number: 880574

measuring range: 0-10 / 0-20 / 0-100 / 0-200 µS/cm (K= 0,1) | screw-in cel: 3/4"

Technical data: Screw-in thread: 3/4"Material housing: POM black Material electrodes: V4A 4571 Material O-ring: EPDM Cell constant: C=0.1 +/- 10%. Max. Operating pressure: 6 bar Max. Operating temperature: 60°C Temperature sensor: PT100 Solenoid valve connector: ST2+SL electrodes Colour cable green/yellow St1+St2 PT 100 Colour cable brown/white

€117.75*

Details

N-LF3410 conductivity measuring cell C=1.0 with PT100, 3/4 inch screw-in cell and solenoid valve connector

Product number: 880575

measuring range: 0-1000 / 0-2000 µS/cm ( K= 1,0) | screw-in cel: 3/4"

Technical data: Screw-in thread: 3/4"Material housing: POM black Material electrodes: V4A 4571 Material O-ring: EPDM Cell constant: C=1.0 +/- 10%. Max. Operating pressure: 6 bar Max. Operating temperature: 60°C Temperature sensor: PT100 Solenoid valve connector: ST2+SL electrodes Colour cable green/yellow St1+St2 PT 100 Colour cable brown/white

€117.75*

Details
